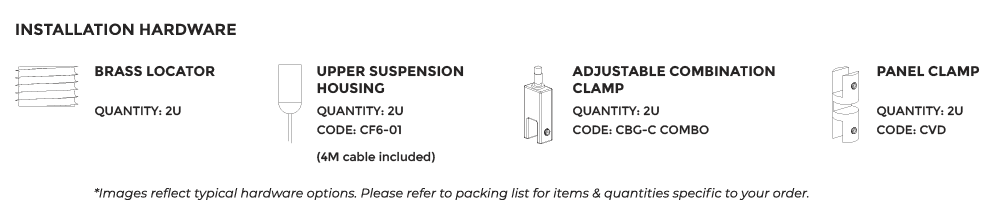

Adaptiveness is the key for success in modern work-space design. Helping you to achieve the best, Ezobord Work Zone Dividers can easily be installed, re-positioned and suspended with optional hardware to shape any space for frequently changing use scenarios.Work Zone Dividers can be manufactured with different patterns, colors and printed team branding.
Standard Shapes – Tier A

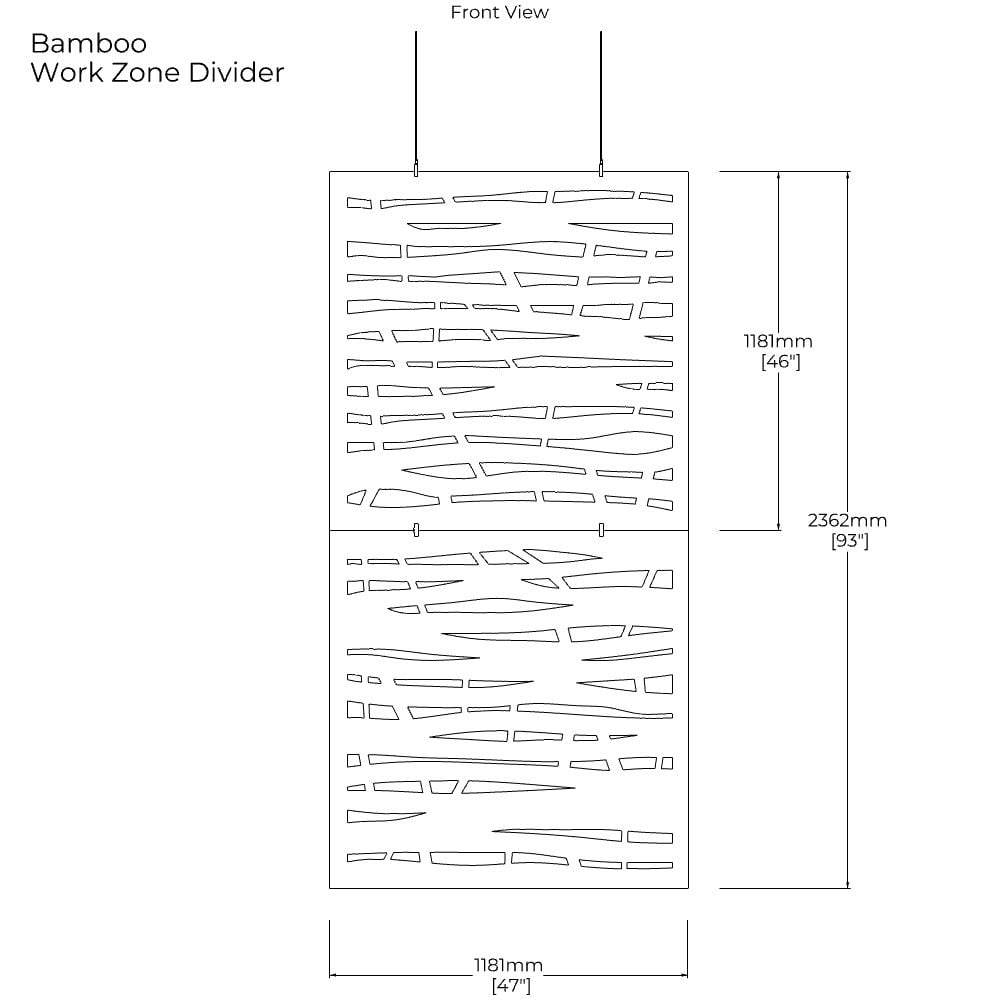

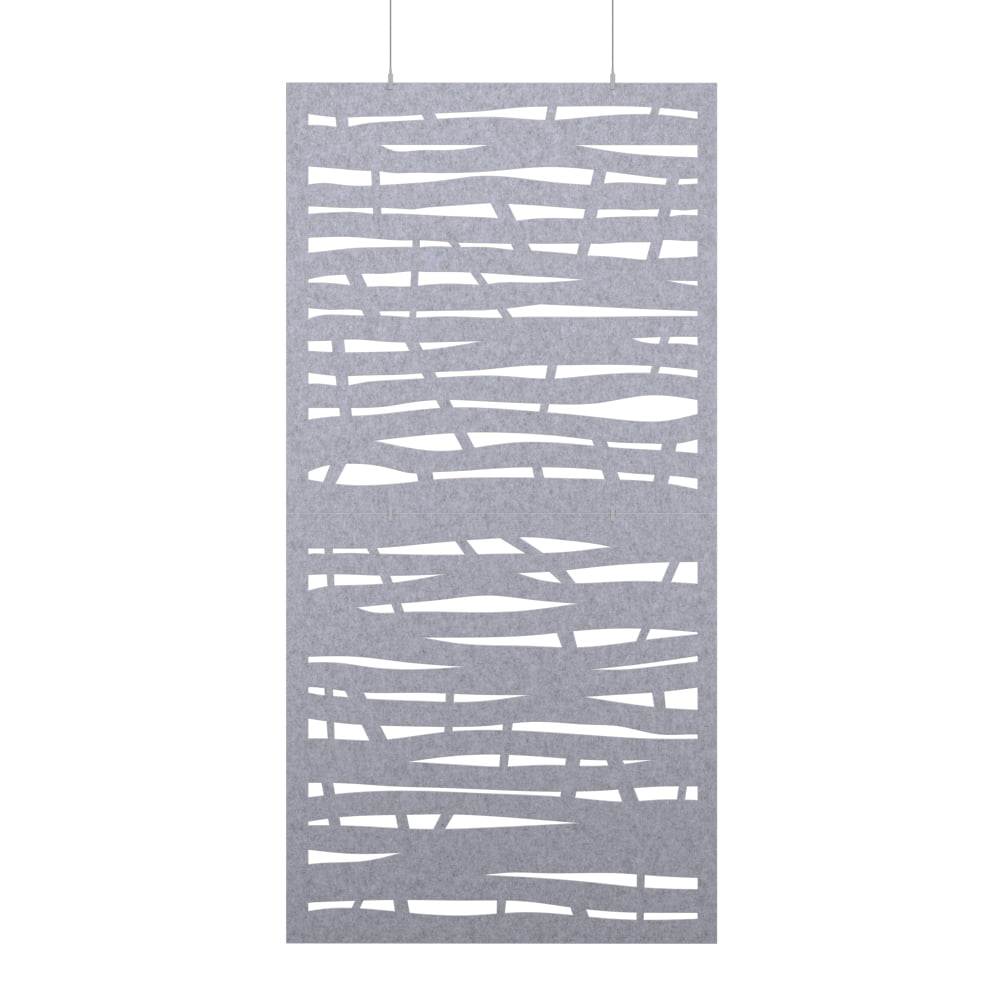

BAMBOO
BUBBLE

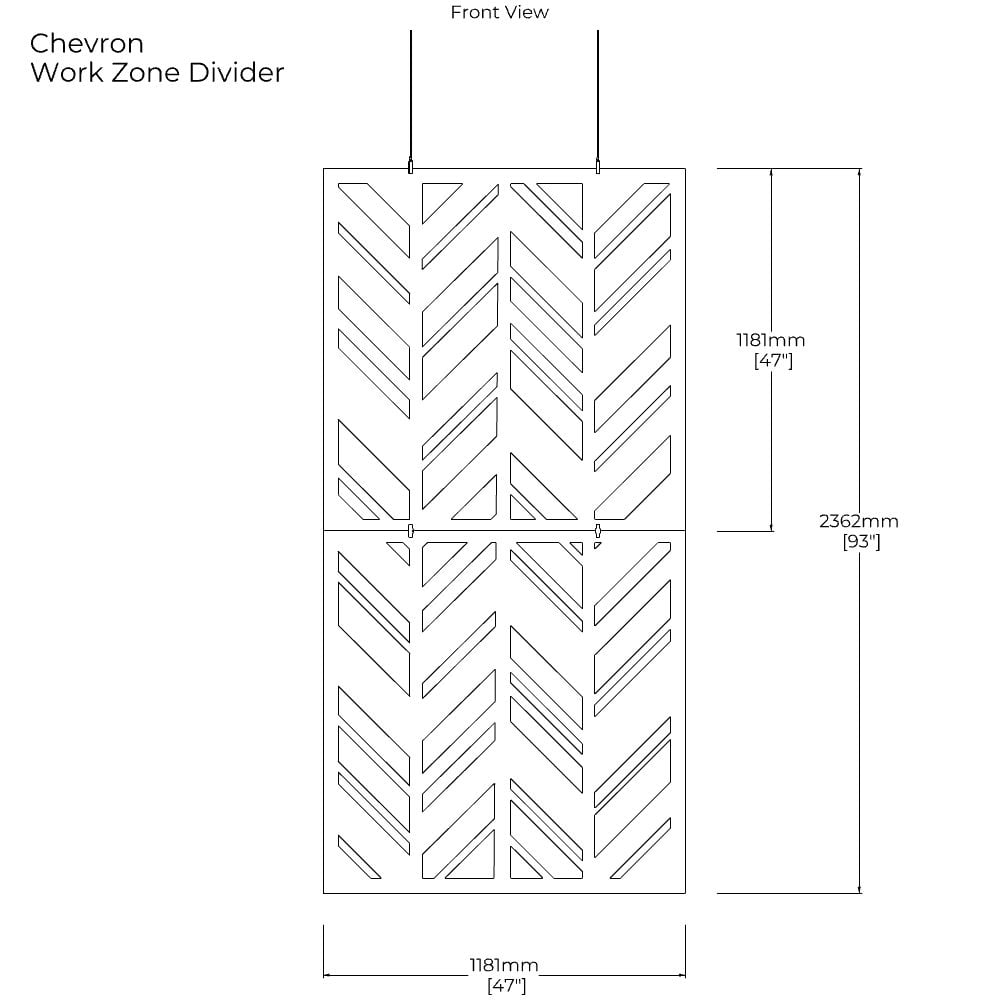

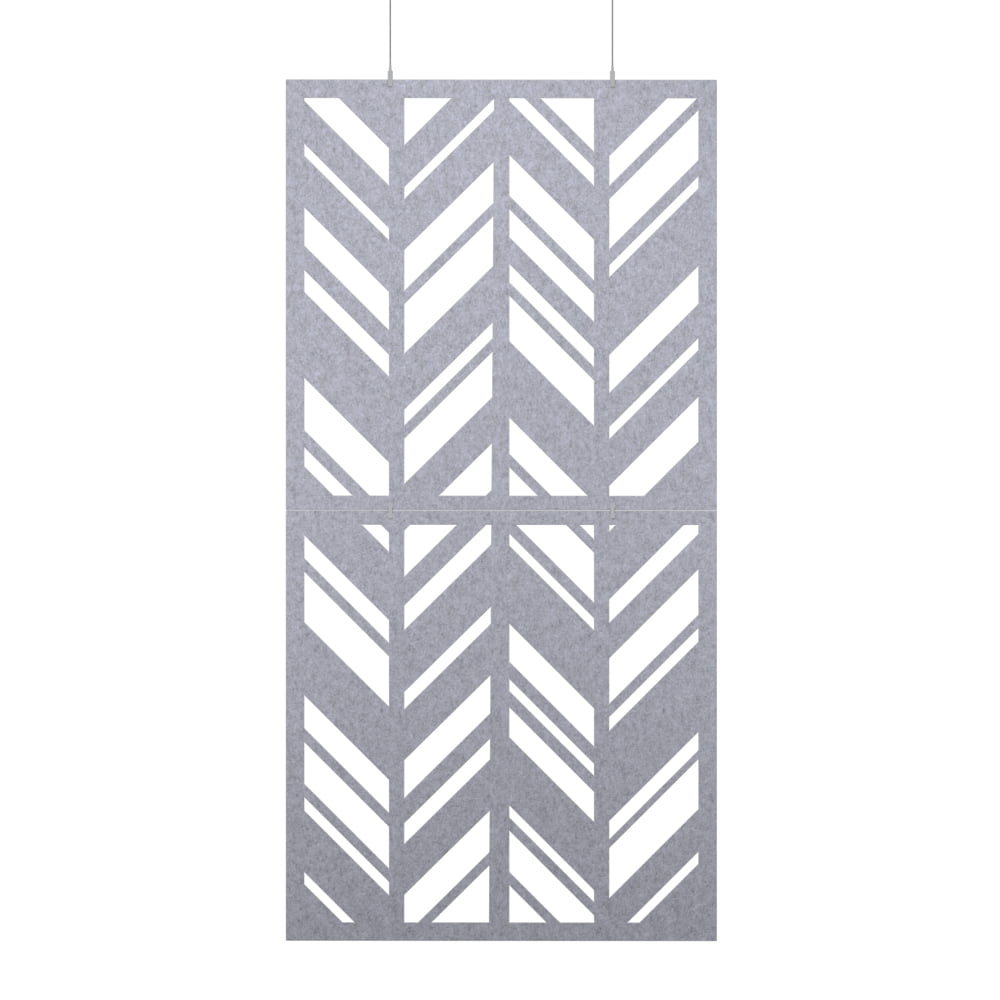

CHEVRON

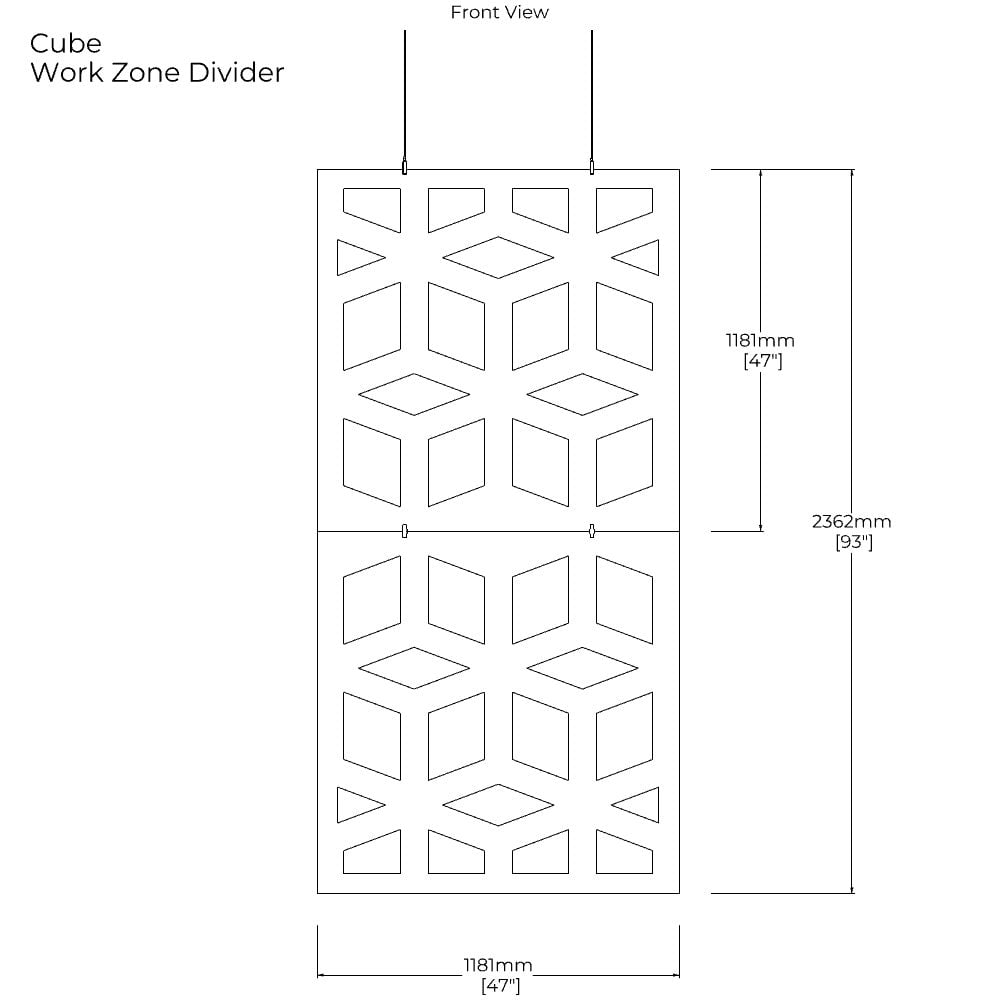

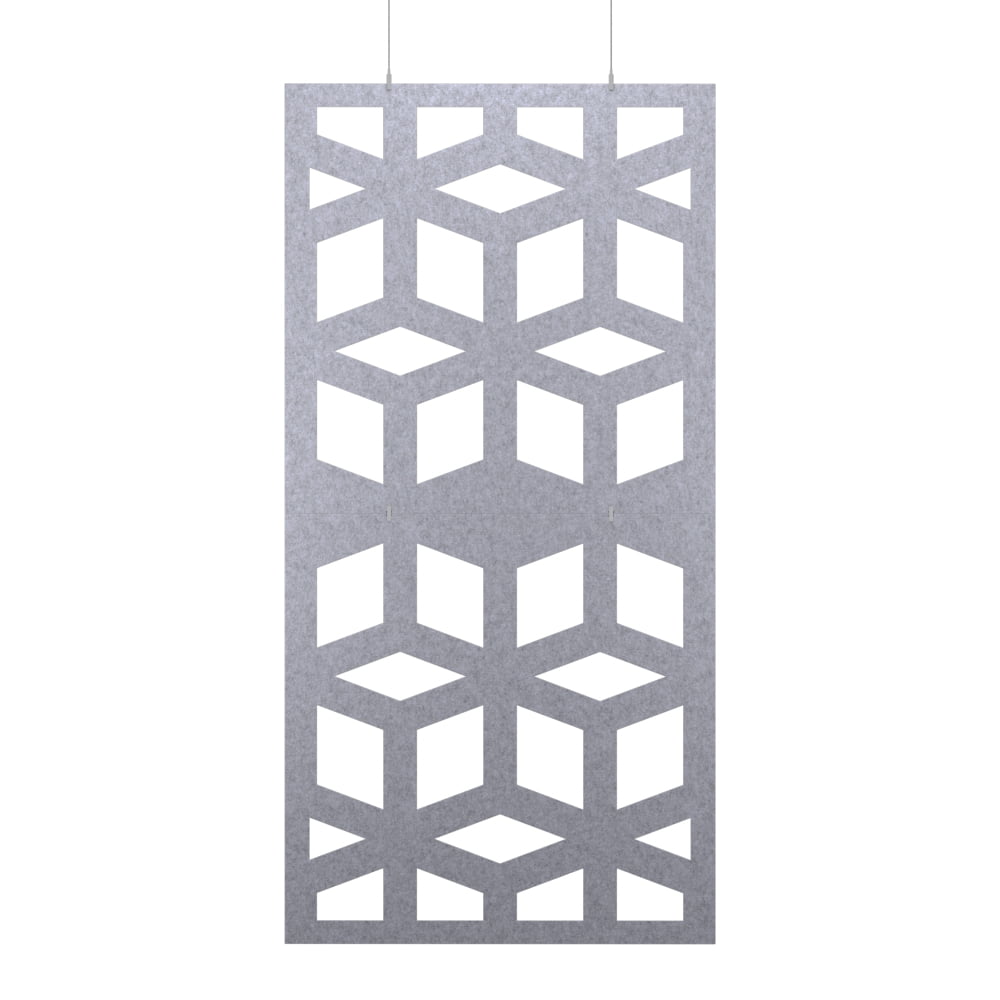

CUBE
DAIRE

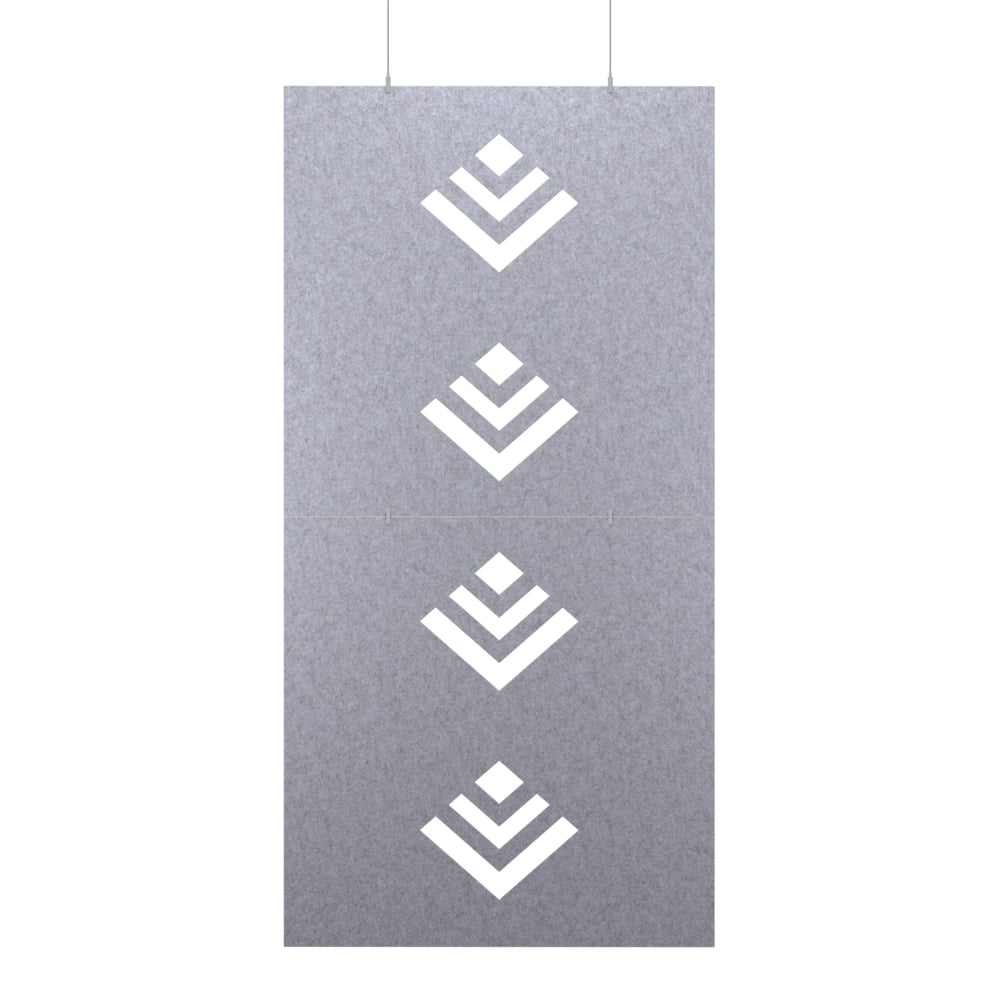

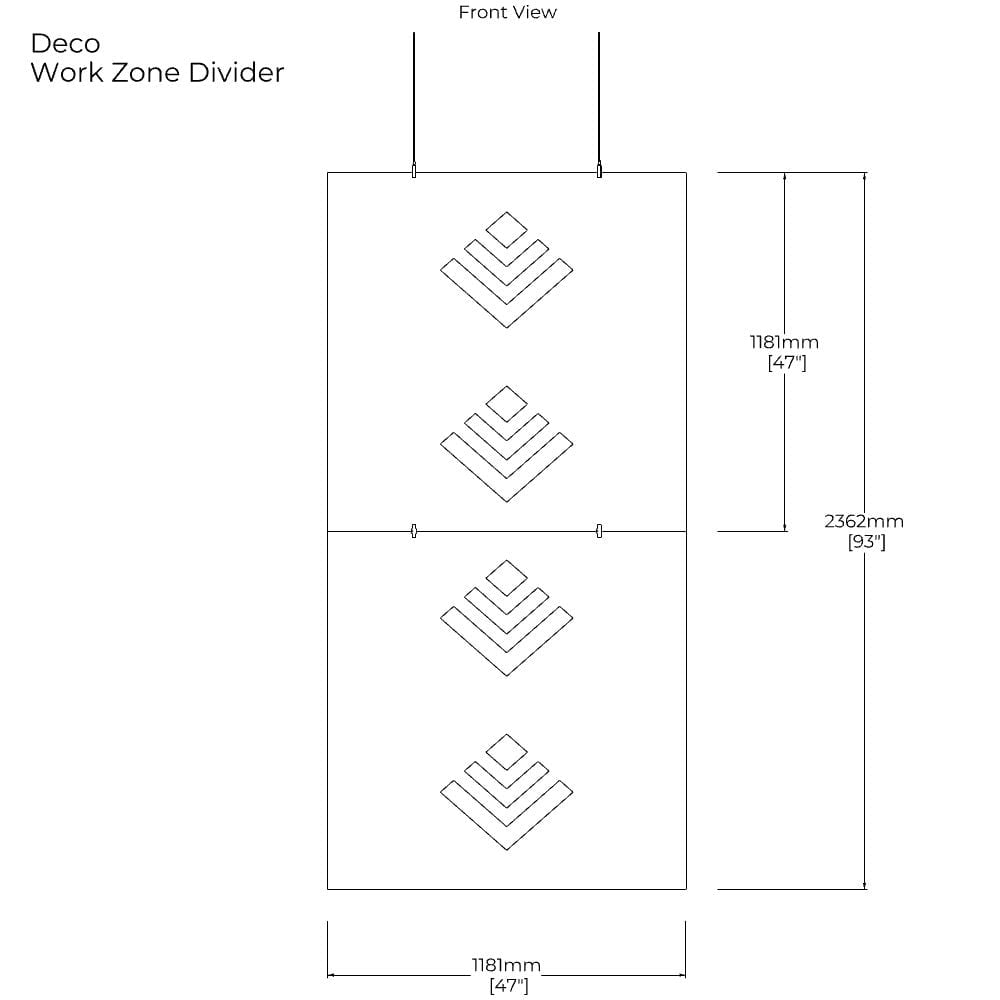

DECO

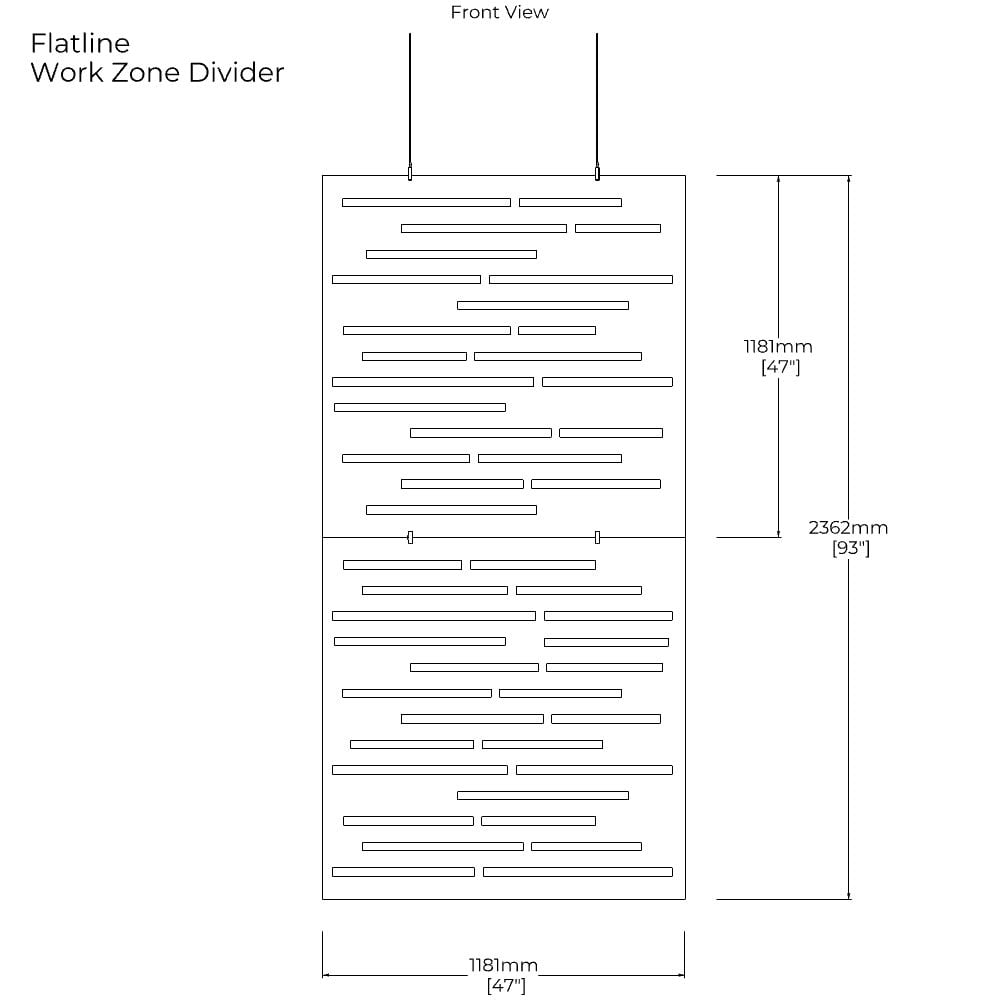

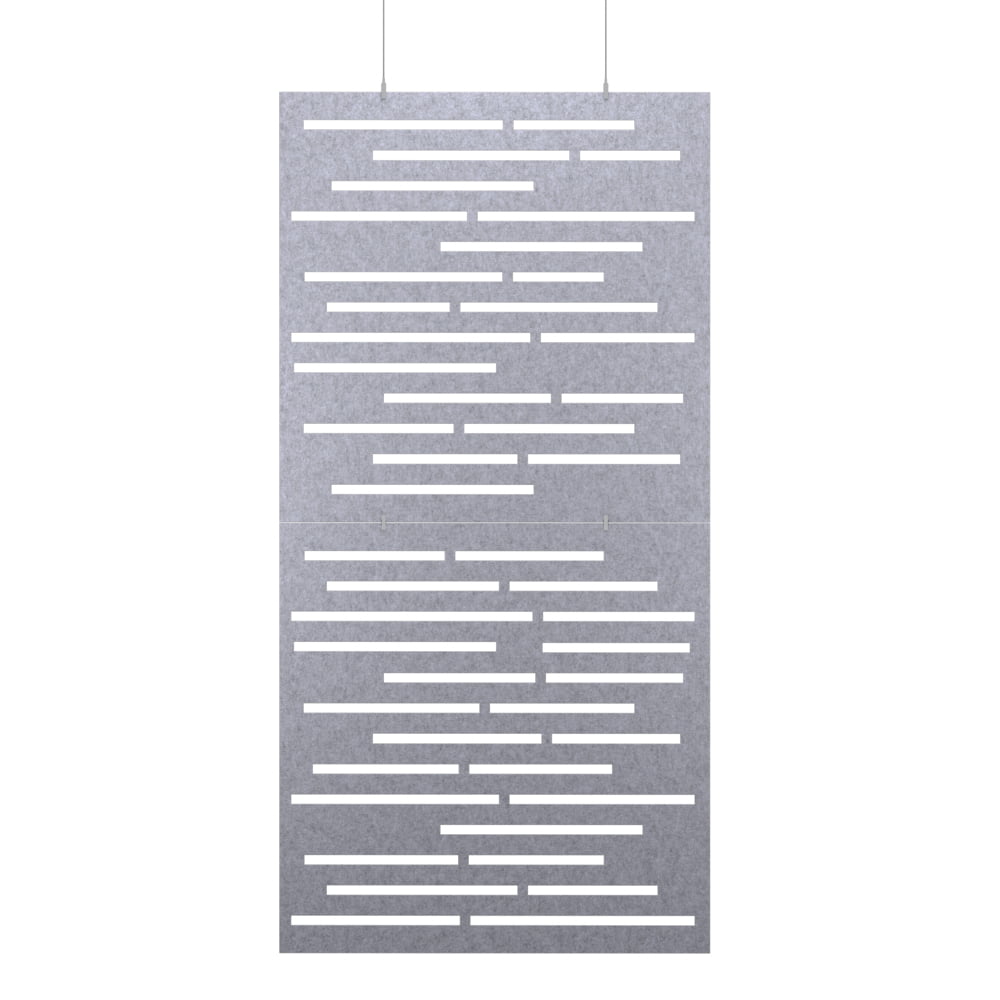

FLATLINE

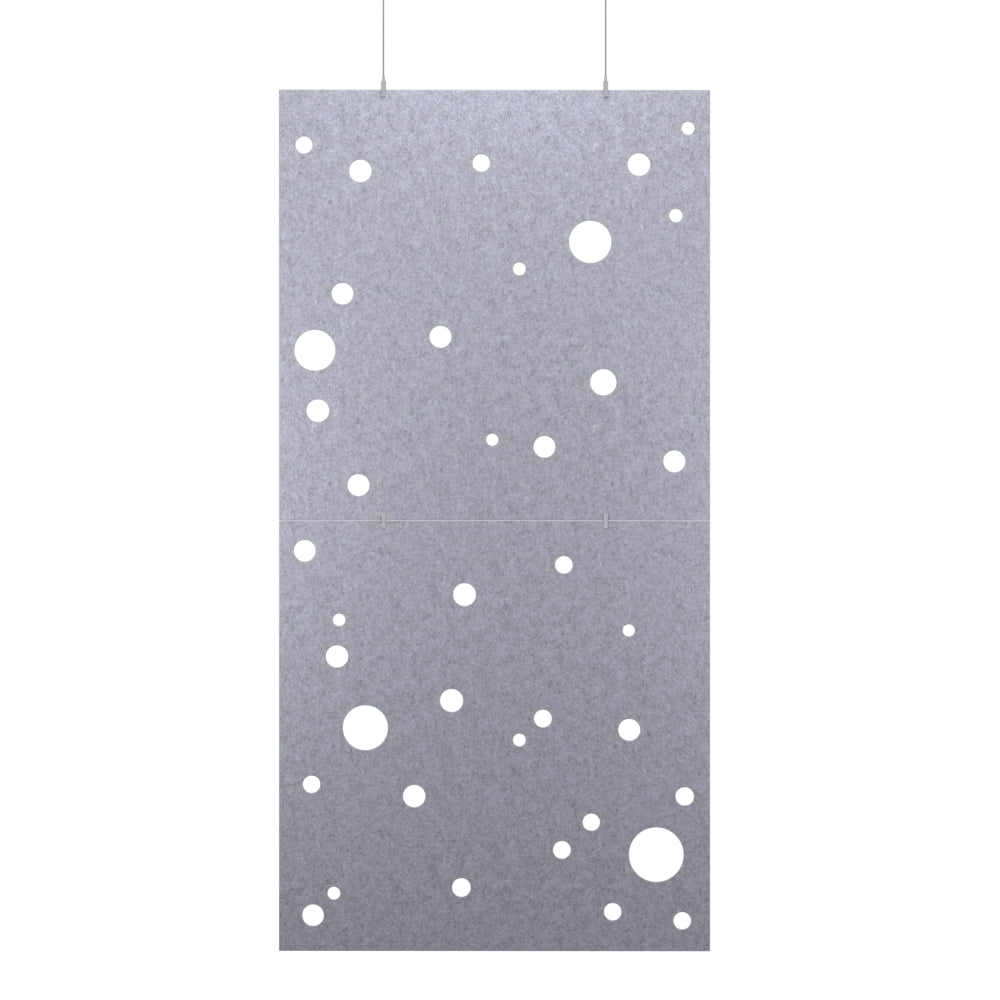

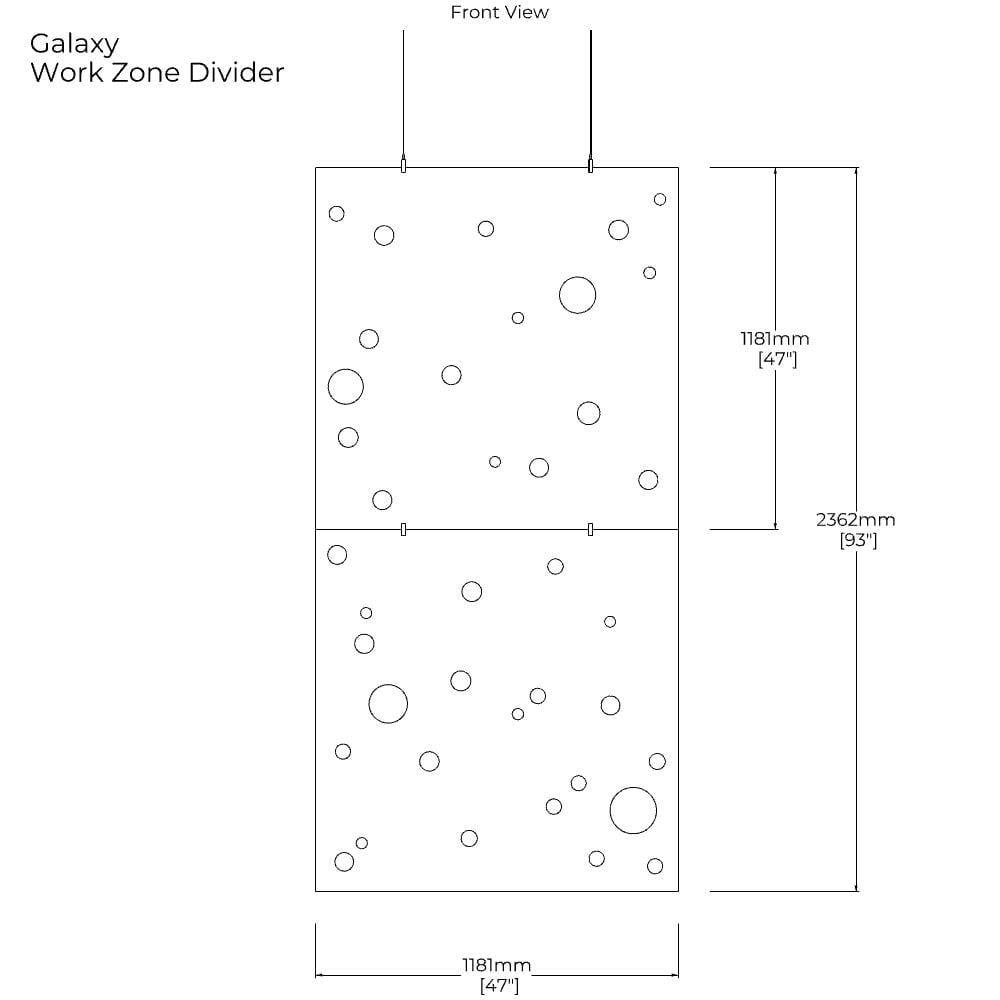

GALAXY

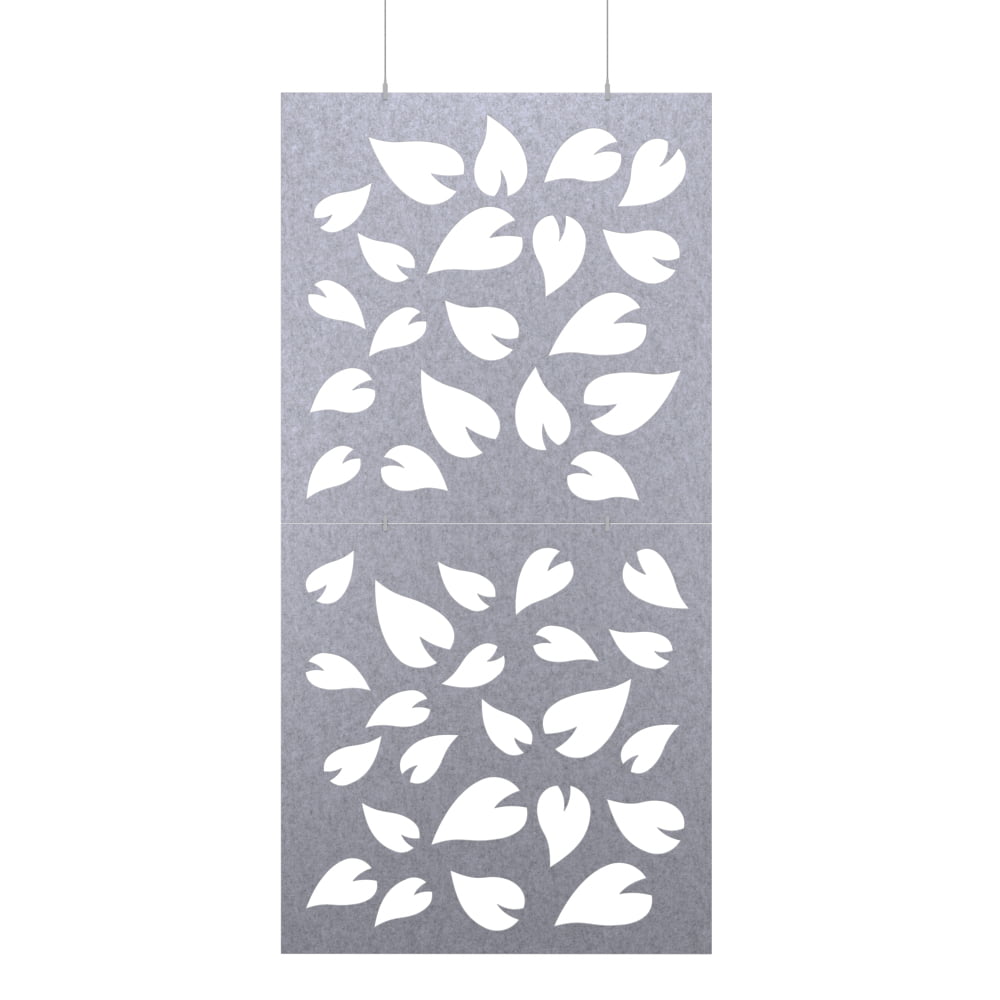

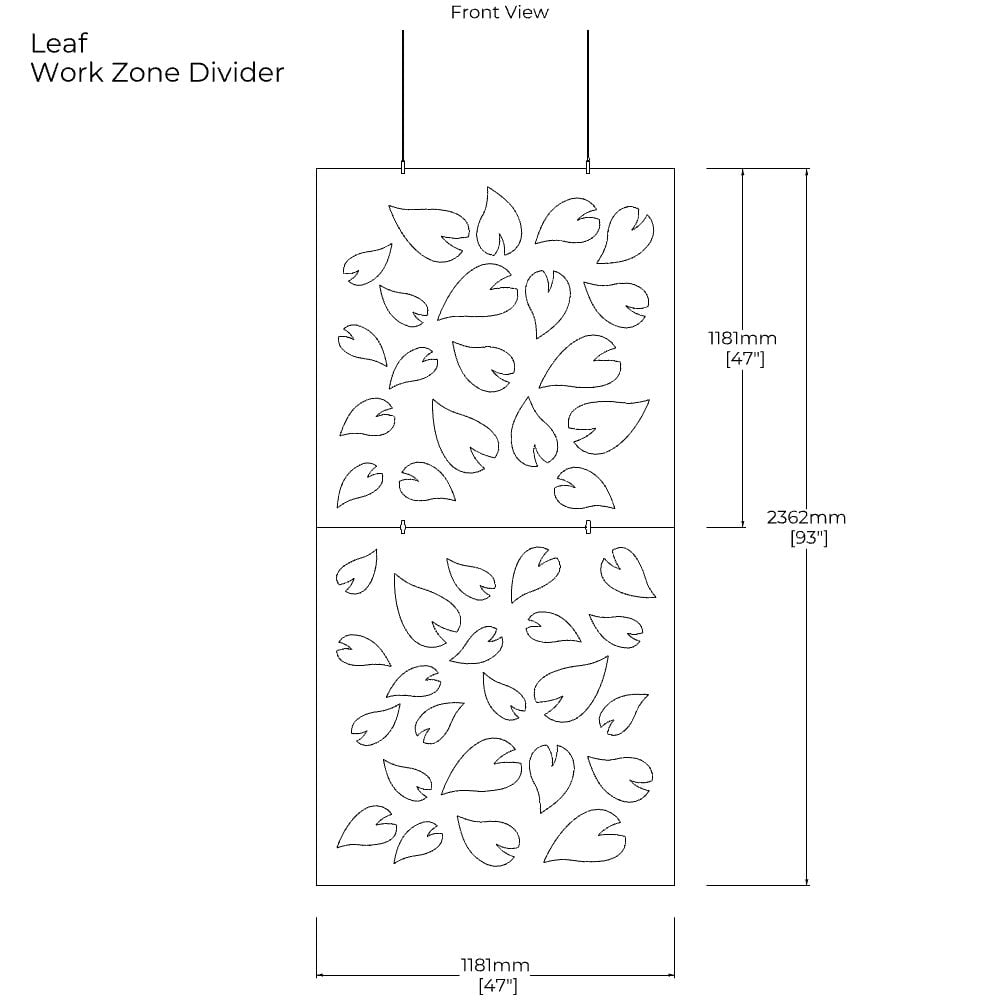

LEAF
Standard Shapes – Tier B

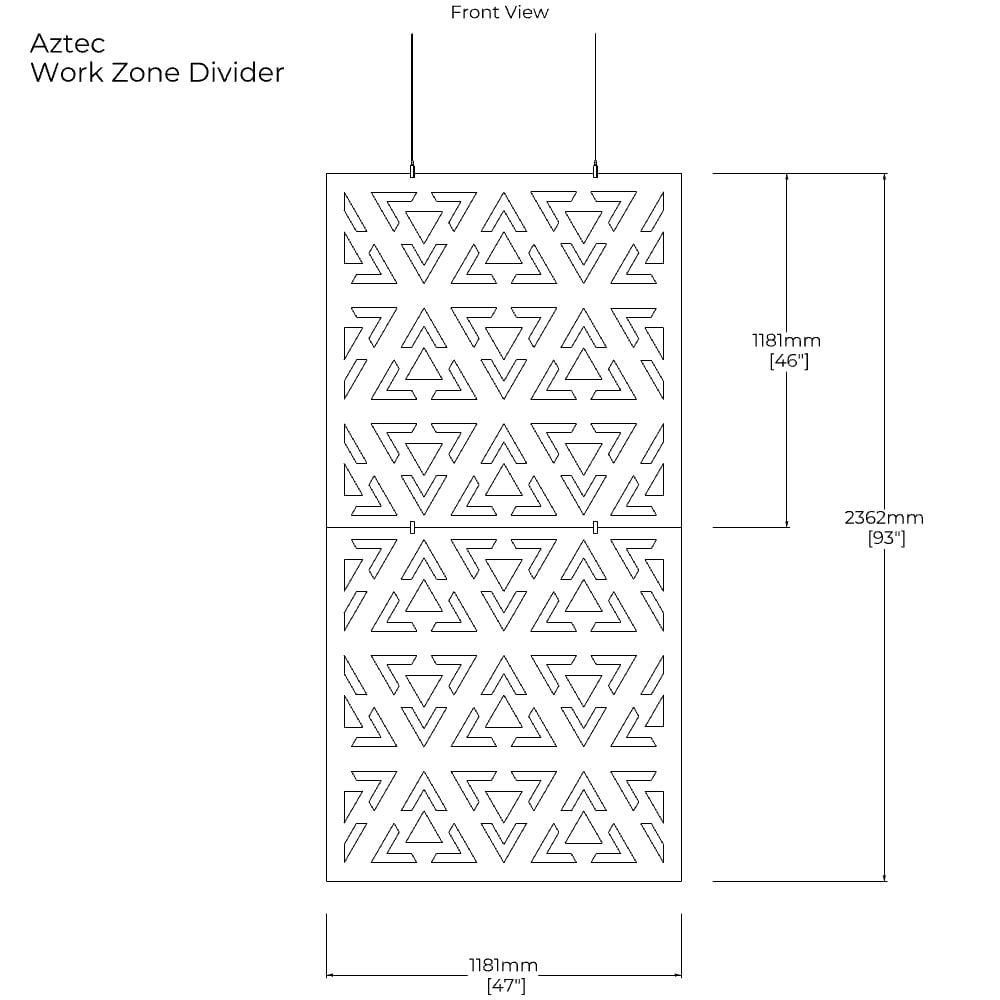

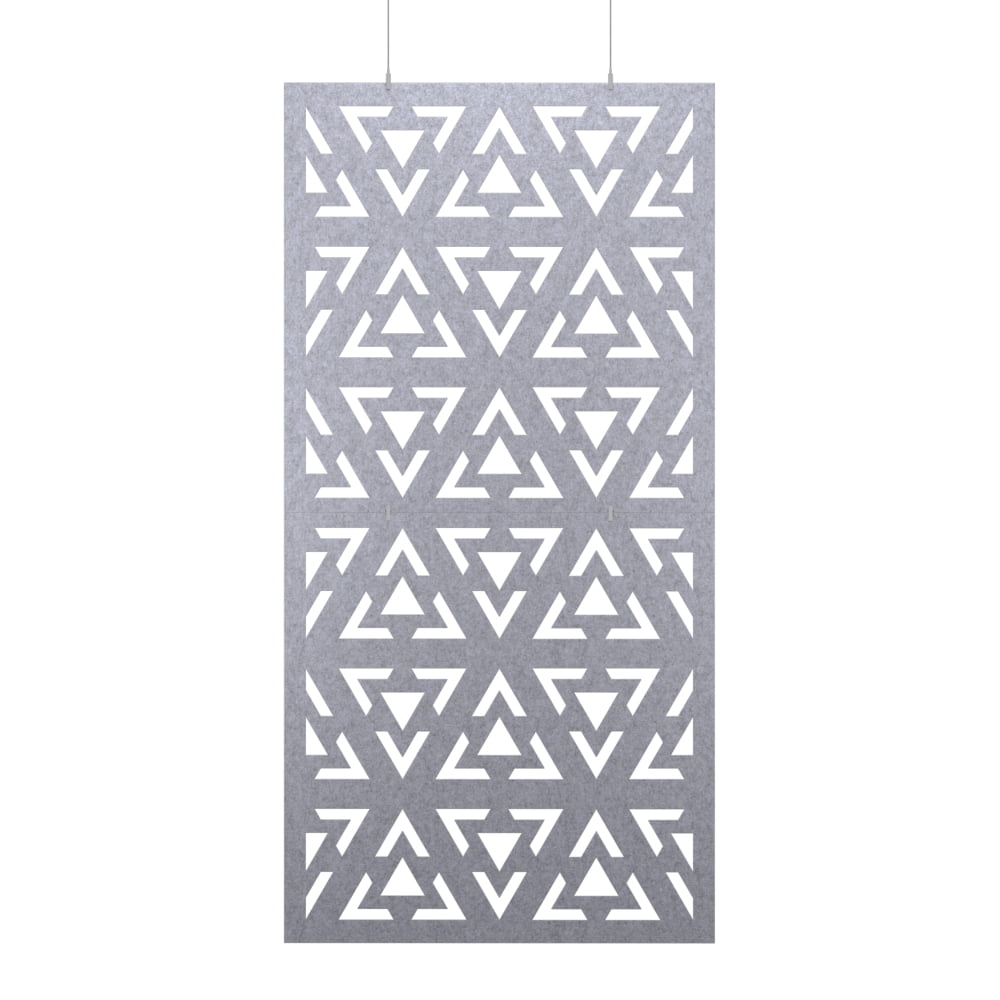

AZTEC
CIRCLES

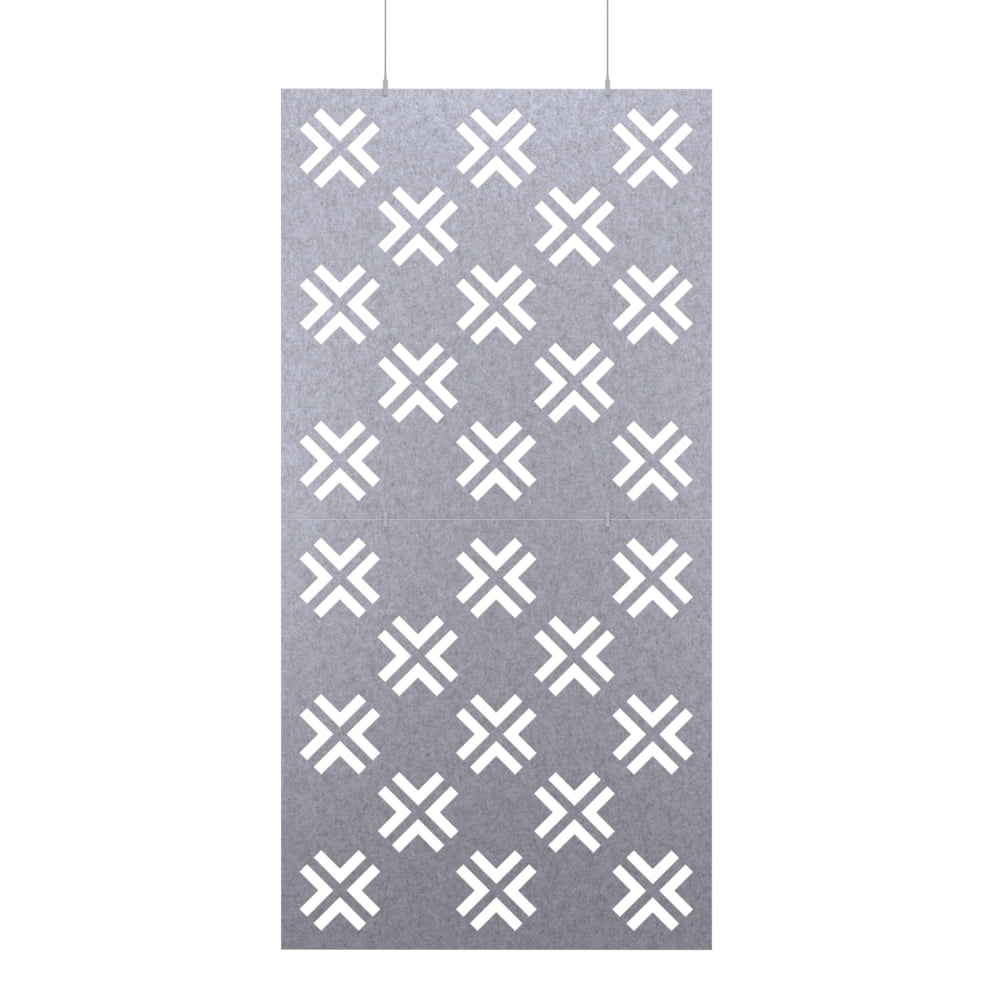

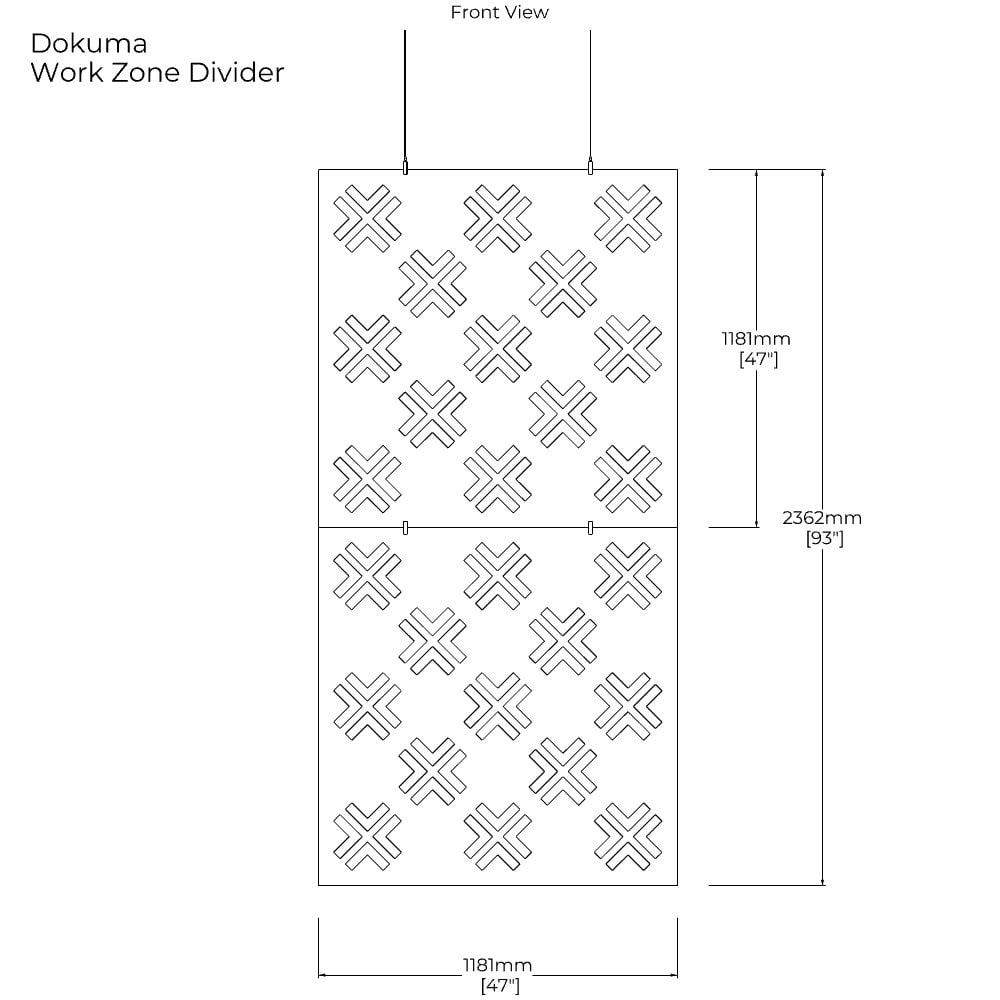

DOKUMA

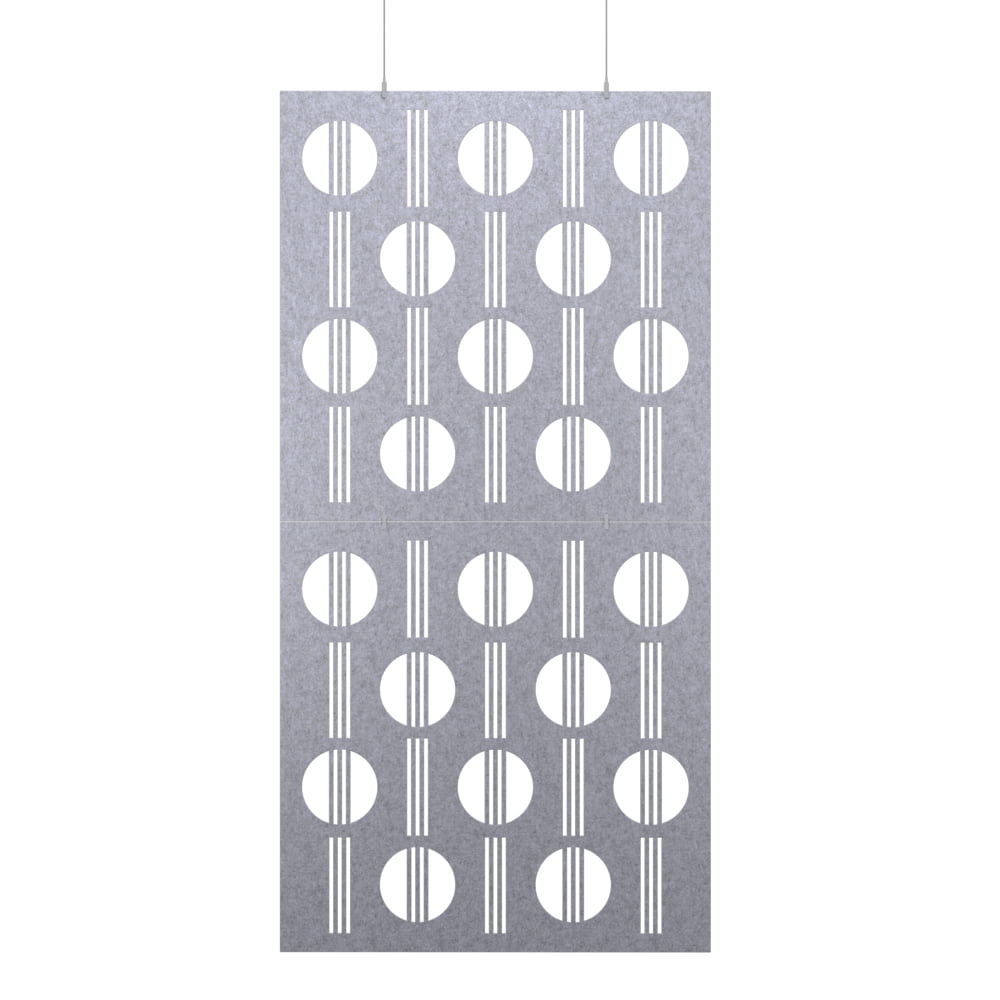

KESIK

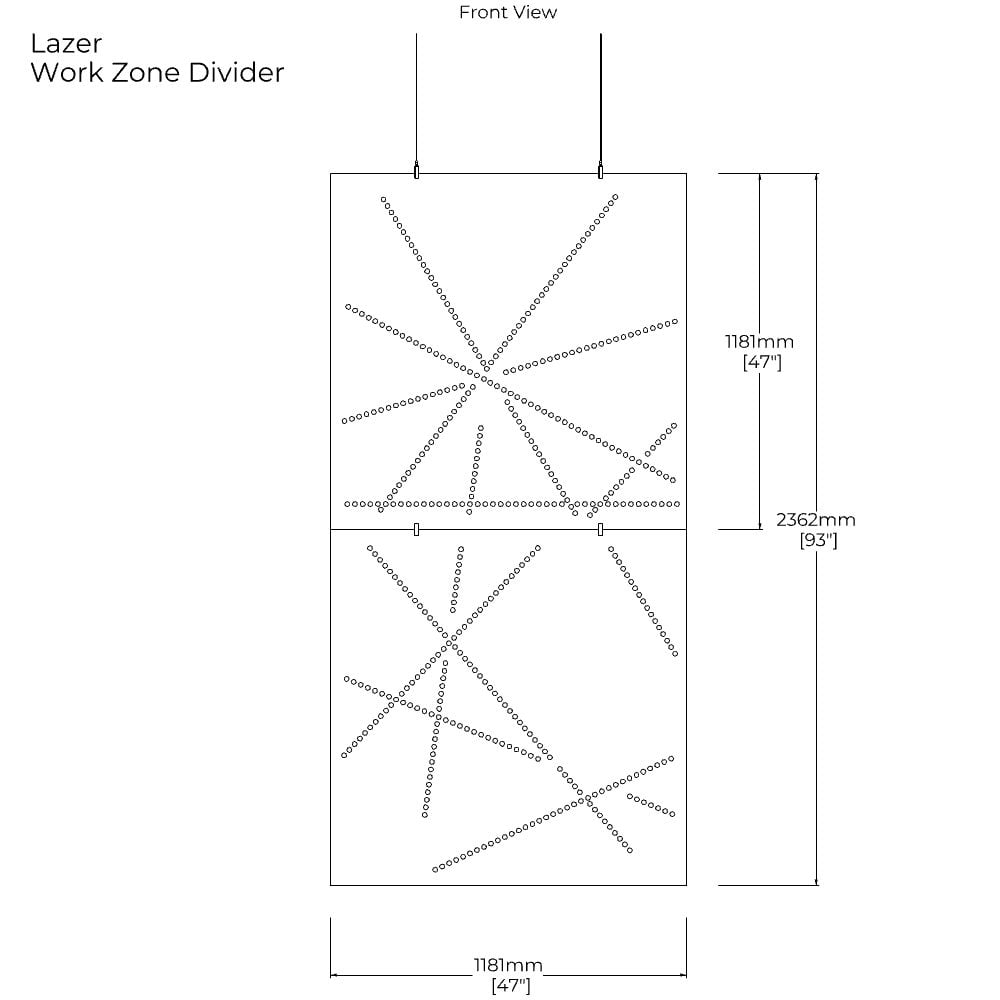

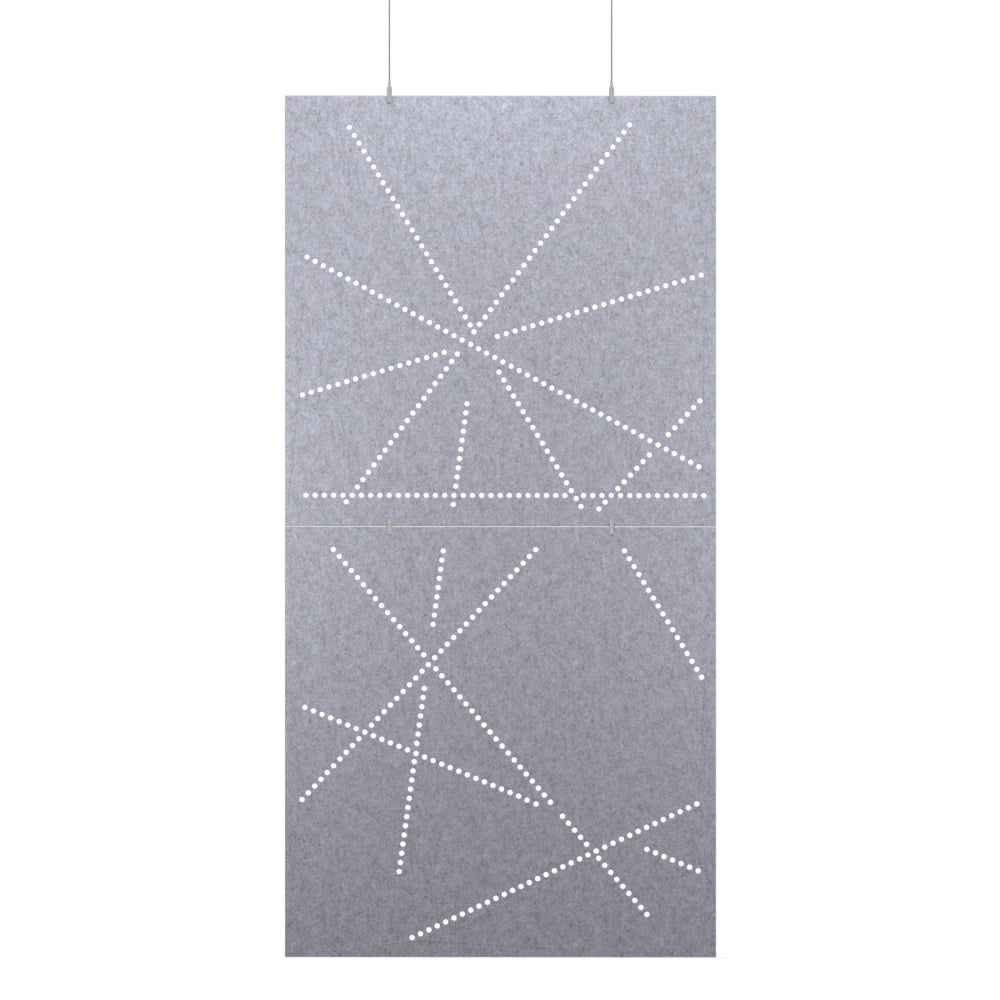

LAZER

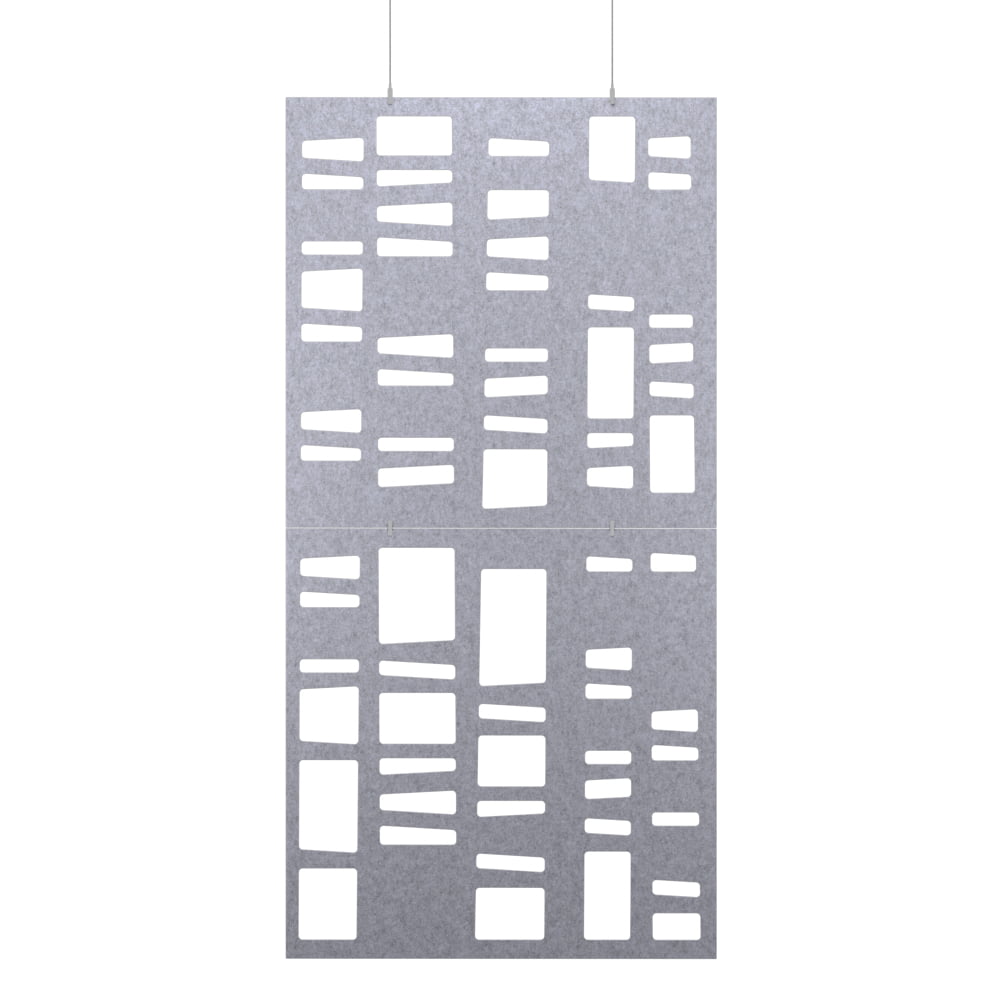

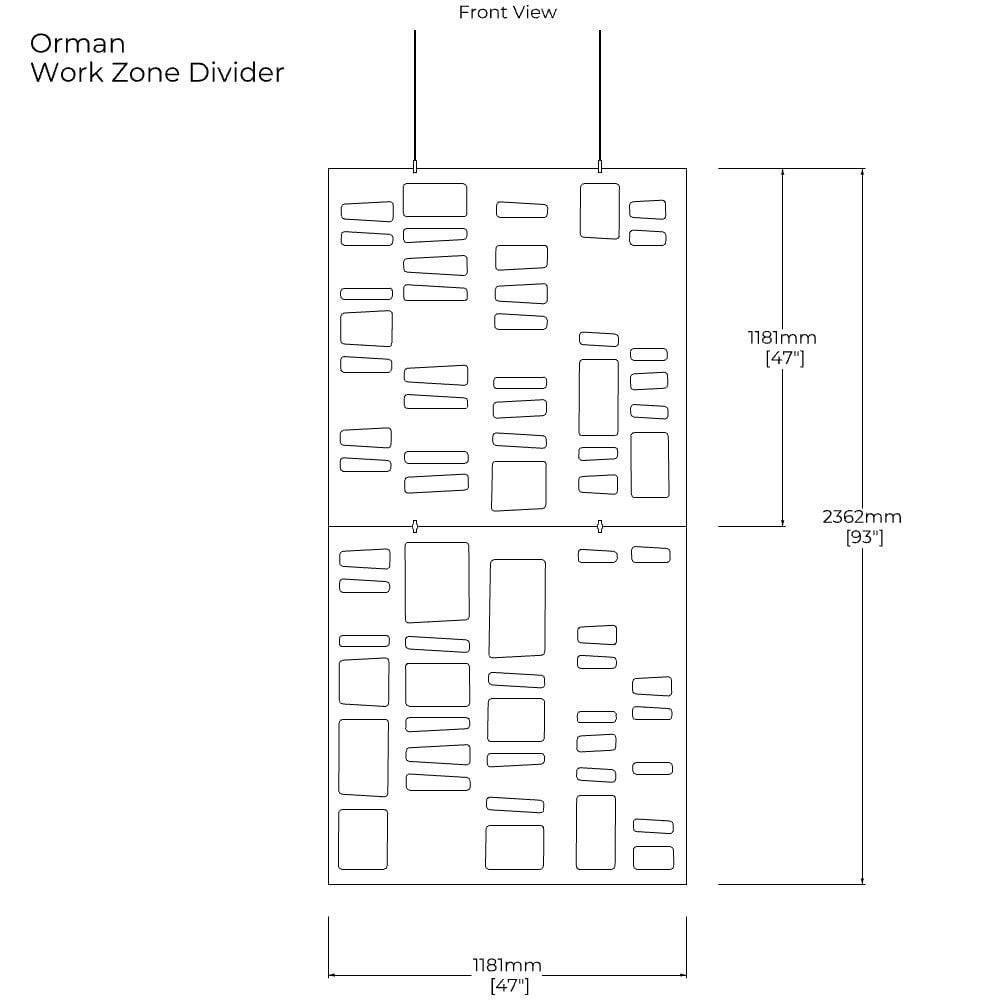

ORMAN
PALM

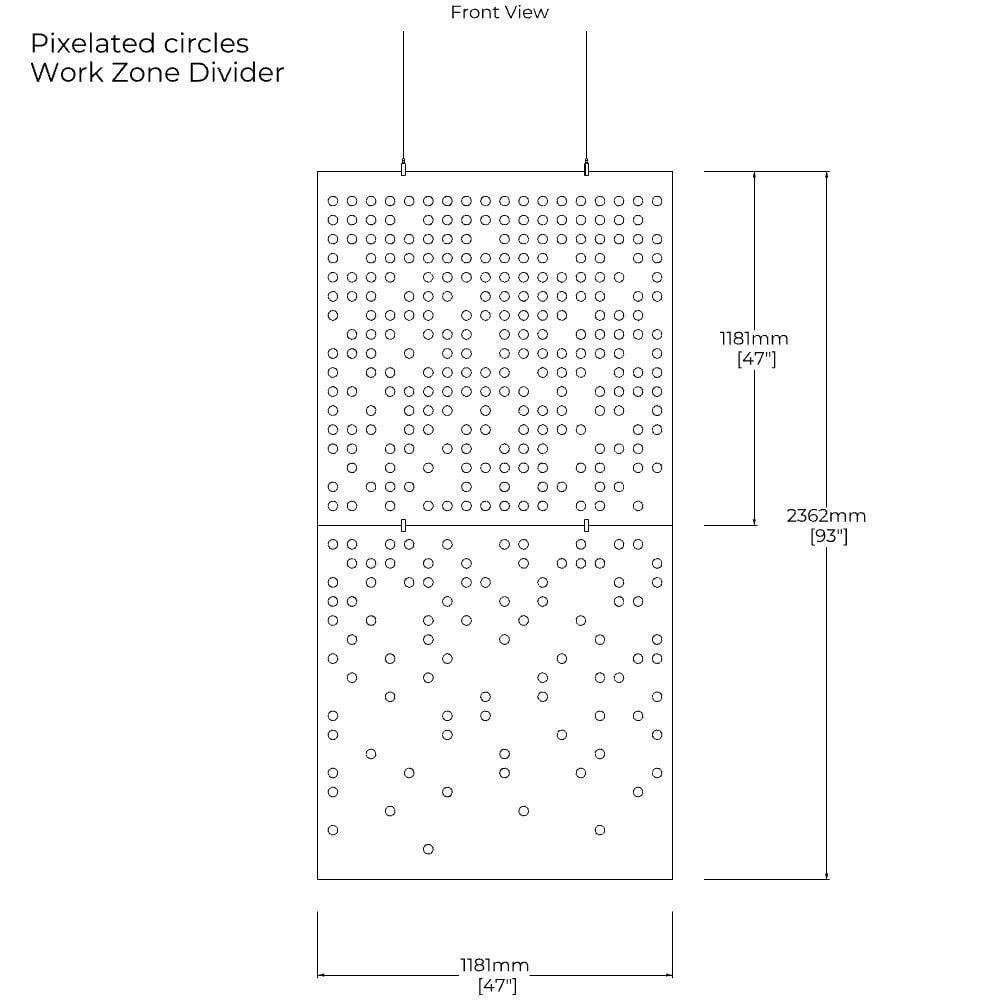

PIXELATED CIRCLES

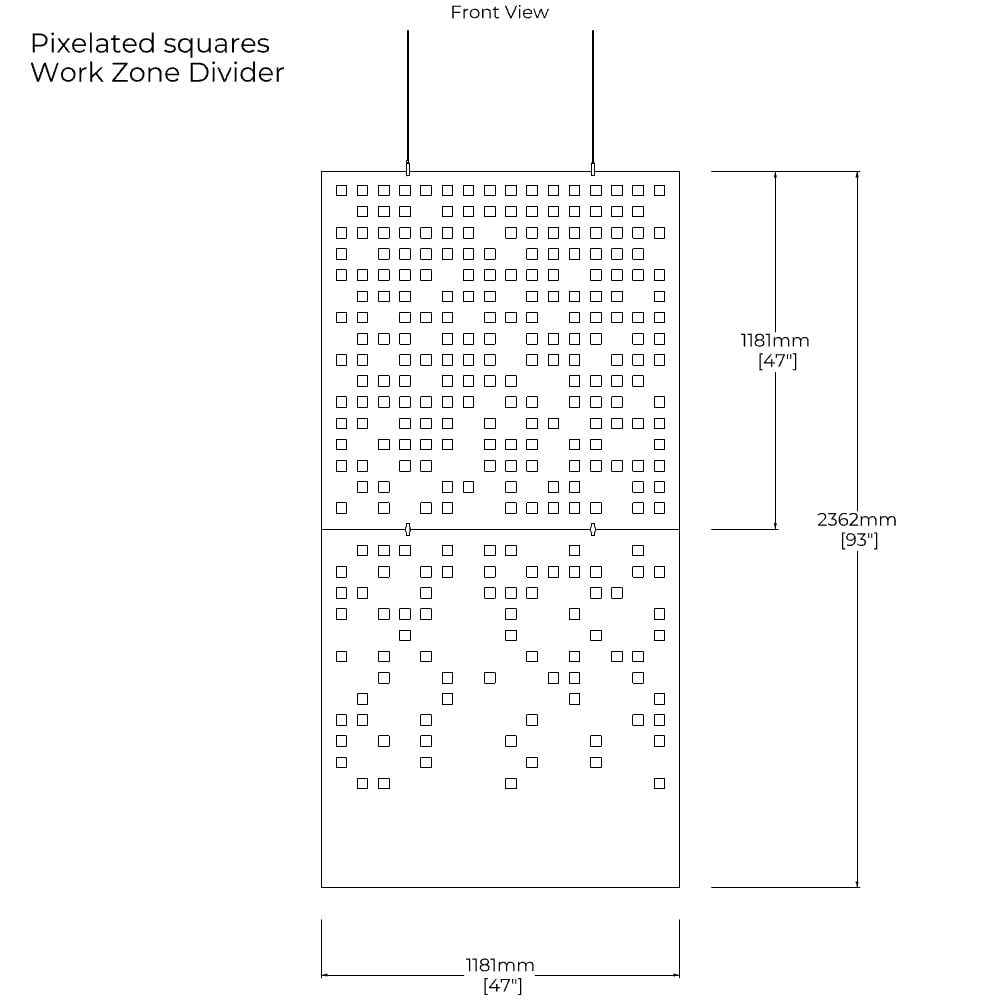

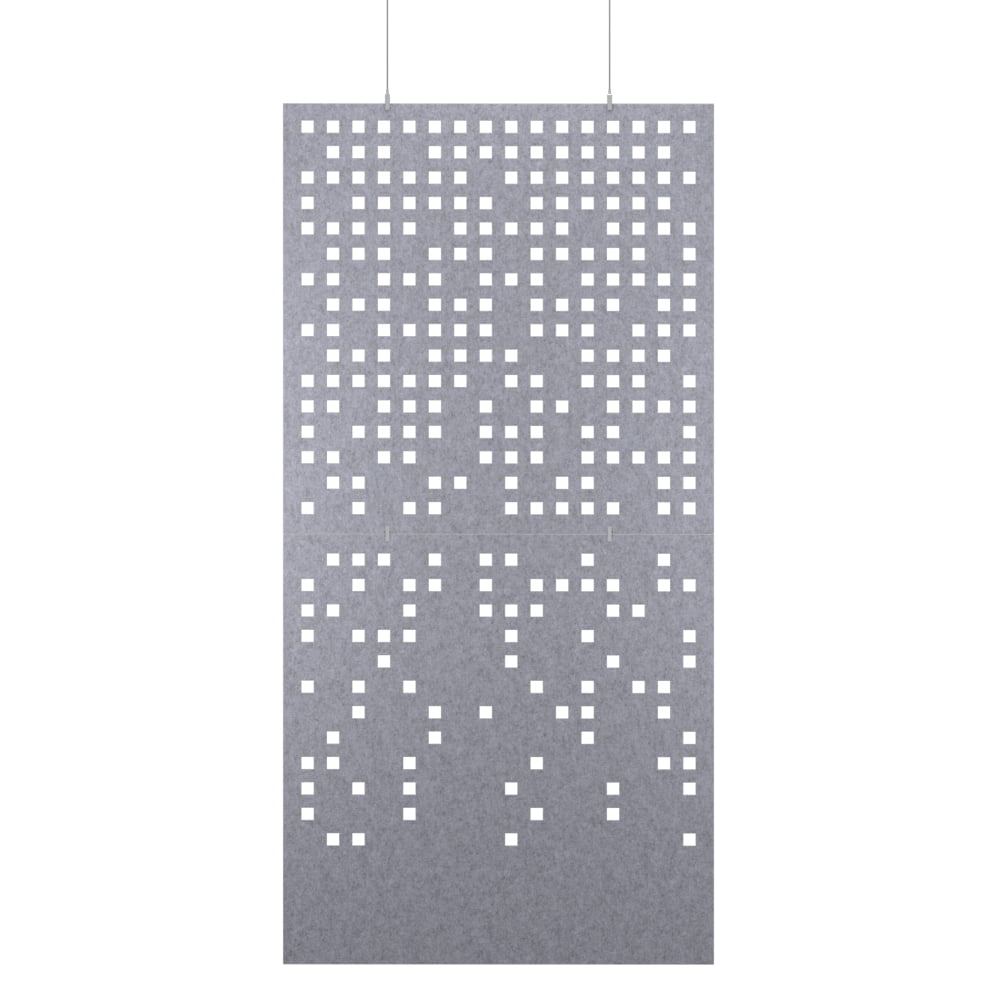

PIXELATED SQUARES
RECTANGULAR UNDULATION
SQUARES
Specifications
- Available in 30 standard color combinations

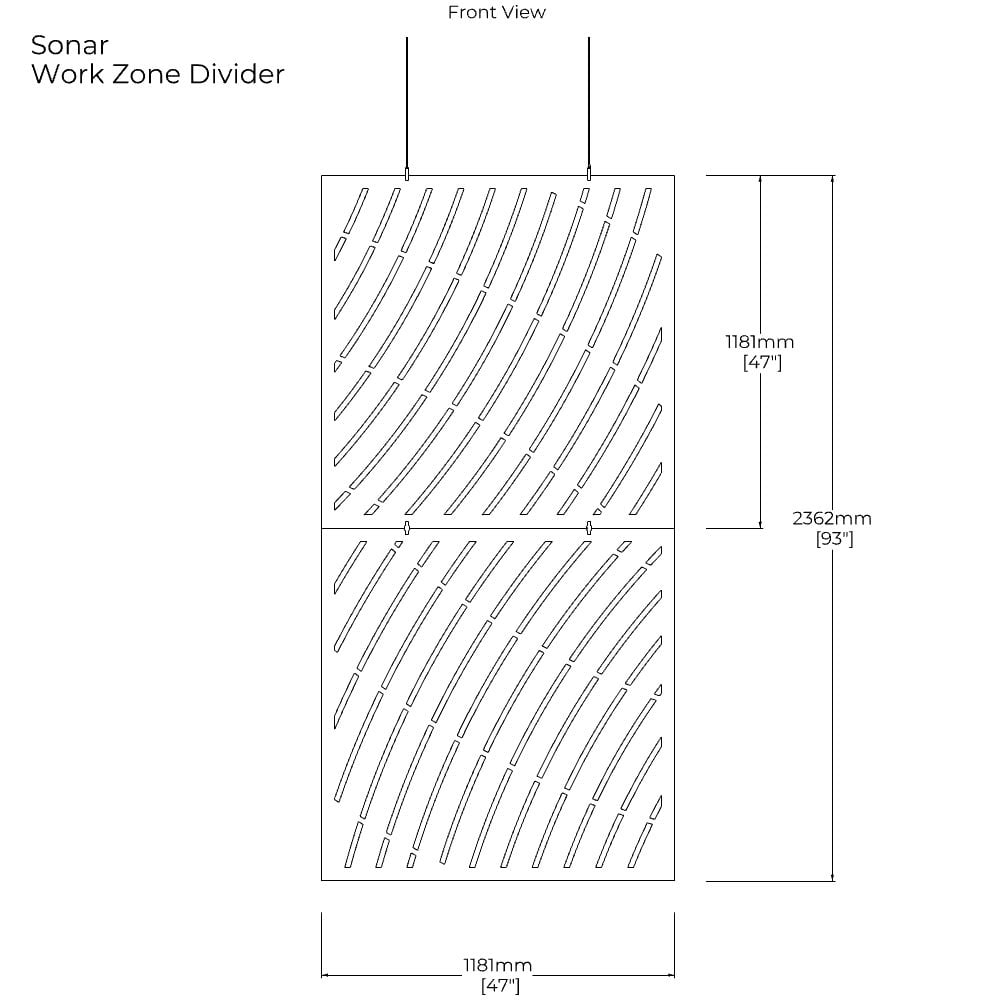

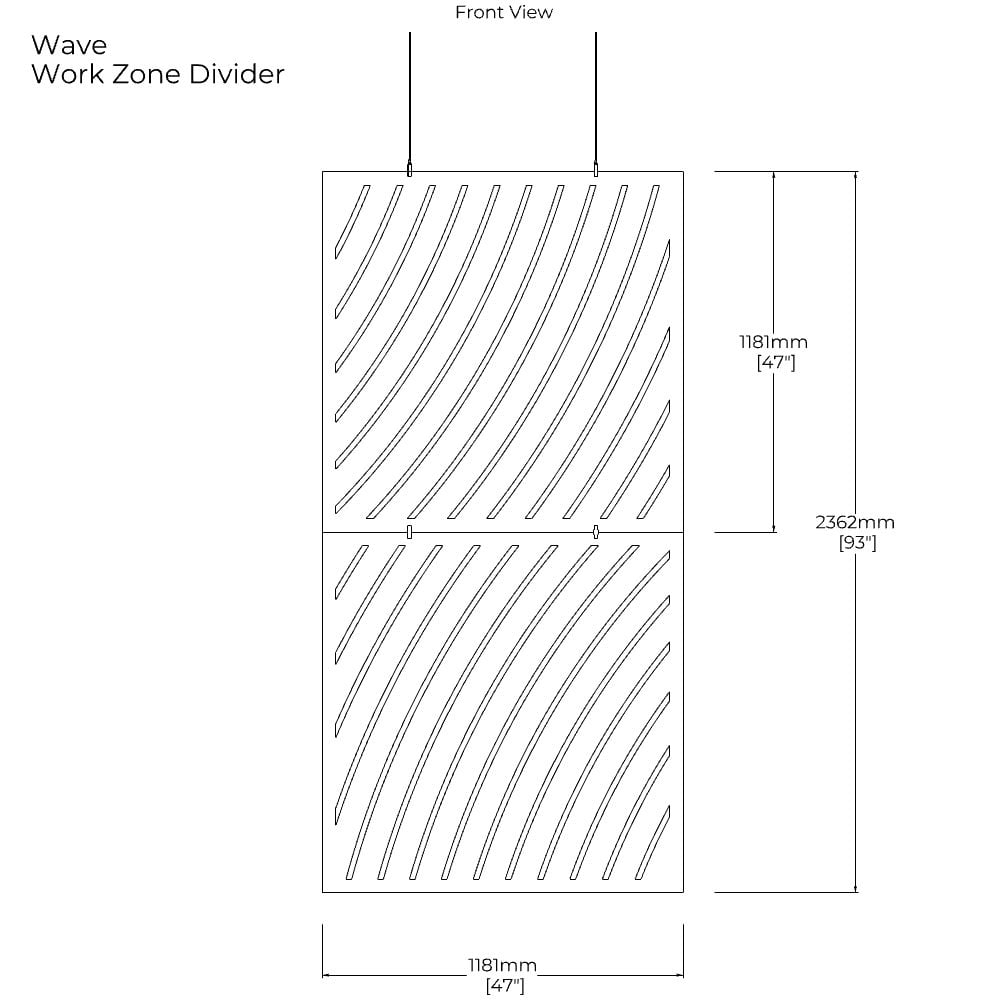

- Standard size W: 47.5″ (1207mm) H: 95″ (2413mm)
- 3/8″ (9mm) and 1/2″ (12mm) thick
- Superior sound absorption characteristics (NRC: 0.80, SAA: 0.81, ASTM C423, 12mm material thickness)
- Made from 100% polyester, approximately 50% of which is recycled water/soda bottles
- Manufactured without use of formaldehydes, adhesives or other bonding agents
- No volatile organic compounds (VOCs)
- Flame spread and smoke development test data available: ASTM E84 (Class A or Class 1) CAN/ULC S102 (FSR:20, SDC:325), EN ISO 13501-1 (b-s1, d0). EN ISO 11925-2 and EN 13823 compliant.
Sound Absorption Performance
Work Zone Divider 1/2" (12mm) | NRC: 0.80 | SAA: 0.81801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)
| FREQUENCY (HZ) |
ABSORPTION COEFFICIENT |
| 80 |
0.2 |
| 100 |
0.27 |
| 125 |
0.38 |
| 160 |
0.46 |
| 200 |
0.48 |
| 250 |
0.49 |
| 315 |
0.61 |
| 400 |
0.63 |
| 500 |
0.69 |
| 630 |
0.77 |
| 800 |
0.84 |
| 1000 |
0.92 |
| 1250 |
0.98 |
| 1600 |
1.04 |
| 2000 |
1.13 |
| 2500 |
1.17 |
| 3150 |
1.22 |
| 4000 |
1.27 |
| 5000 |
1.32 |
SAMPLE DESCRIPTION: Workzone Divider 3/8" (9mm) | NRC: 0.60 | SAA: 0.61801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)
| FREQUENCY (HZ) |
ABSORPTION COEFFICIENT |
| 80 |
0.31 |
| 100 |
0.34 |
| 125 |
0.45 |
| 160 |
0.32 |
| 200 |
0.42 |
| 250 |
0.41 |
| 315 |
0.45 |
| 400 |
0.46 |
| 500 |
0.5 |
| 630 |
0.54 |
| 800 |
0.59 |
| 1000 |
0.65 |
| 1250 |
0.71 |
| 1600 |
0.8 |
| 2000 |
0.85 |
| 2500 |
0.89 |
| 3150 |
0.95 |
| 4000 |
0.99 |
| 5000 |
1.01 |
|
|
|
|
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
Customizable Parameters
- Geometric Properties: Width and length
- Material Thickness: 3/8″ (9mm) or 1/2″ (12mm)
- Color: Available options below
- Pattern: Custom patterns available
Contact our design team for custom applications.
