Standard Shapes
GRID CANOPY – CITE
GRID CANOPY – KUPI
GRID CANOPY – OVAL
GRID CANOPY – RECTANGLE

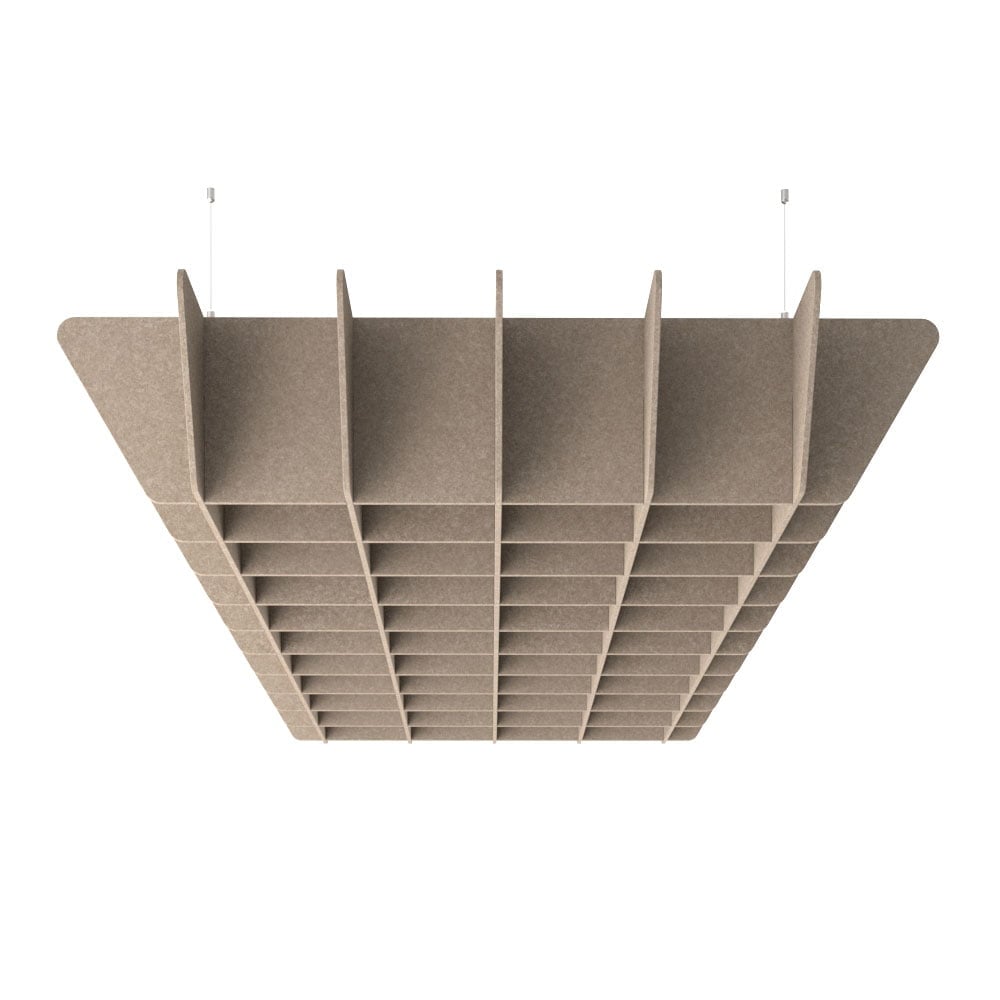

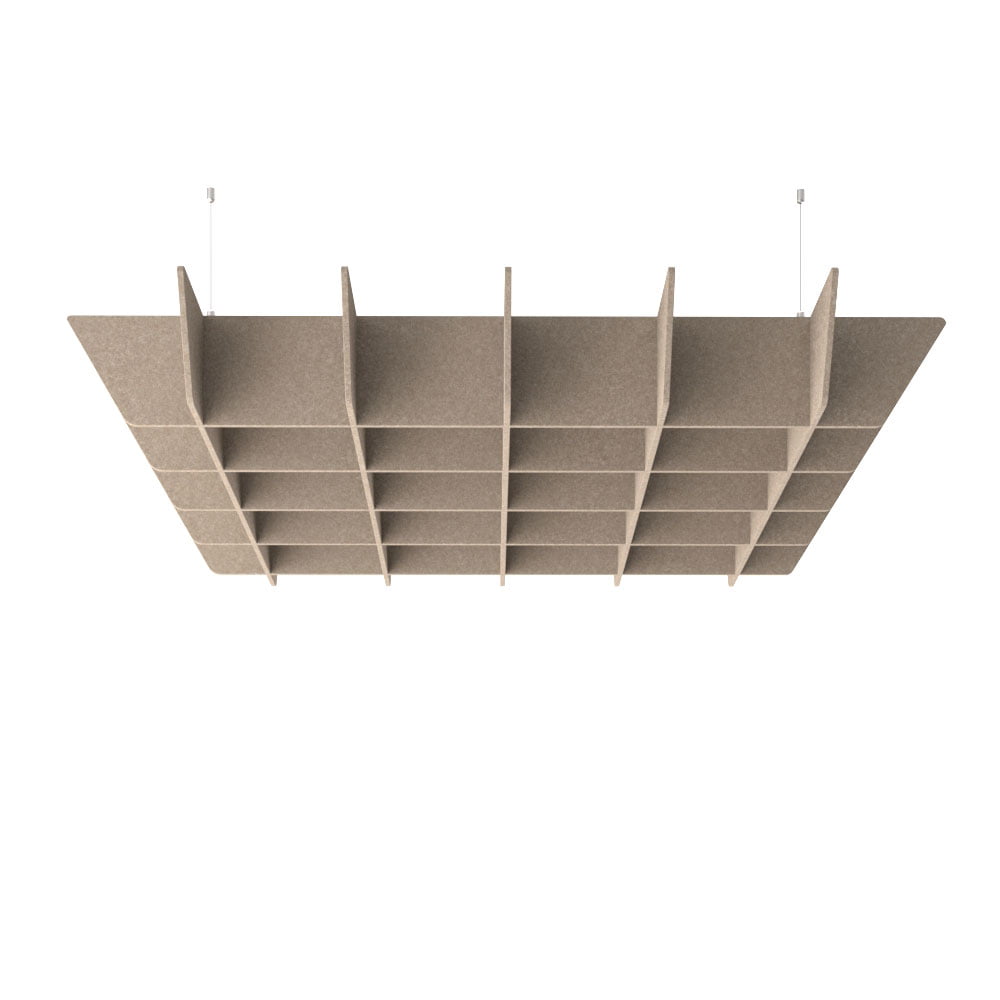

GRID CANOPY – TAPERED
GRID CANOPY – WAFFLE
Standard Sizes
GRID CANOPY – KUPI
| LENGTH |
WIDTH |
HEIGHT |
THICKNESS |
SUSPENSION PIONT QTY* |
| 48" (1219mm) |
48" (1219mm) |
8" (203mm) |
3/8" (9mm) |
4 |
| 48" (1219mm) |
48" (1219mm) |
8" (203mm) |
1/2" (12mm) |
4 |
| 48" (1219mm) |
48" (1219mm) |
12" (305mm) |
3/8" (9mm) |
4 |
| 48" (1219mm) |
48" (1219mm) |
12" (305mm) |
1/2" (12mm) |
4 |
| 48" (1219mm) |
96" (2438mm) |
8" (203mm) |
3/8" (9mm) |
6 |
| 48" (1219mm) |
96" (2438mm) |
8" (203mm) |
1/2" (12mm) |
6 |
| 48" (1219mm) |
96" (2438mm) |
12" (305mm) |
3/8" (9mm) |
6 |
| 48" (1219mm) |
96" (2438mm) |
12" (305mm) |
1/2" (12mm) |
6 |
| 96" (2438mm) |
96" (2438mm) |
8" (203mm) |
3/8" (9mm) |
6 |
| 96" (2438mm) |
96" (2438mm) |
8" (203mm) |
1/2" (12mm) |
6 |
| 96" (2438mm) |
96" (2438mm) |
12" (305mm) |
3/8" (9mm) |
6 |
| 96" (2438mm) |
96" (2438mm) |
12" (305mm) |
1/2" (12mm) |
6 |
GRID CANOPY – CITE | OVAL | TAPERED
| LENGTH |
WIDTH |
HEIGHT |
THICKNESS |
SUSPENSION PIONT QTY* |
| 48" (1219mm) |
48" (1219mm) |
6" (152mm) |
3/8" (9mm) |
4 |
| 48" (1219mm) |
48" (1219mm) |
6" (152mm) |
1/2" (12mm) |
4 |
| 48" (1219mm) |
48" (1219mm) |
10" (254mm) |
3/8" (9mm) |
4 |
| 48" (1219mm) |
48" (1219mm) |
10" (254mm) |
1/2" (12mm) |
4 |
| 48" (1219mm) |
60" (1524mm) |
6" (152mm) |
3/8" (9mm) |
4 |
| 48" (1219mm) |
60" (1524mm) |
6" (152mm) |
1/2" (12mm) |
4 |
| 48" (1219mm) |
60" (1524mm) |
10" (254mm) |
3/8" (9mm) |
4 |
| 48" (1219mm) |
60" (1524mm) |
10" (254mm) |
1/2" (12mm) |
4 |
| 48" (1219mm) |
72" (1829mm) |
6" (152mm) |
3/8" (9mm) |
6 |
| 48" (1219mm) |
72" (1829mm) |
6" (152mm) |
1/2" (12mm) |
4 |
| 48" (1219mm) |
72" (1829mm) |
10" (254mm) |
3/8" (9mm) |
6 |
| 48" (1219mm) |
72" (1829mm) |
10" (254mm) |
1/2" (12mm) |
4 |
| 48" (1219mm) |
84" (2134mm) |
6" (152mm) |
3/8" (9mm) |
6 |
| 48" (1219mm) |
84" (2134mm) |
6" (152mm) |
1/2" (12mm) |
4 |
| 48" (1219mm) |
84" (2134mm) |
10" (254mm) |
3/8" (9mm) |
6 |
| 48" (1219mm) |
84" (2134mm) |
10" (254mm) |
1/2" (12mm) |
4 |
| 48" (1219mm) |
96" (2438mm) |
6" (152mm) |
3/8" (9mm) |
6 |
| 48" (1219mm) |
96" (2438mm) |
6" (152mm) |
1/2" (12mm) |
4 |
| 48" (1219mm) |
96" (2438mm |
10" (254mm) |
3/8" (9mm) |
6 |
| 48" (1219mm) |
96" (2438mm) |
10" (254mm) |
1/2" (12mm) |
4 |
| 60" (1524mm) |
60" (1524mm) |
6" (152mm) |
3/8" (9mm) |
6 |
| 60" (1524mm) |
60" (1524mm) |
6" (152mm) |
1/2" (12mm) |
6 |
| 60" (1524mm) |
60" (1524mm) |
10" (254mm) |
3/8" (9mm) |
6 |
| 60" (1524mm) |
60" (1524mm) |
10" (254mm) |
1/2" (12mm) |
6 |
| 72" (1829mm) |
72" (1829mm) |
6" (152mm) |
3/8" (9mm) |
6 |
| 72" (1829mm) |
72" (1829mm) |
6" (152mm) |
1/2" (12mm) |
6 |
| 72" (1829mm) |
72" (1829mm) |
10" (254mm) |
3/8" (9mm) |
6 |
| 72" (1829mm) |
72" (1829mm) |
10" (254mm) |
1/2" (12mm) |
6 |
| 84" (2134mm) |
84" (2134mm) |
6" (152mm) |
3/8" (9mm) |
6 |
| 84" (2134mm) |
84" (2134mm) |
6" (152mm) |
1/2" (12mm) |
6 |
| 84" (2134mm) |
84" (2134mm) |
10" (254mm) |
3/8" (9mm) |
6 |
| 84" (2134mm) |
84" (2134mm) |
10" (254mm) |
1/2" (12mm) |
6 |
Specifications
- Available in 30 standard colors
- 8″ (203mm) and 12″ (305mm) grid density
- Superior sound absorption characteristics (NRC: 0.85, SAA: 0.84, ASTM C423, 12mm material thickness)
- T-Bar Compatibility allows fast and easy installation
- 70% open cell structure, allows lighting, airflow and sprinkler distribution
- Made from 100% polyester, approximately 50% of which is recycled water/soda bottles
- Manufactured without use of formaldehydes, adhesives or other bonding agents
- No volatile organic compounds (VOCs)
- Flame spread and smoke development test data available: ASTM E84 (Class A or Class 1) CAN/ULC S102 (FSR:20, SDC:325), EN ISO 13501-1 (b-s1, d0). EN ISO 11925-2 and EN 13823 compliant
Sound Absorption Performance
SAMPLE DESCRIPTION: Grid Canopy 1/2" (12mm) | Tapered | Grid Density: 12 1/2" (317.5mm) | GridHeight: 10" (254mm) | NRC: 0.85 | SAA: 0.84801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)
| FREQUENCY (HZ) |
ABSORPTION COEFFICIENT |
| 80 |
0.16 |
| 100 |
0.17 |
| 125 |
0.14 |
| 160 |
0.19 |
| 200 |
0.39 |
| 250 |
0.54 |
| 315 |
0.61 |
| 400 |
0.66 |
| 500 |
0.69 |
| 630 |
0.75 |
| 800 |
0.81 |
| 1000 |
0.94 |
| 1250 |
1.01 |
| 1600 |
1.12 |
| 2000 |
1.22 |
| 2500 |
1.31 |
| 3150 |
1.36 |
| 4000 |
1.37 |
| 5000 |
1.36 |
SAMPLE DESCRIPTION: Grid Canopy 3/8" (9mm) | Tapered | Grid Density: 10 3/8" (263.52mm) | GridHeight: 6" (152.4mm) | NRC: 0.55 | SAA: 0.57801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)
| FREQUENCY (HZ) |
ABSORPTION COEFFICIENT |
| 80 |
0.06 |
| 100 |
0.04 |
| 125 |
-0.03 |
| 160 |
0.15 |
| 200 |
0.24 |
| 250 |
0.3 |
| 315 |
0.38 |
| 400 |
0.39 |
| 500 |
0.49 |
| 630 |
0.53 |
| 800 |
0.55 |
| 1000 |
0.62 |
| 1250 |
0.71 |
| 1600 |
0.79 |
| 2000 |
0.85 |
| 2500 |
0.96 |
| 3150 |
1.03 |
| 4000 |
1.07 |
| 5000 |
1.09 |
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern, style and grid density.
Customizable Parameters
- Geometric Properties: Length, width, grid density and slab depth
- Material Thickness: 3/8″ (9mm) or 1/2″ (12mm)
- Color: Each slab can be manufactured with different color. Available options below
- Scalability: Larger spans can be achieved with invisible joints
Contact our design team for custom applications.
