Baffle Cloud is composed by Ezobord slab arrays to follow standard or customizable forms. Simple assembly flow and installation steps make Baffle Cloud a convenient and effective solution for both localized (partial) and full ceiling applications.
Standard Shapes

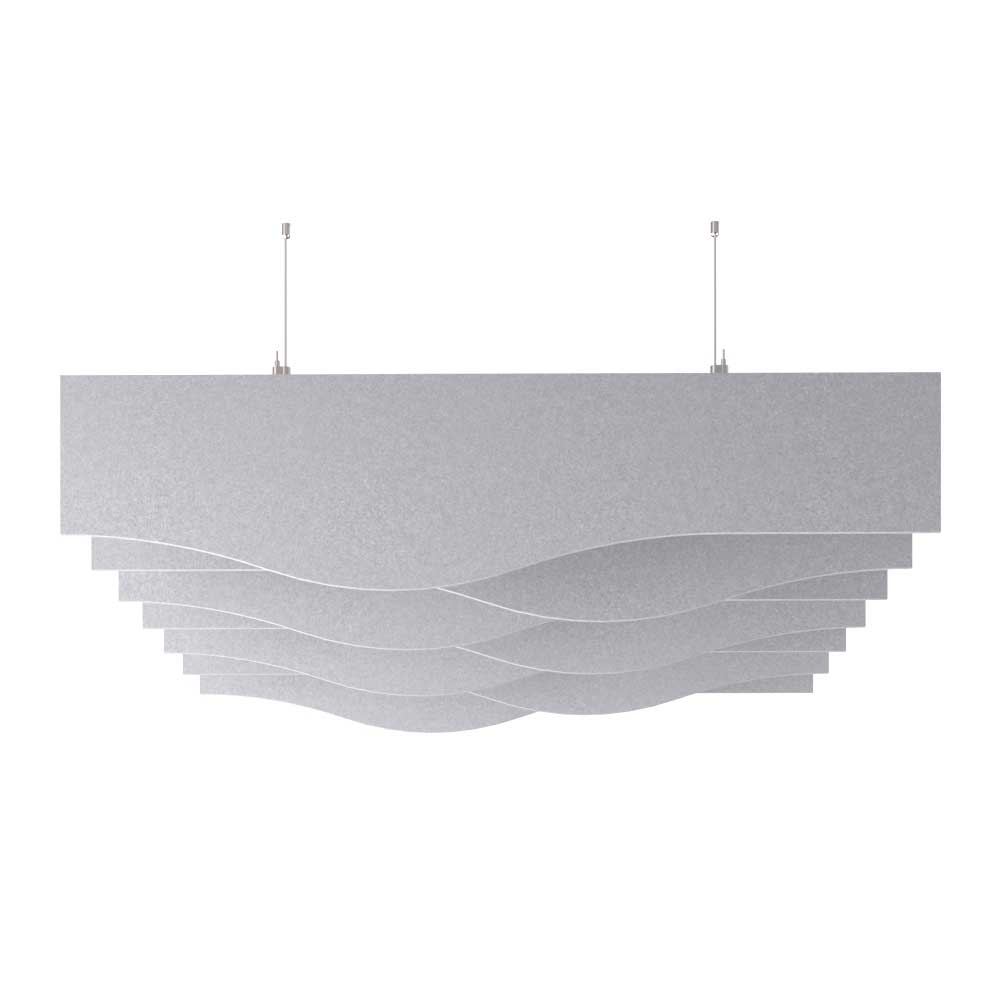

AALTO
LUNA – ROUND

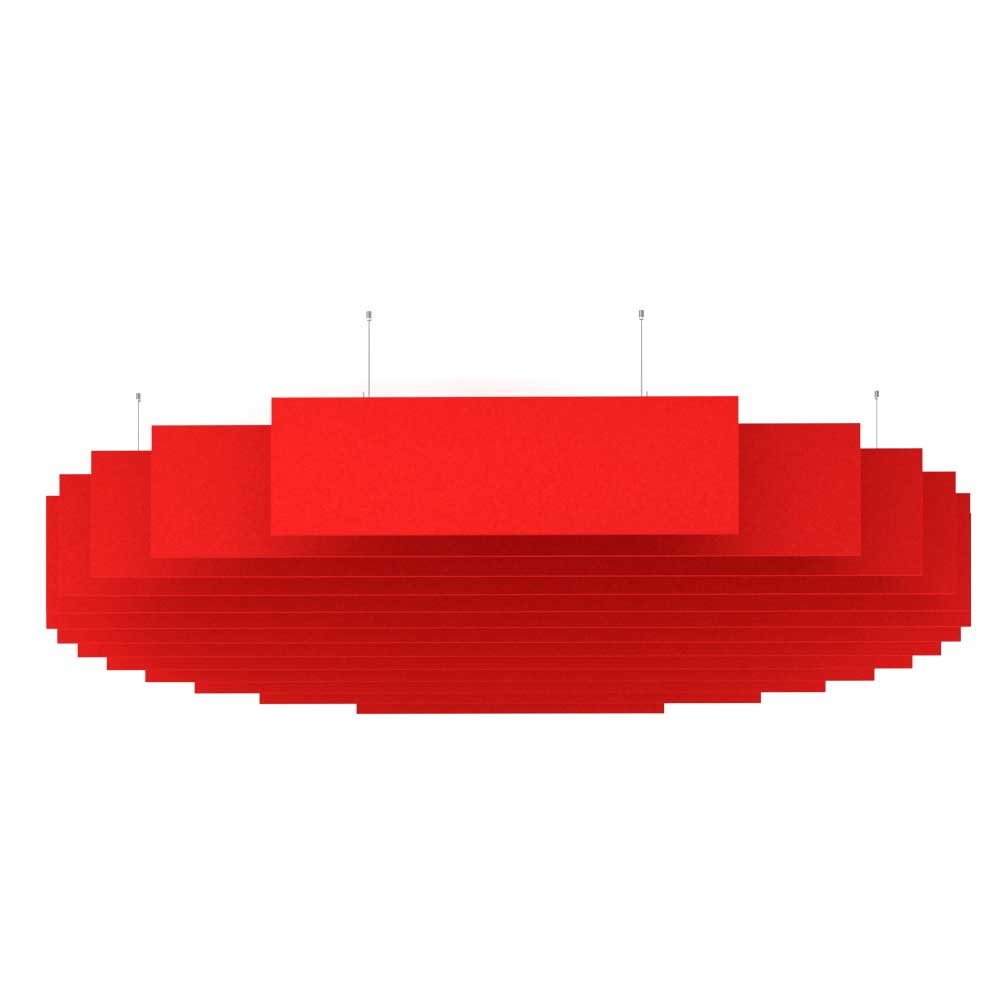

LUNA – SQUARE
VESI
VELDI
Standard Sizes
AALTO | LUNA (ROUND & SQUARE) | VESI | VELDI
| LENGTH |
WIDTH |
HEIGHT |
THICKNESS |
| 47" (1192mm) |
47" (1192mm) |
7 3/4" (197mm) |
3/8" (9mm) |
| 47" (1192mm) |
47" (1192mm) |
11 1/2" (292mm) |
3/8" (9mm) |
| 47" (1192mm) |
47" (1192mm) |
7 3/4" (197mm) |
1/2" (12mm) |
| 47" (1192mm) |
47" (1192mm) |
11 1/2" (292mm) |
1/2" (12mm) |
| 95" (2413mm) |
95" (2413mm) |
7 3/4" (197mm) |
3/8" (9mm) |
| 95" (2413mm) |
95" (2413mm) |
11 1/2" (292mm) |
3/8" (9mm) |
| 95" (2413mm) |
95" (2413mm) |
7 3/4" (197mm) |
1/2" (12mm) |
| 95" (2413mm) |
95" (2413mm) |
11 1/2" (292mm) |
1/2" (12mm) |
Specifications
- Available in 30 standard colours
- Thickness varies by style
- Superior sound absorption characteristics (NRC: 0.70, SAA: 0.70, ASTM C423, 12mm material thickness)
- Allows lighting, airflow and sprinkler distribution
- T-Bar compatibility allows fast and easy installation
- Made from 100% polyester, approximately 50% of which is recycled water/soda bottles
- Manufactured without use of formaldehydes, adhesives or other bonding agents
- No volatile organic compounds (VOCs)
- Flame spread and smoke development test data available: ASTM E84 (Class A or Class 1) CAN/ULC S102 (FSR:20, SDC:325), EN ISO 13501-1 (b-s1, d0). EN ISO 11925-2 and EN 13823 compliant
Sound Absorption Performance
SAMPLE DESCRIPTION: Veldi 1/2" (12mm) | Baffle Spacing: 10 1/2" (266.7mm) | Baffle Height:12" (304.8mm) | NRC: 0.70 | SAA: 0.70801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)
| FREQUENCY (HZ) |
ABSORPTION COEFFICIENT |
| 80 |
0.12 |
| 100 |
0.11 |
| 125 |
0.29 |
| 160 |
0.25 |
| 200 |
0.34 |
| 250 |
0.38 |
| 315 |
0.47 |
| 400 |
0.5 |
| 500 |
0.57 |
| 630 |
0.62 |
| 800 |
0.62 |
| 1000 |
0.75 |
| 1250 |
0.86 |
| 1600 |
0.99 |
| 2000 |
1.08 |
| 2500 |
1.17 |
| 3150 |
1.24 |
| 4000 |
1.28 |
| 5000 |
1.3 |
SAMPLE DESCRIPTION: Veldi 3/8" (9mm) | Baffle Spacing: 10 5/8" (269.88mm) | Baffle Height: 121/8" (307.97mm) | NRC: 0.60 | SAA: 0.59801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)
| FREQUENCY (HZ) |
ABSORPTION COEFFICIENT |
| 80 |
0.14 |
| 100 |
0.11 |
| 125 |
0.3 |
| 160 |
0.23 |
| 200 |
0.32 |
| 250 |
0.3 |
| 315 |
0.37 |
| 400 |
0.43 |
| 500 |
0.5 |
| 630 |
0.53 |
| 800 |
0.55 |
| 1000 |
0.61 |
| 1250 |
0.74 |
| 1600 |
0.81 |
| 2000 |
0.92 |
| 2500 |
1 |
| 3150 |
1.09 |
| 4000 |
1.11 |
| 5000 |
1.11 |
Sound absorption performance depends on mounting/installation conditions, material thickness, style, baffle spacing and baffle thickness.
Customizable Parameters
- Geometric Properties: Length, height, width and baffle spacing
- Material Thickness: 3/8″ (9mm) or 1/2″ (12mm)
- Baffle Thickness: 3/8″ (9mm), 1/2″ (12mm), 1″ (24mm), 1 5/8″ (42mm), 2″ (48mm)
- Colour: Each slab can be manufactured with different colour. Available options below
- Digital Print: Custom graphics and textures can be printed on 1″ (24mm) or thicker baffles
- Scalability: Larger areas can be covered with invisible joints.
Contact our design team for custom applications.
