A wide range of geometric shapes are available in 3 sizes and 15 standard colours. Custom colors and shapes are also available.
Enhanced V-Notch Geo Tiles
HEXAGON UNION

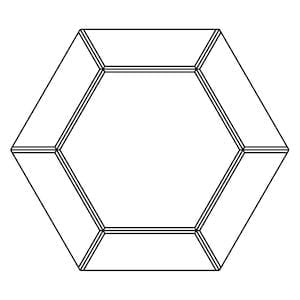

HEXAGON INCEPTION

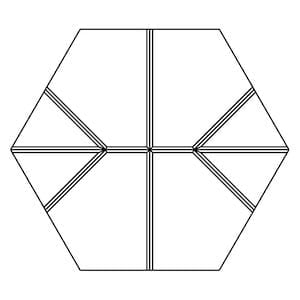

HEXAGON SNOWFALL

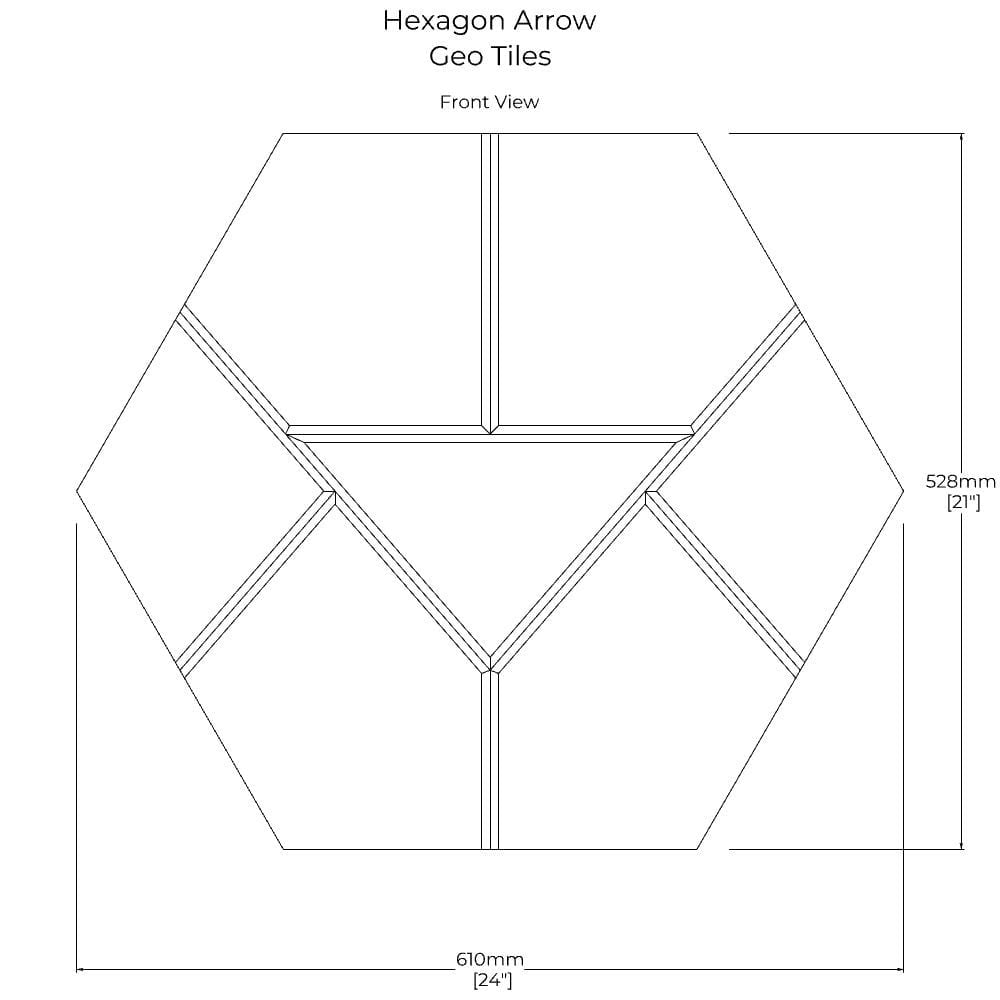

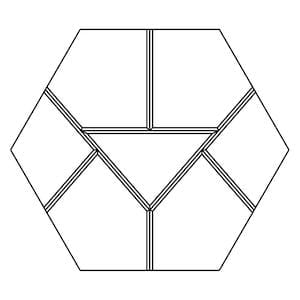

HEXAGON ARROW

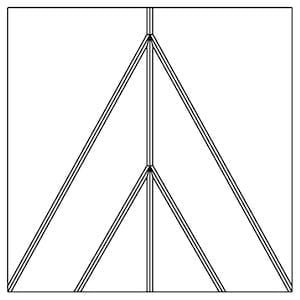

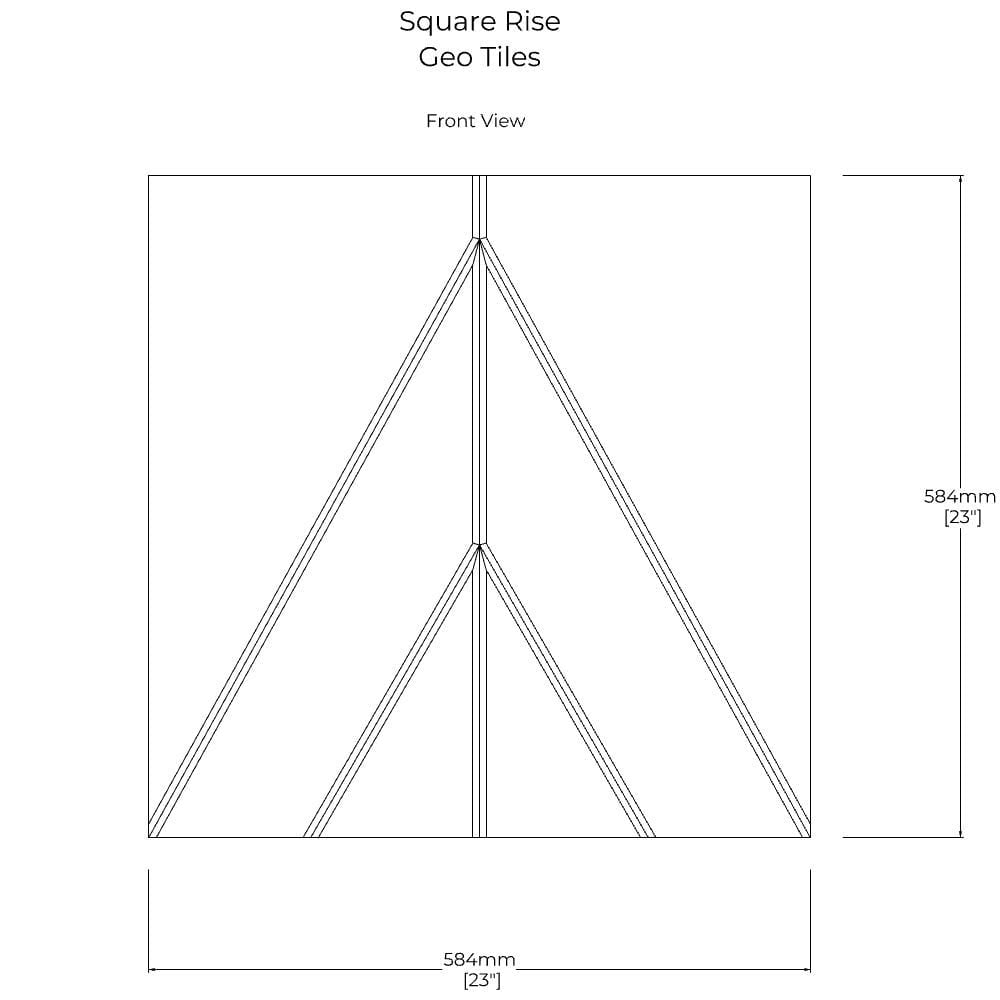

SQUARE RISE

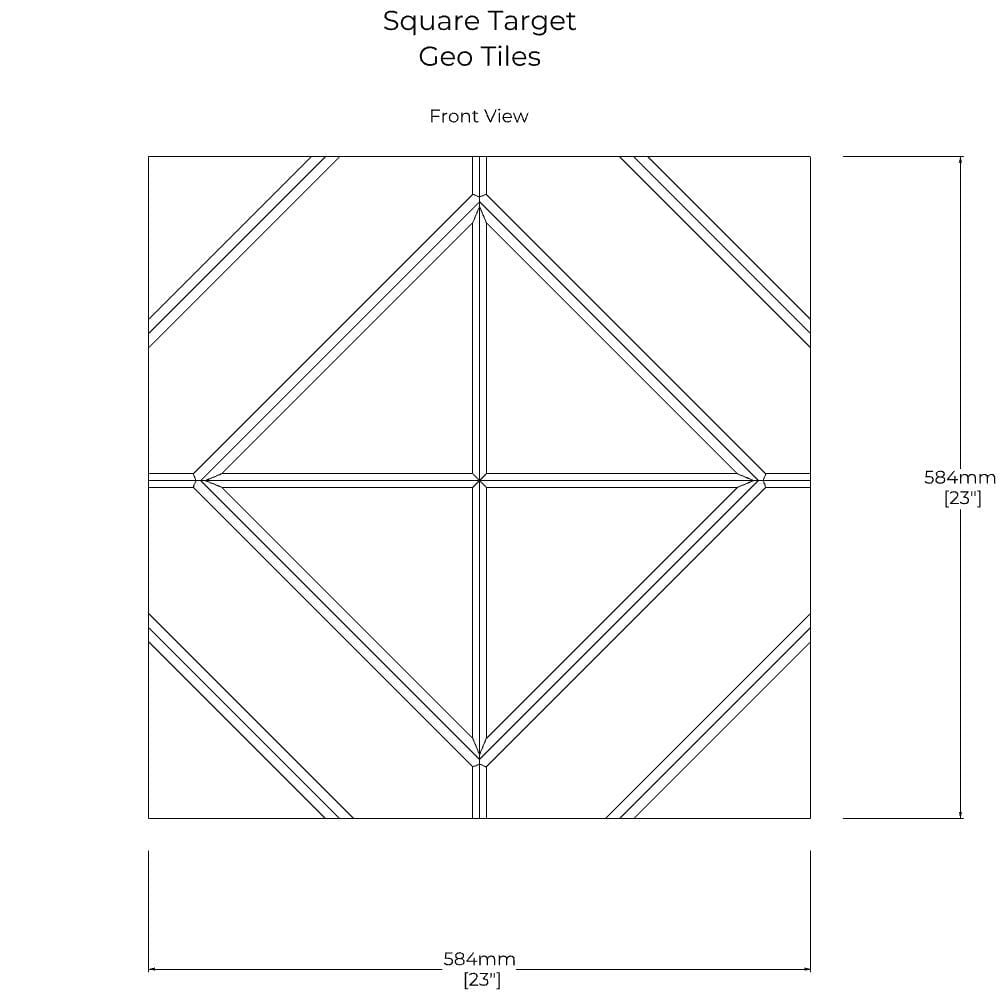

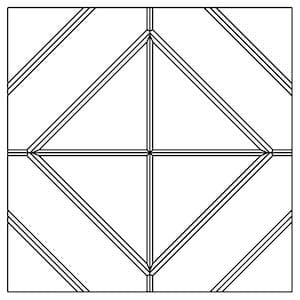

SQUARE TARGET

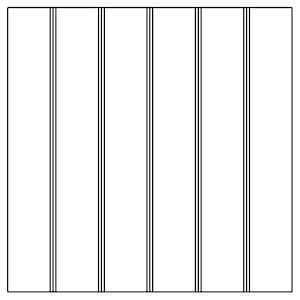

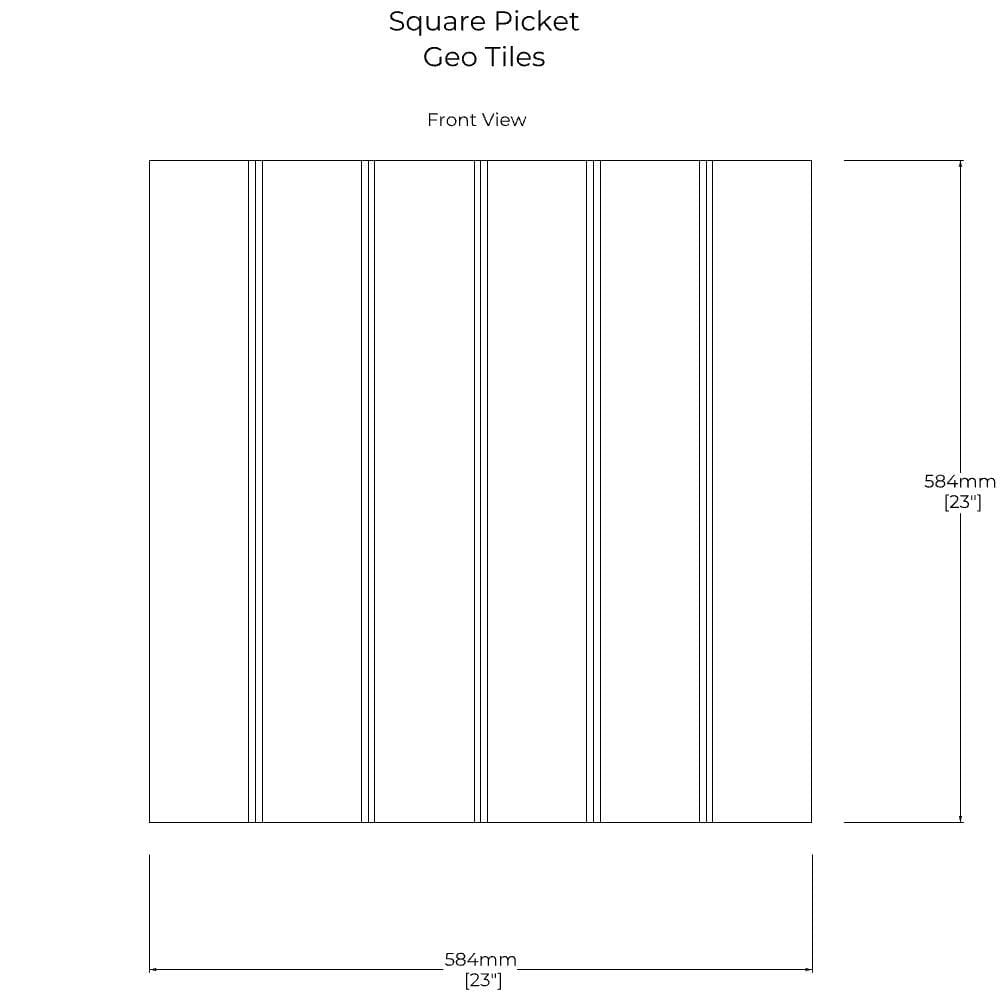

SQUARE PICKET

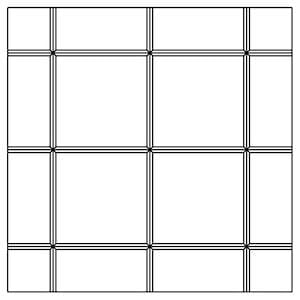

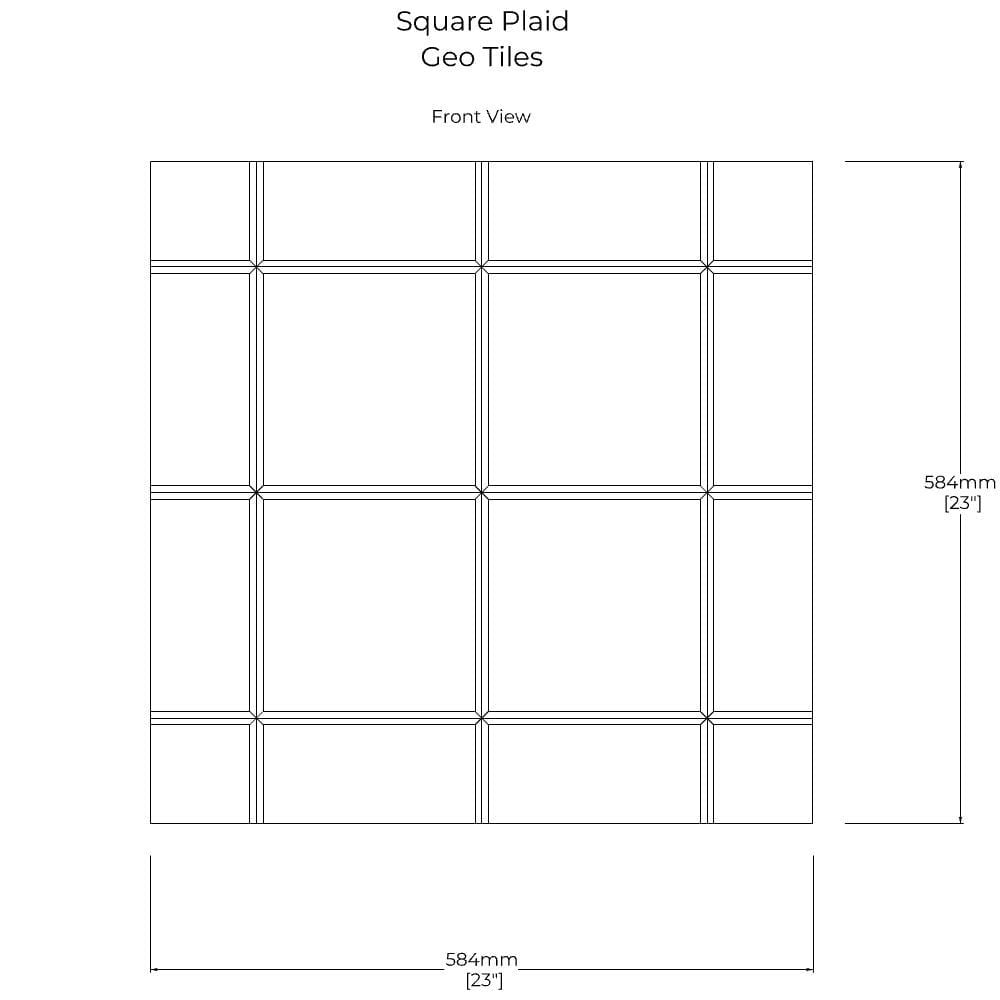

SQUARE PLAID

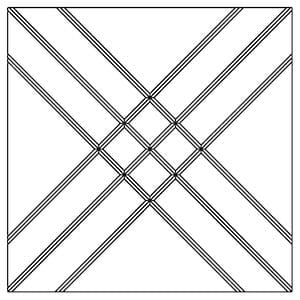

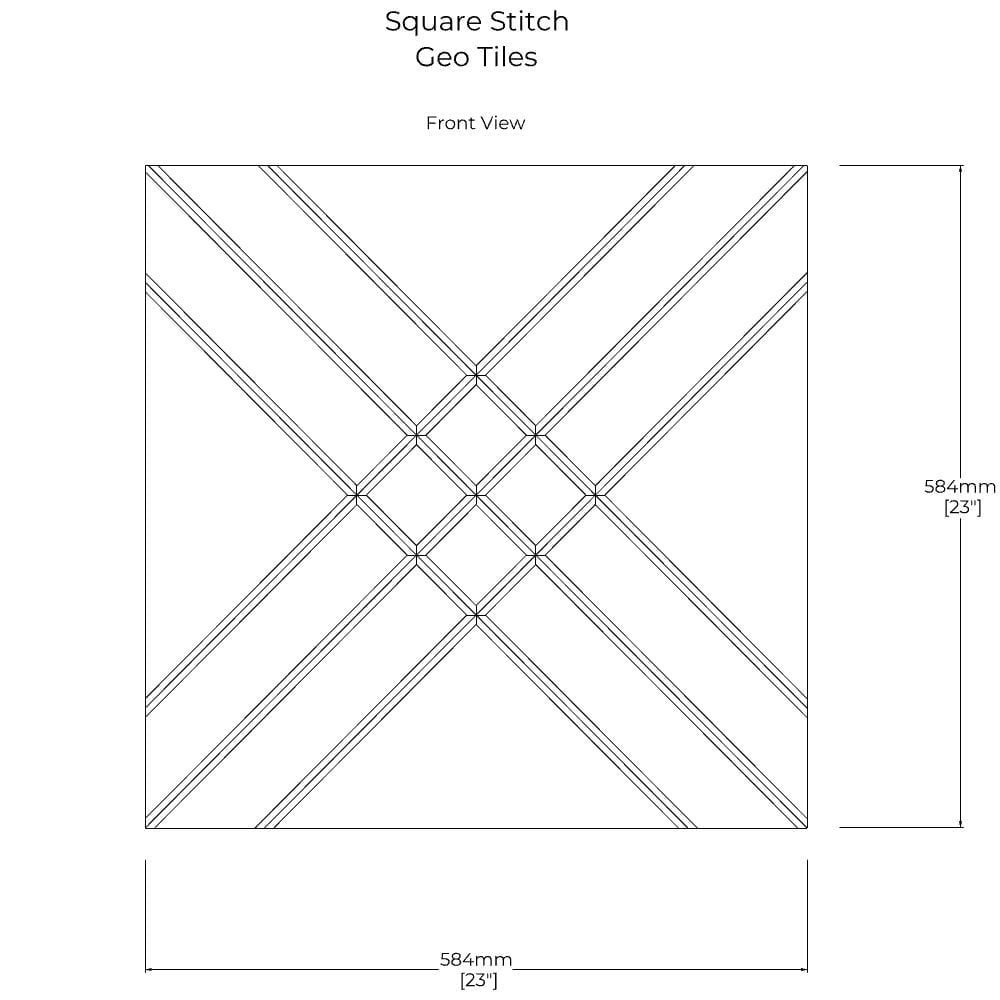

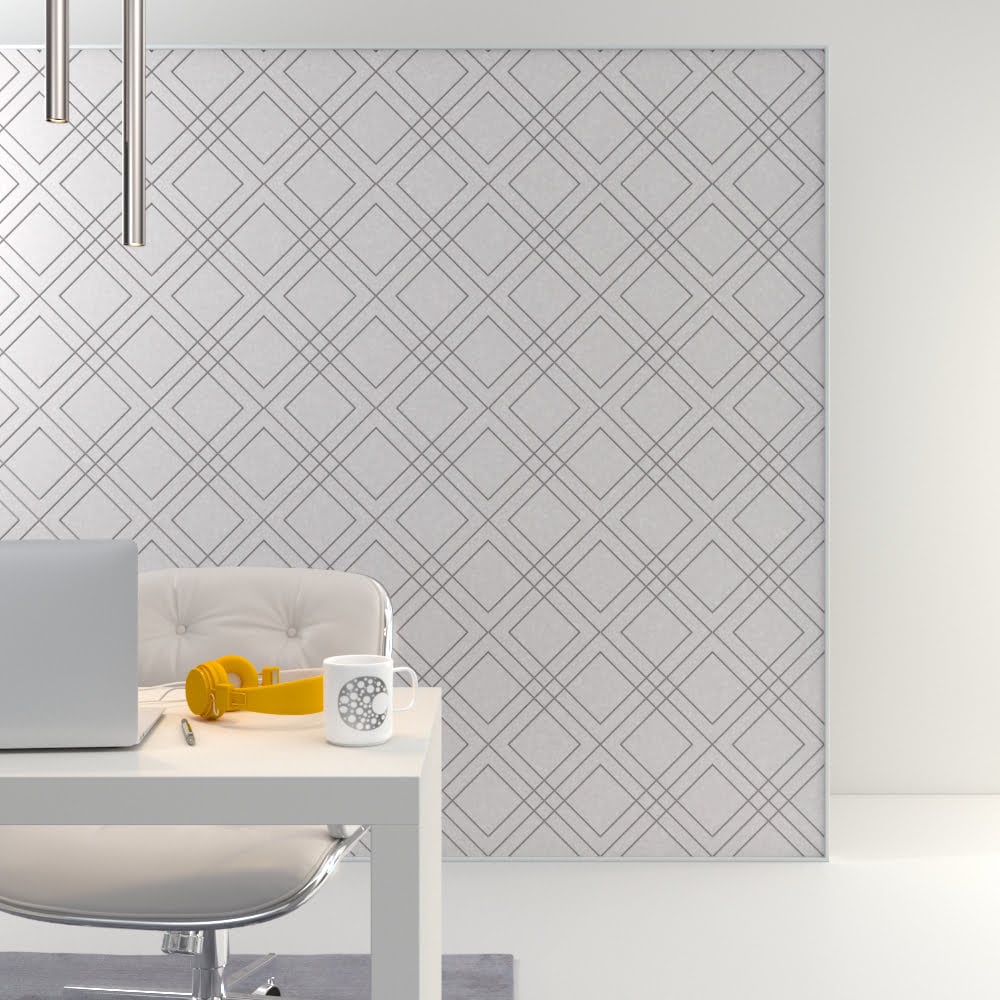

SQUARE STITCH

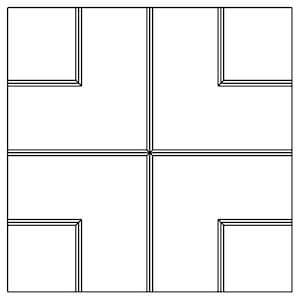

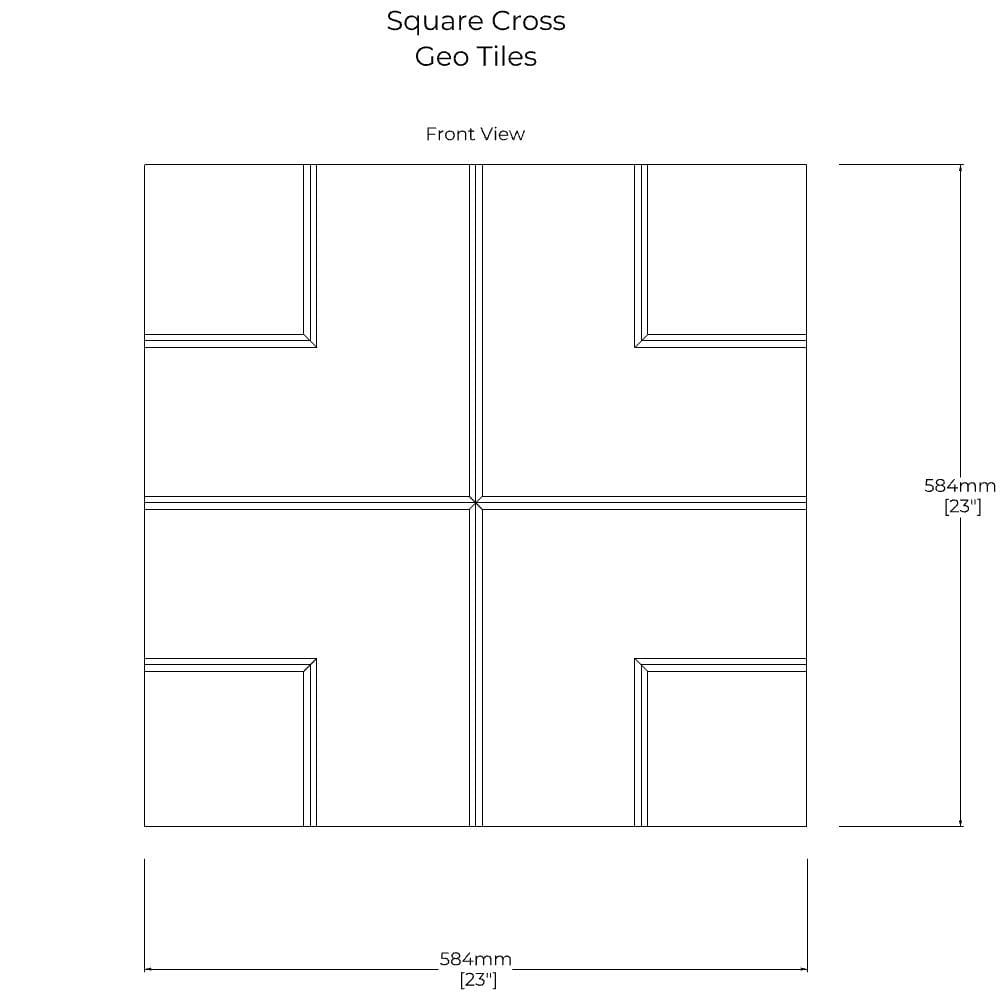

SQUARE CROSS

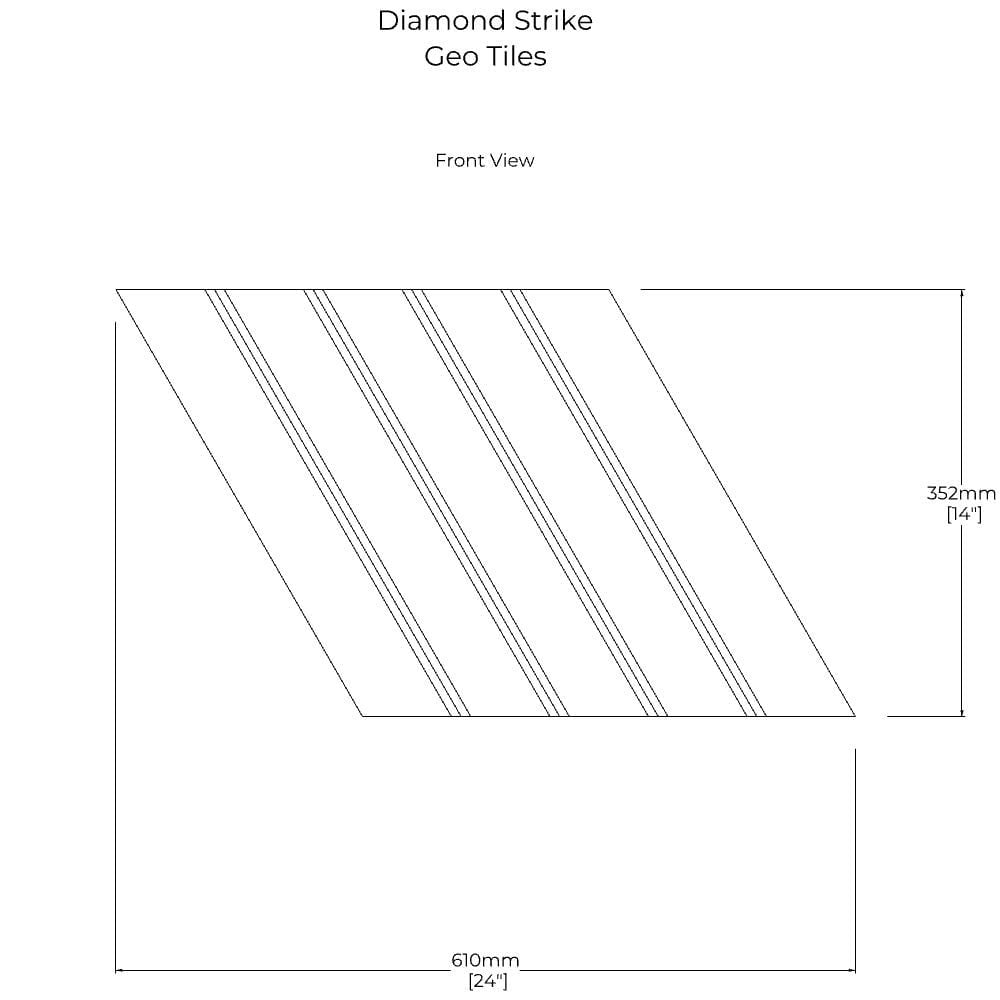

DIAMOND STRIKE
Standard Shapes

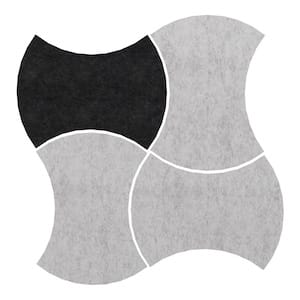

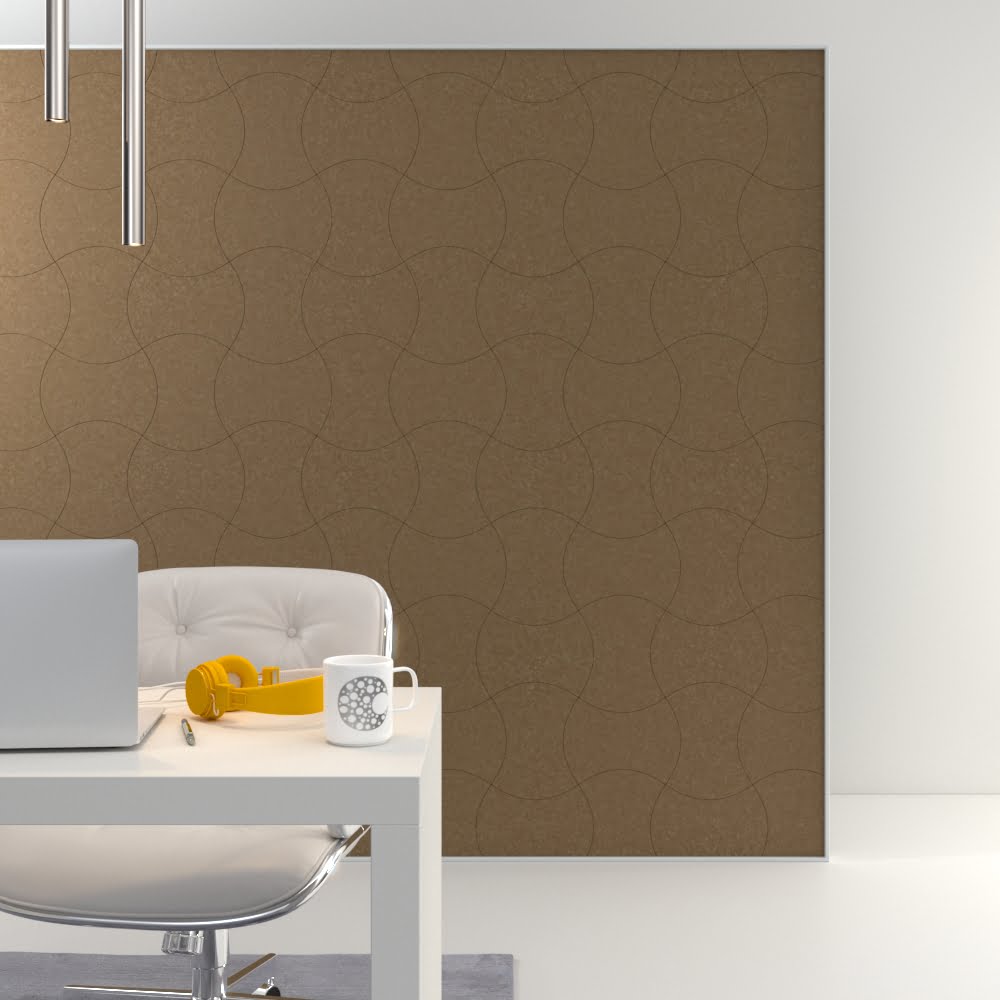

BOWTIE

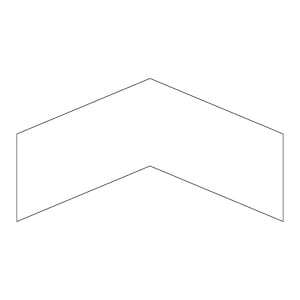

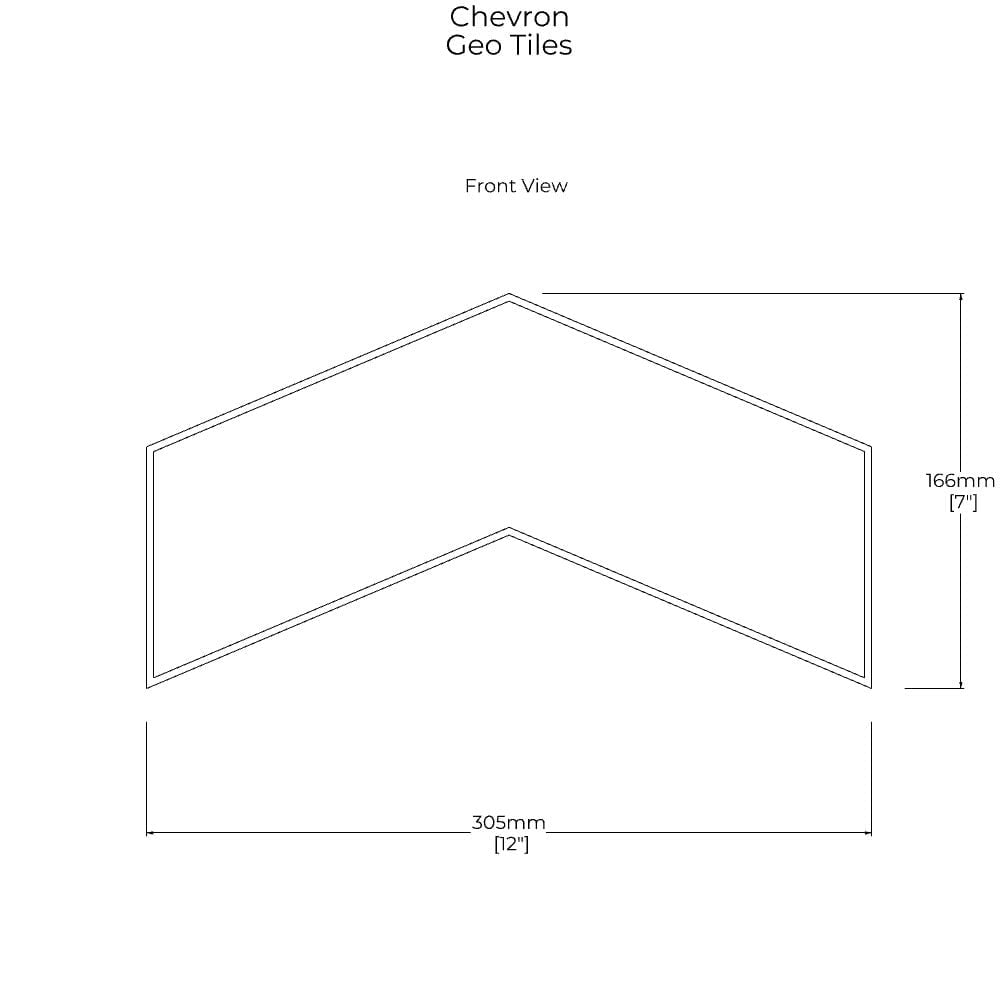

CHEVRON
CIRCLE

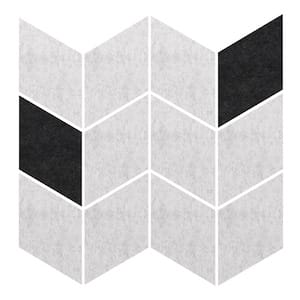

DIAMOND
STRIP
FAN

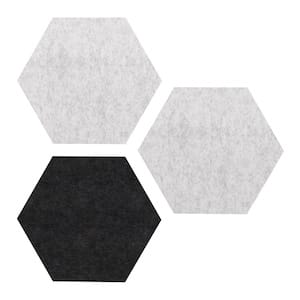

HEXAGON

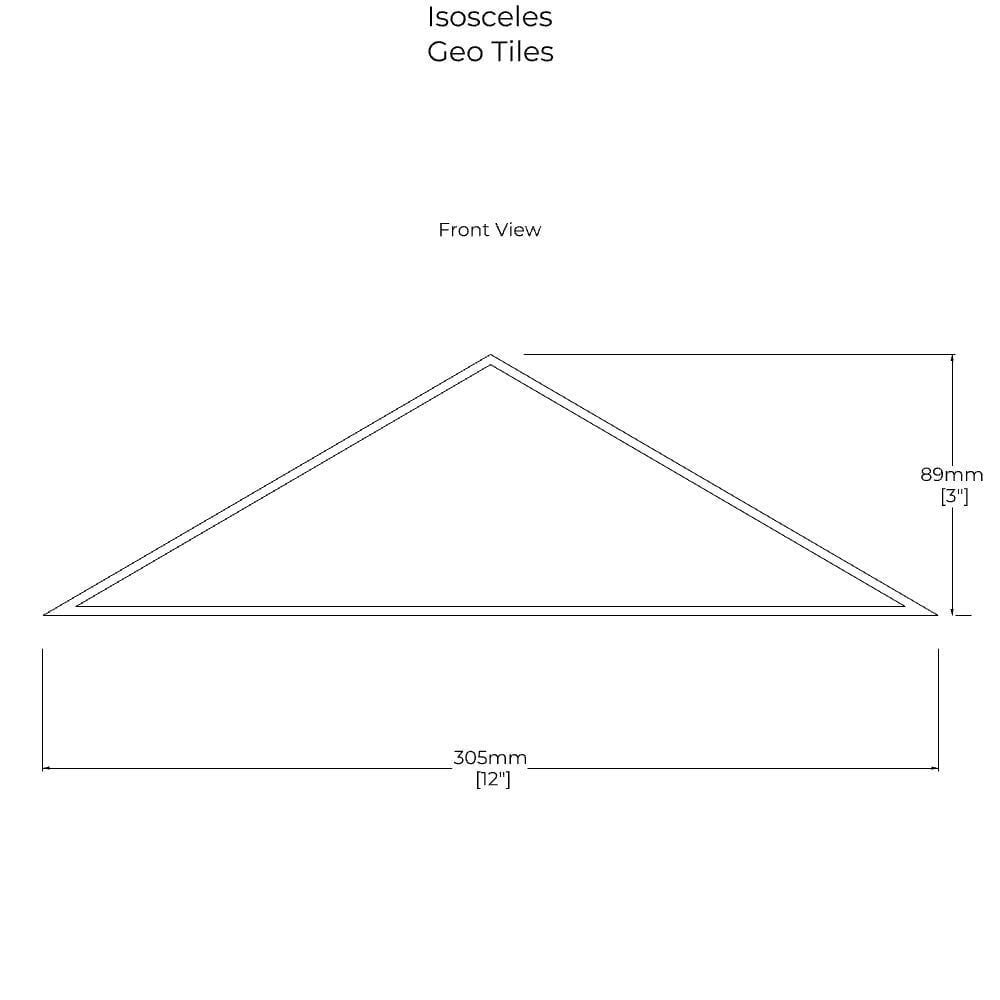

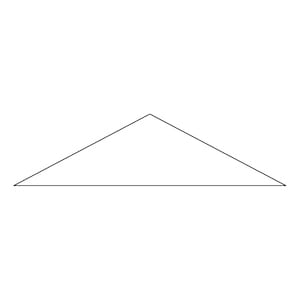

ISOSCELES
PAISLEY
PARALELLOGRAM
PROPELLER
PUZZLE
RECTANGLE
SQUARE
TRAPEZOID
TRIANGLE
Standard Sizes
| STYLE |
WIDTH |
LENGTH |
THICKNESS |
CARTON QTY |
| Bow Tie |
6" (152mm) |
4.4" (112mm) |
3/8" (9mm) |
16 |
| Bow Tie |
12" (305mm) |
8.8" (224mm) |
3/8" (9mm) |
8 |
| Bow Tie |
24" (610mm) |
17.6" (447mm) |
3/8" (9mm) |
8 |
| Chevron |
6" (152.4mm) |
3.27" (83.06mm) |
3/8" (9mm) |
16 |
| Chevron |
12" (304.8mm) |
6.55" (166.37mm) |
3/8" (9mm) |
16 |
| Chevron |
24" (609.6) |
13.09" (332.49mm) |
3/8" (9mm) |
16 |
| Triangle |
6" (152mm) |
5.2" (132mm) |
3/8" (9mm) |
16 |
| Triangle |
12" (305mm) |
10.39" (364mm) |
3/8" (9mm) |
8 |
| Triangle |
24" (610mm) |
20.78" (528mm) |
3/8" (9mm) |
8 |
| Square |
5.5" (140mm) |
5.5" (140mm) |
3/8" (9mm) |
16 |
| Square |
11.5" (292mm) |
11.5" (292mm) |
3/8" (9mm) |
8 |
| Square |
23.5" (597mm) |
23.5" (597mm) |
3/8" (9mm) |
8 |
| Circle |
6" (152mm) |
6" (152mm) |
3/8" (9mm) |
16 |
| Circle |
12" (305mm) |
12" (305mm) |
3/8" (9mm) |
8 |
| Circle |
24" (610mm) |
24" (610mm) |
3/8" (9mm) |
8 |
| Rectangle |
5.5" (140mm) |
2.75" (70mm) |
3/8" (9mm) |
16 |
| Rectangle |
11.5" (292mm) |
5.5" (140mm) |
3/8" (9mm) |
8 |
| Rectangle |
23.5" (597mm) |
11.5" (292mm) |
3/8" (9mm) |
8 |
| Paisley |
4.5" (114mm) |
6" (152mm) |
3/8" (9mm) |
16 |
| Paisley |
9" (229mm) |
12" (305mm) |
3/8" (9mm) |
8 |
| Paisley |
18" ( 457mm) |
24" (610mm) |
3/8" (9mm) |
8 |
| Propeller |
6 1/3" (161mm) |
6" (152mm) |
3/8" (9mm) |
16 |
| Propeller |
12 2/3" (322mm) |
12" (305mm) |
3/8" (9mm) |
8 |
| Propeller |
25 1/3" (643mm) |
24" (610mm) |
3/8" (9mm) |
8 |
| Diamond |
6" (152mm) |
3.47" (88mm) |
3/8" (9mm) |
16 |
| Diamond |
12" (305mm) |
6.93" (176mm) |
3/8" (9mm) |
8 |
| Diamond |
24" (610mm) |
13.86" (352mm) |
3/8" (9mm) |
8 |
| Hexagon |
6" (152mm) |
5.2" (132mm) |
3/8" (9mm) |
16 |
| Hexagon |
12" (305mm) |
10.39" (264mm) |
3/8" (9mm) |
8 |
| Hexagon |
24" (610mm) |
20.75" (528mm) |
3/8" (9mm) |
8 |
| Puzzle |
11.98" (304m) |
9.83" (250mm) |
3/8" (9mm) |
8 |
| Puzzle |
23.5" (596mm) |
19.69" (500mm) |
3/8" (9mm) |
8 |
| Trapezoid |
6" (152mm) |
2.3" (58mm) |
3/8" (9mm) |
16 |
| Trapezoid |
12" (305mm) |
5.2" (132mm) |
3/8" (9mm) |
8 |
| Trapezoid |
24" (610mm) |
10.39" (264mm) |
3/8" (9mm) |
8 |
| Fan |
6" (152mm) |
6" (152mm) |
3/8" (9mm) |
16 |
| Fan |
12" (305mm) |
12" (305mm) |
3/8" (9mm) |
8 |
| Fan |
24" (610mm) |
24" (610mm) |
3/8" (9mm) |
8 |
| Strip |
3" (76mm) |
24" (610mm) |
3/8" (9mm) |
16 |
| Isosceles |
12" (305mm) |
3 1/2" (89mm) |
3/8" (9mm) |
16 |
| Isosceles |
24" (610mm) |
7" (178mm) |
3/8" (9mm) |
8 |
| Paralellogram |
12" (305mm) |
3" (76mm) |
3/8" (9mm) |
16 |
| Paralellogram |
24" (610mm) |
6" (152mm) |
3/8" (9mm) |
8 |
| Hexagon Union |
24" (610mm) |
20.78" (528mm) |
3/8" (9mm) |
8 |
| Hexagon Inception |
24" (610mm) |
20.78" (528mm) |
3/8" (9mm) |
8 |
| Hexagon Snowfall |
24" (610mm) |
20.78" (528mm) |
3/8" (9mm) |
8 |
| Hexagon Arrow |
24" (610mm) |
20.78" (528mm) |
3/8" (9mm) |
8 |
| Square Rise |
23" (584mm) |
23" (584mm) |
3/8" (9mm) |
8 |
| Square Target |
23" (584mm) |
23" (584mm) |
3/8" (9mm) |
8 |
| Square Picket |
23" (584mm) |
23" (584mm) |
3/8" (9mm) |
8 |
| Square Plaid |
23" (584mm) |
23" (584mm) |
3/8" (9mm) |
8 |
| Square Stitch |
23" (584mm) |
23" (584mm) |
3/8" (9mm) |
8 |
| Square Cross |
23" (584mm) |
23" (584mm) |
3/8" (9mm) |
8 |
| Diamond Strike |
24" (610mm) |
13.86" (352mm) |
3/8" (9mm) |
8 |
Triangle, Square, Rectangular, Diamond, Hexagon and Trapezoid Geo Tiles are available in square edge and beveled edge.
Specifications
- Available in 30 standard colors and combinations
- Standard thickness 3/8″ (9mm)
- Fully tackable surface
- Easy and unobtrusive mounting
- Superior sound absorption characteristics
- Made from 100% polyester, approximately 50% of which is recycled water/soda bottles
- Manufactured without use of formaldehydes, adhesives or other bonding agents
- No volatile organic compounds (VOCs)
- Flame spread and smoke development test data available: ASTM E84 (Class A or Class 1) CAN/ULC S102 (FSR:20, SDC:325), EN ISO 13501-1 (b-s1, d0). EN ISO 11925-2 and EN 13823 compliant.
Check with local building code authorities for allowable applications.
Sound Absorption Performance
SAMPLE DESCRIPTION: Ezobord Direct Mount Wall Panel 1/2" (12mm) | NRC: 0.40 | SAA: 0.39801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)
| FREQUENCY (HZ) |
ABSORPTION COEFFICIENT |
| 80 |
0.01 |
| 100 |
0.02 |
| 125 |
0.11 |
| 160 |
0.05 |
| 200 |
0.07 |
| 250 |
0.07 |
| 315 |
0.1 |
| 400 |
0.12 |
| 500 |
0.21 |
| 630 |
0.3 |
| 800 |
0.38 |
| 1000 |
0.52 |
| 1250 |
0.61 |
| 1600 |
0.7 |
| 2000 |
0.76 |
| 2500 |
0.83 |
| 3150 |
0.9 |
| 4000 |
0.97 |
| 5000 |
1.03 |
SAMPLE DESCRIPTION: Ezobord Direct Mount Wall Panel 3/8" (9mm) | NRC: 0.31 | SAA: 0.30801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)
| FREQUENCY (HZ) |
ABSORPTION COEFFICIENT |
| 80 |
-0.02 |
| 100 |
0 |
| 125 |
0.16 |
| 160 |
0.09 |
| 200 |
0.04 |
| 250 |
0.06 |
| 315 |
0.08 |
| 400 |
0.1 |
| 500 |
0.17 |
| 630 |
0.22 |
| 800 |
0.29 |
| 1000 |
0.4 |
| 1250 |
0.47 |
| 1600 |
0.56 |
| 2000 |
0.62 |
| 2500 |
0.67 |
| 3150 |
0.73 |
| 4000 |
0.79 |
| 5000 |
0.86 |
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
Customizable Parameters
- Geometric Properties: Dimensions, and shape
- Material Thickness: 3/8″ (9mm) or 1/2″ (12mm)
- Color: Available options below
Contact our design team for custom applications.
