Available in both standard and custom shape options, Geo Clouds help define any architectural space. They can be combined with Geo Tiles for continuous flow from ceilings to walls. Geo Clouds can be inclined using appropriate installation methods.
Standard Shapes – Tier A
GEO CLOUD – DIAMOND
GEO CLOUD – TRIANGLE
GEO CLOUD – TRAPEZOID
GEO CLOUD – SQUARE

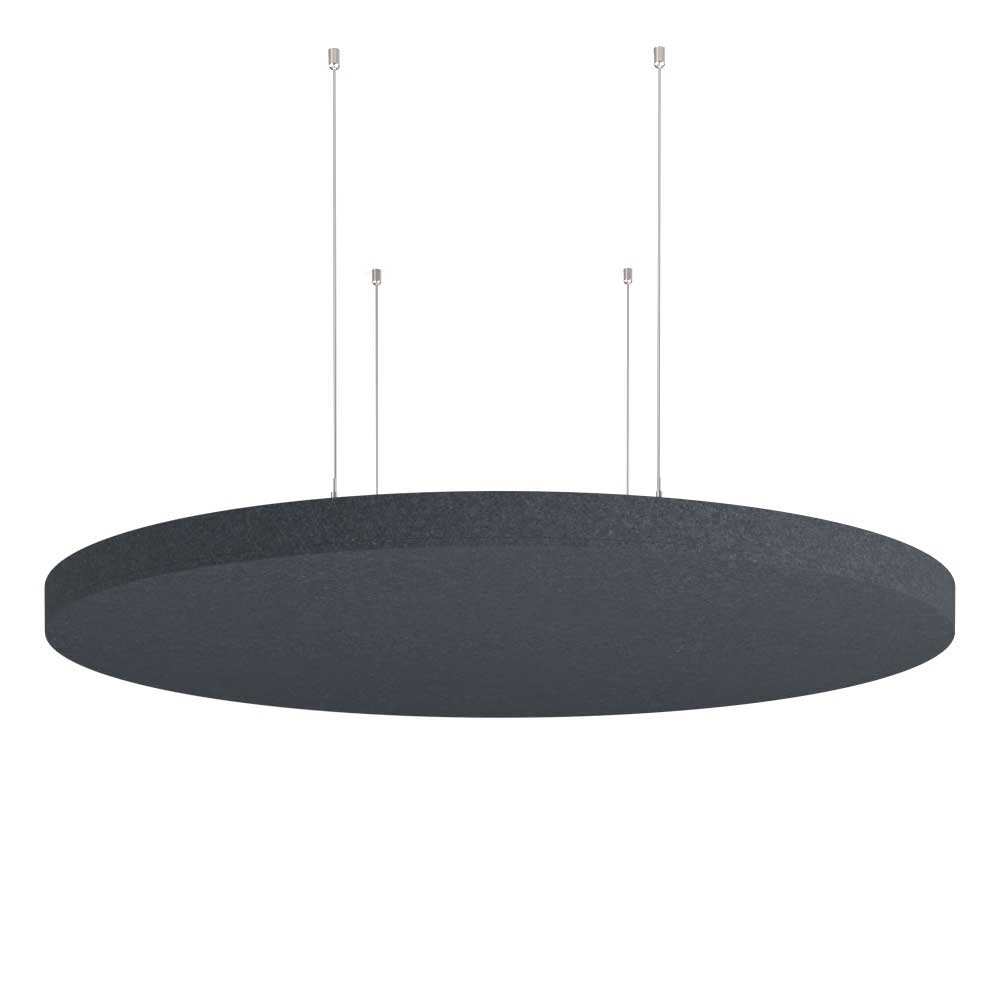

GEO CLOUD – CIRCLE

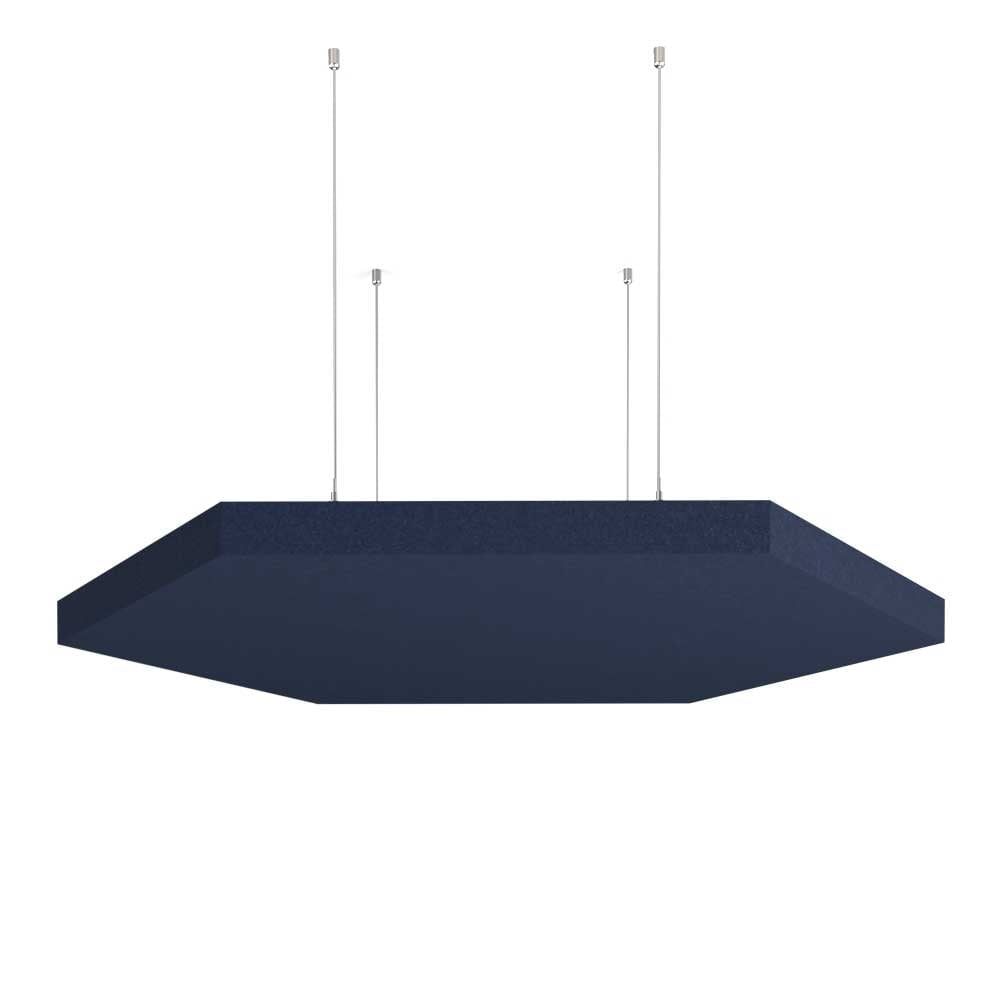

GEO CLOUD – HEXAGON
Standard Shapes – Tier B
GEO CLOUD – DIAMOND
GEO CLOUD – TRIANGLE
GEO CLOUD – TRAPEZOID
GEO CLOUD – SQUARE / RECTANGLE
GEO CLOUD – CIRCLE
GEO CLOUD – HEXAGON
Standard Sizes
GEO CLOUD – OPEN BACK | CLOSED BACK
| STYLE |
LENGTH |
WIDTH |
HEIGHT |
| Circle |
30" (762mm) |
30" (762mm) |
2" (51mm) |
| Circle |
41" (1041mm) |
41" (1041mm) |
2" (51mm) |
| Square |
31" (787mm) |
31" (787mm) |
2" (51mm) |
| Square |
41" (1041mm) |
41" (1041mm) |
2" (51mm) |
| Diamond |
13 1/2" (343mm) |
31" (787mm) |
2" (51mm) |
| Diamond |
20 1/2" (521mm) |
41" (1041mm) |
2" (51mm) |
| Hexagon |
27" (659mm) |
31" (787mm) |
2" (51mm) |
| Hexagon |
36" (914mm) |
41" (1041mm) |
2" (51mm) |
| Triangle |
26" (660mm) |
31" (787mm) |
2" (51mm) |
| Triangle |
35 1/2" (902mm) |
41" (1041mm) |
2" (51mm) |
| Trapezoid |
12" (305mm) |
31" (787mm) |
2" (51mm) |
| Trapezoid |
15 1/2" (394mm) |
41" (1041mm) |
2" (51mm) |
Specifications
- Available in 30 standard colours
- 2″ (51mm) thick border standard for all Geo Clouds
- Superior sound absorption characteristics (Apparent NRC: 1.20, SAA: 1.22, ASTM C423, 12mm material thickness, closed-back design)
- Made from 100% polyester, approximately 50% of which is recycled water/soda bottles
- Manufactured without use of formaldehydes, adhesives or other bonding agents
- No volatile organic compounds (VOCs)
- Flame spread and smoke development test data available: ASTM E84 (Class A or Class 1) CAN/ULC S102 (FSR:20, SDC:325), EN ISO 13501-1 (b-s1, d0). EN ISO 11925-2 and EN 13823 compliant
Sound Absorption Performance
SAMPLE DESCRIPTION: Geo Cloud Closedback 1/2" (12mm) | NRC: 1.20 | SAA: 1.22801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)
| FREQUENCY (HZ) |
ABSORPTION COEFFICIENT |
| 80 |
0.35 |
| 100 |
0.46 |
| 125 |
0.47 |
| 160 |
0.48 |
| 200 |
0.64 |
| 250 |
0.66 |
| 315 |
0.83 |
| 400 |
0.88 |
| 500 |
1.07 |
| 630 |
1.17 |
| 800 |
1.31 |
| 1000 |
1.45 |
| 1250 |
1.56 |
| 1600 |
1.66 |
| 2000 |
1.69 |
| 2500 |
1.7 |
| 3150 |
1.71 |
| 4000 |
1.72 |
| 5000 |
1.78 |
SAMPLE DESCRIPTION: Geo Cloud Openback 1/2" (12mm) | NRC: 0.80 | SAA: 0.81801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)
| FREQUENCY (HZ) |
ABSORPTION COEFFICIENT |
| 80 |
0.38 |
| 100 |
0.36 |
| 125 |
0.31 |
| 160 |
0.32 |
| 200 |
0.47 |
| 250 |
0.45 |
| 315 |
0.58 |
| 400 |
0.61 |
| 500 |
0.69 |
| 630 |
0.75 |
| 800 |
0.85 |
| 1000 |
0.93 |
| 1250 |
1.03 |
| 1600 |
1.11 |
| 2000 |
1.18 |
| 2500 |
1.25 |
| 3150 |
1.27 |
| 4000 |
1.36 |
| 5000 |
1.35 |
SAMPLE DESCRIPTION: Geocloud Closedback 3/8" (9mm) | NRC: 0.90 | SAA: 0.91801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)
| FREQUENCY (HZ) |
ABSORPTION COEFFICIENT |
| 80 |
0.15 |
| 100 |
0.22 |
| 125 |
0.33 |
| 160 |
0.21 |
| 200 |
0.43 |
| 250 |
0.41 |
| 315 |
0.59 |
| 400 |
0.65 |
| 500 |
0.77 |
| 630 |
0.88 |
| 800 |
0.99 |
| 1000 |
1.1 |
| 1250 |
1.21 |
| 1600 |
1.26 |
| 2000 |
1.31 |
| 2500 |
1.28 |
| 3150 |
1.27 |
| 4000 |
1.29 |
| 5000 |
1.31 |
SAMPLE DESCRIPTION: Geocloud Openback 3/8" (9mm) | NRC: 0.75 | SAA: 0.74801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)
| FREQUENCY (HZ) |
ABSORPTION COEFFICIENT |
| 80 |
0.1 |
| 100 |
0.15 |
| 125 |
0.32 |
| 160 |
0.22 |
| 200 |
0.41 |
| 250 |
0.36 |
| 315 |
0.49 |
| 400 |
0.55 |
| 500 |
0.61 |
| 630 |
0.7 |
| 800 |
0.77 |
| 1000 |
0.86 |
| 1250 |
0.96 |
| 1600 |
1.03 |
| 2000 |
1.07 |
| 2500 |
1.08 |
| 3150 |
1.1 |
| 4000 |
1.12 |
| 5000 |
1.16 |
Customizable Parameters
- Geometric Properties: Length, height, width and shape
- Material Thickness: 3/8″ (9mm) or 1/2″ (12mm)
- Colour: Available options below
- Digital Print: Custom graphics and textures can be printed on surfaces
Contact our design team for custom applications.
