Desk Screen System

Ezobord Desk Screen Systems are a great way to absorb sound, ensure privacy, whilst you add colour and style when you need to divide office desks. Made from high performance acoustic material they enhance speech intelligibility and are available in three different styles.

Share on
FacebookLinkedInPin itWhatsapp
Download product brochure
Contact our design team for custom applications.

Dimensions

Acoustic Performance

DESK SCREEN SYSTEMS

Privacy, improved speech intelligibility and a range of designs and colours.

Choose Options

DESK SCREEN SYSTEMS

Privacy, improved speech intelligibility and a range of designs and colours.

Choose Options

Additional information

Weight N/A
Dimensions N/A
Colour

, , , , , ,

Model

, ,

Dimensions

1200x400mm, 1200x600mm, 1600x400mm, 1600x600mm

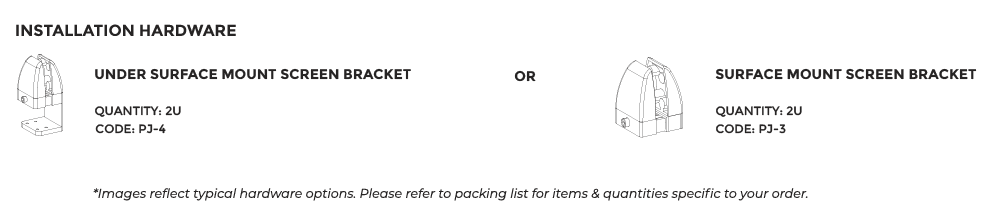

Screen Bracket

Surface Mount, Under Surface Mount

Ezobord Desk Screens add seated privacy, acoustic absorption, style/color, and great tackability to any open plan office. Modesty Screens and Modesty Panels can be added to most table desks.

Standard Shapes

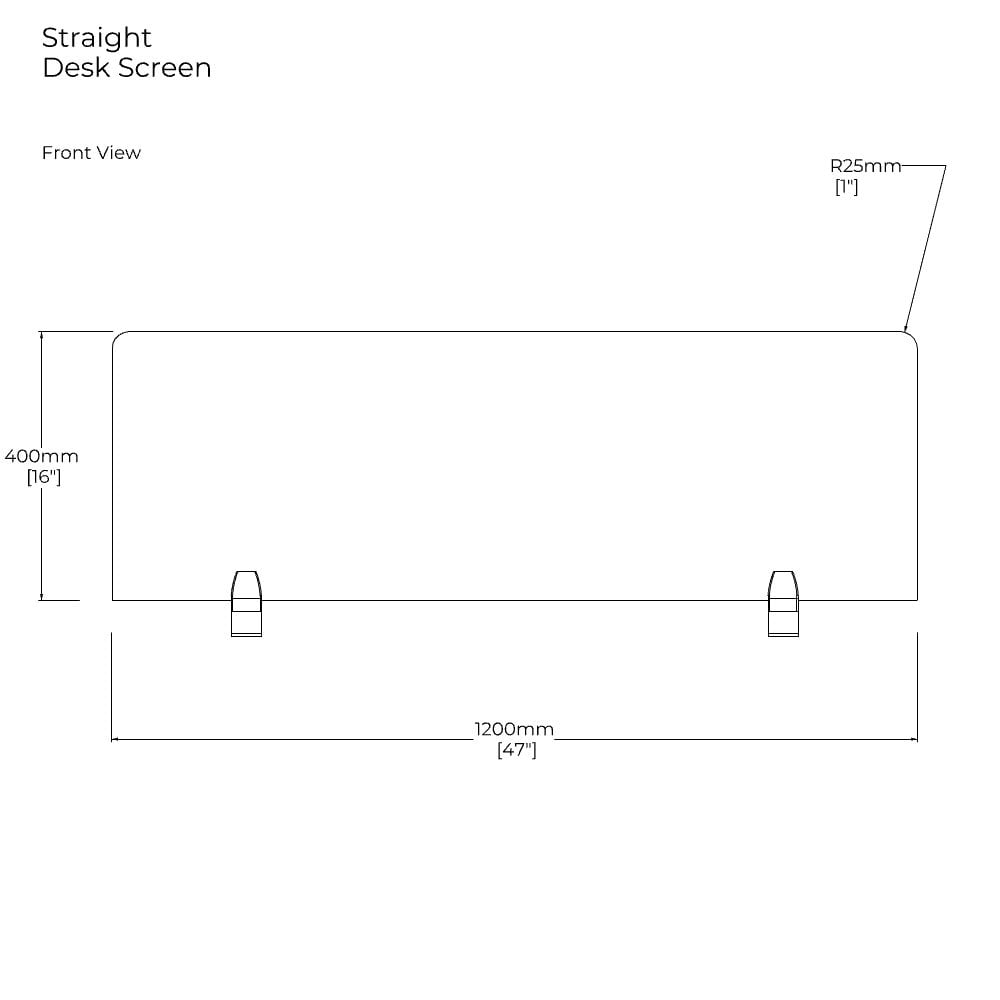

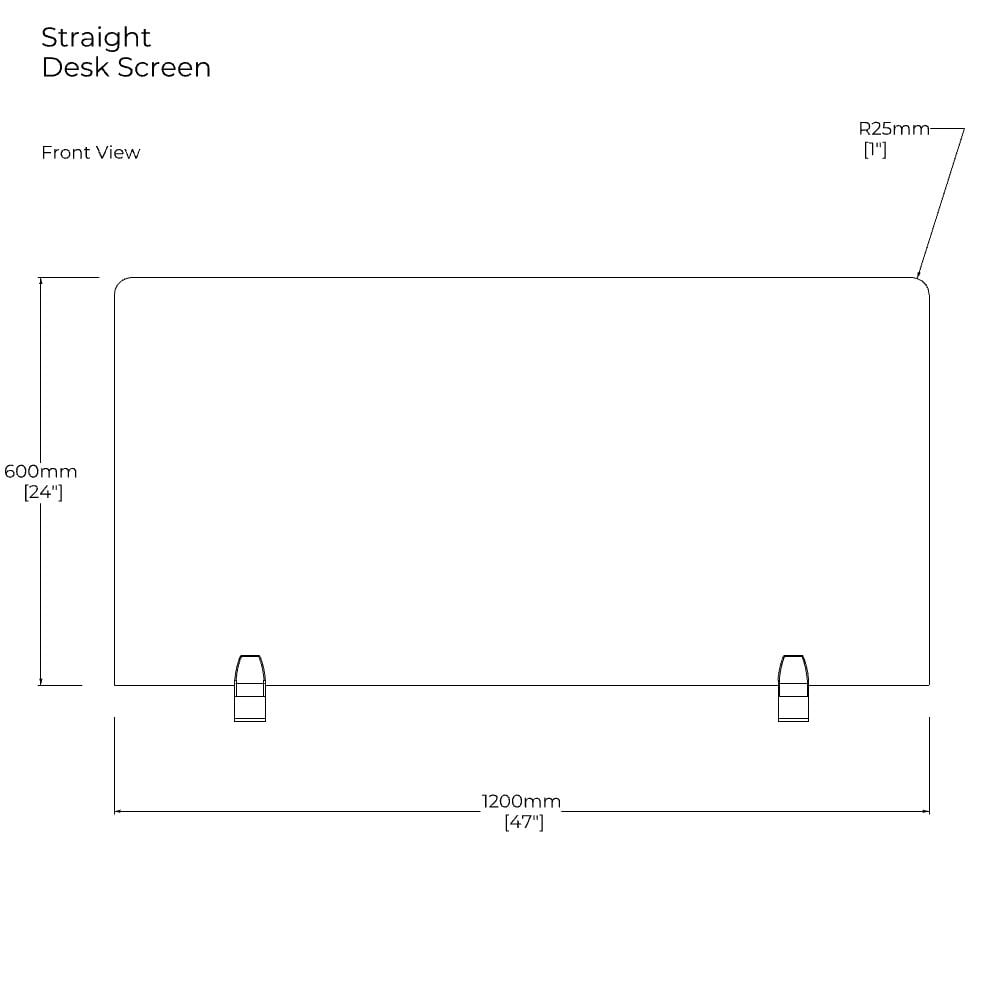

DESK SCREEN – STRAIGHT

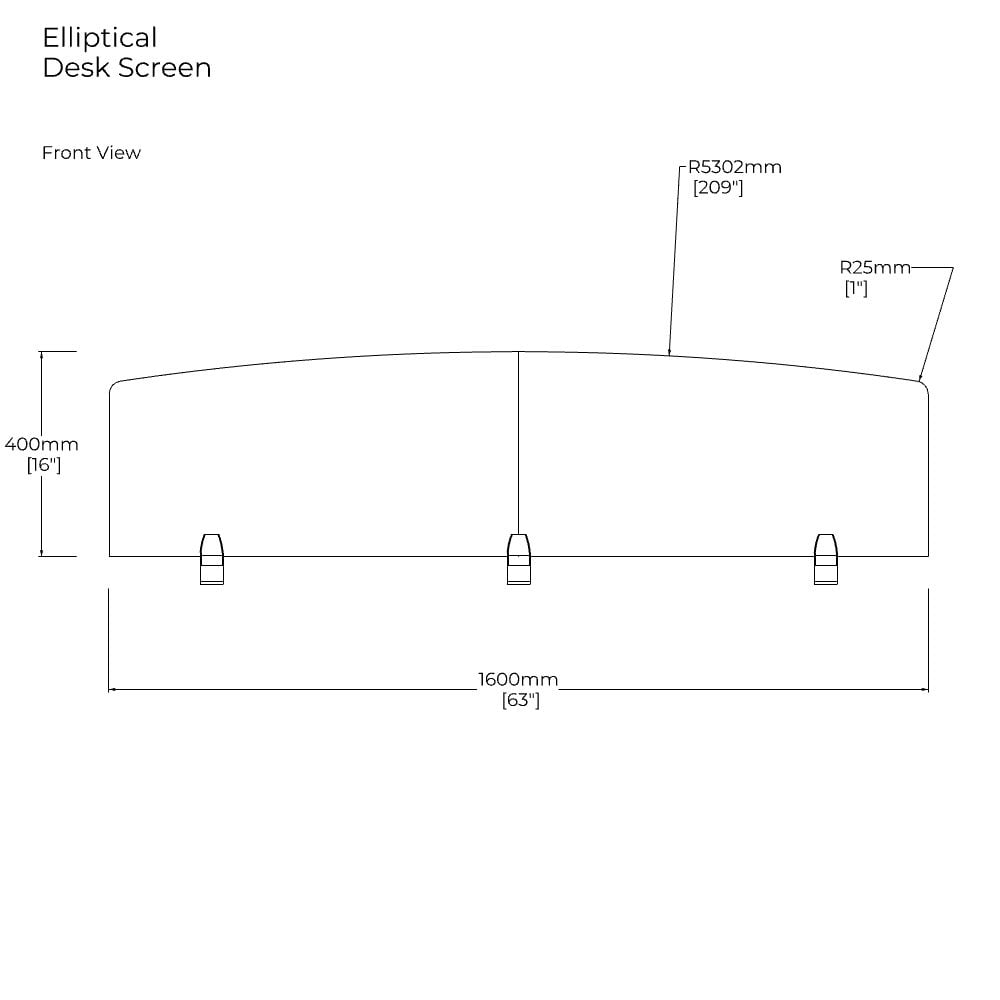

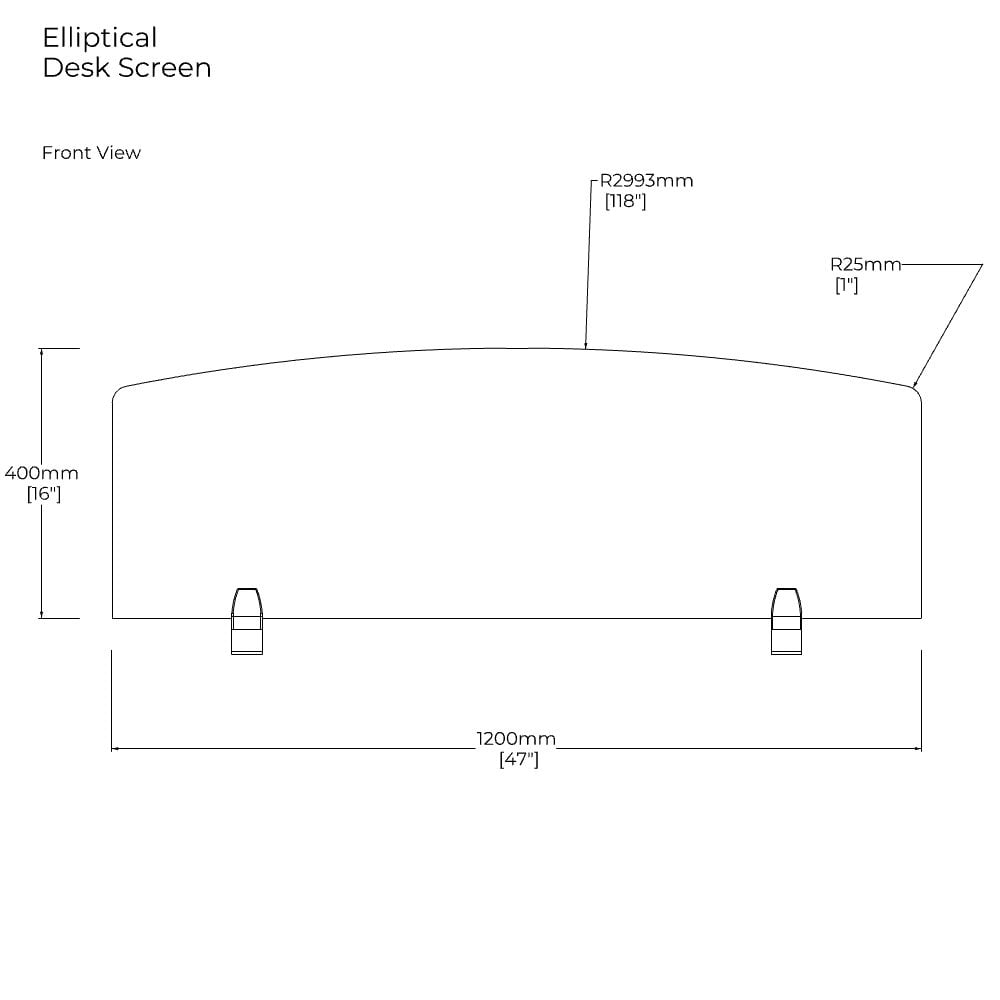

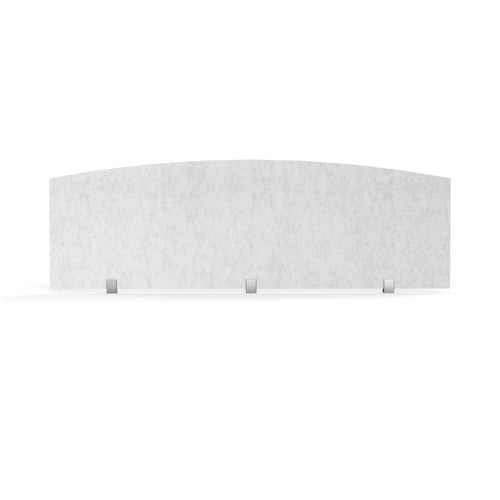

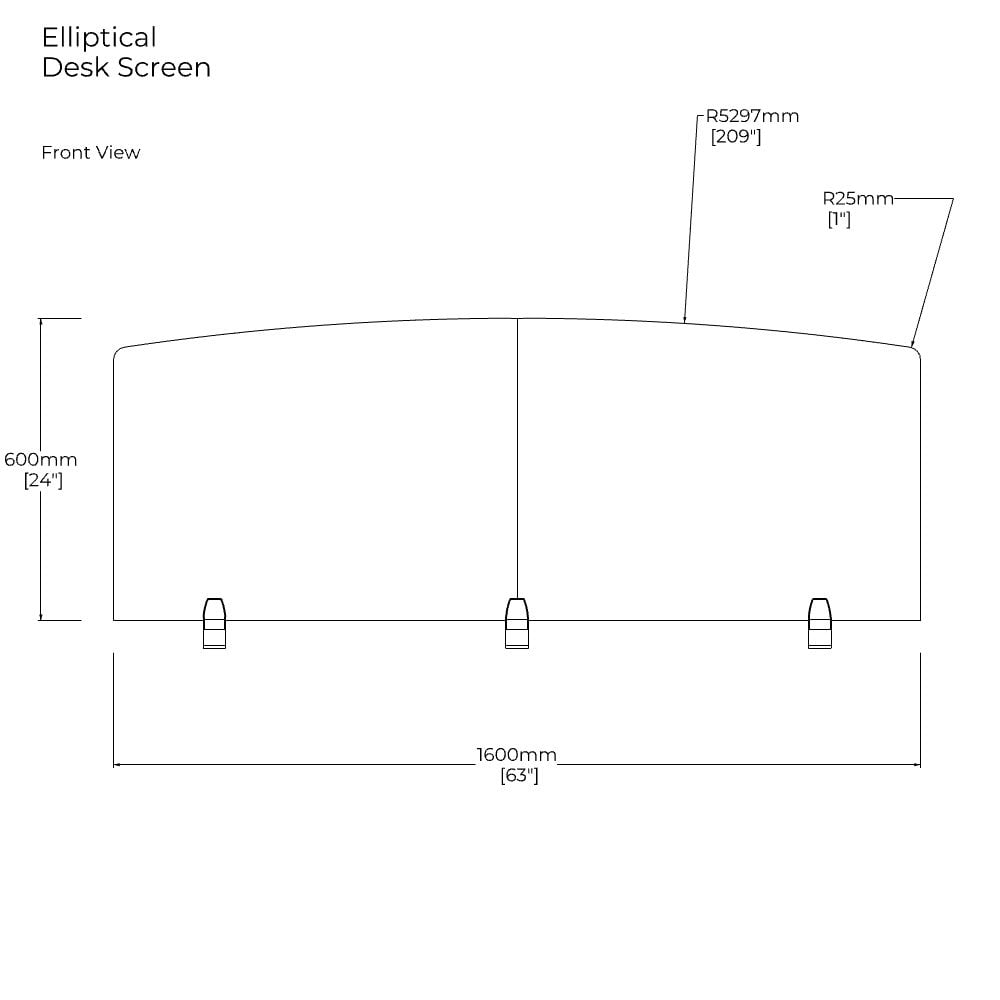

DESK SCREEN – ELLIPTICAL

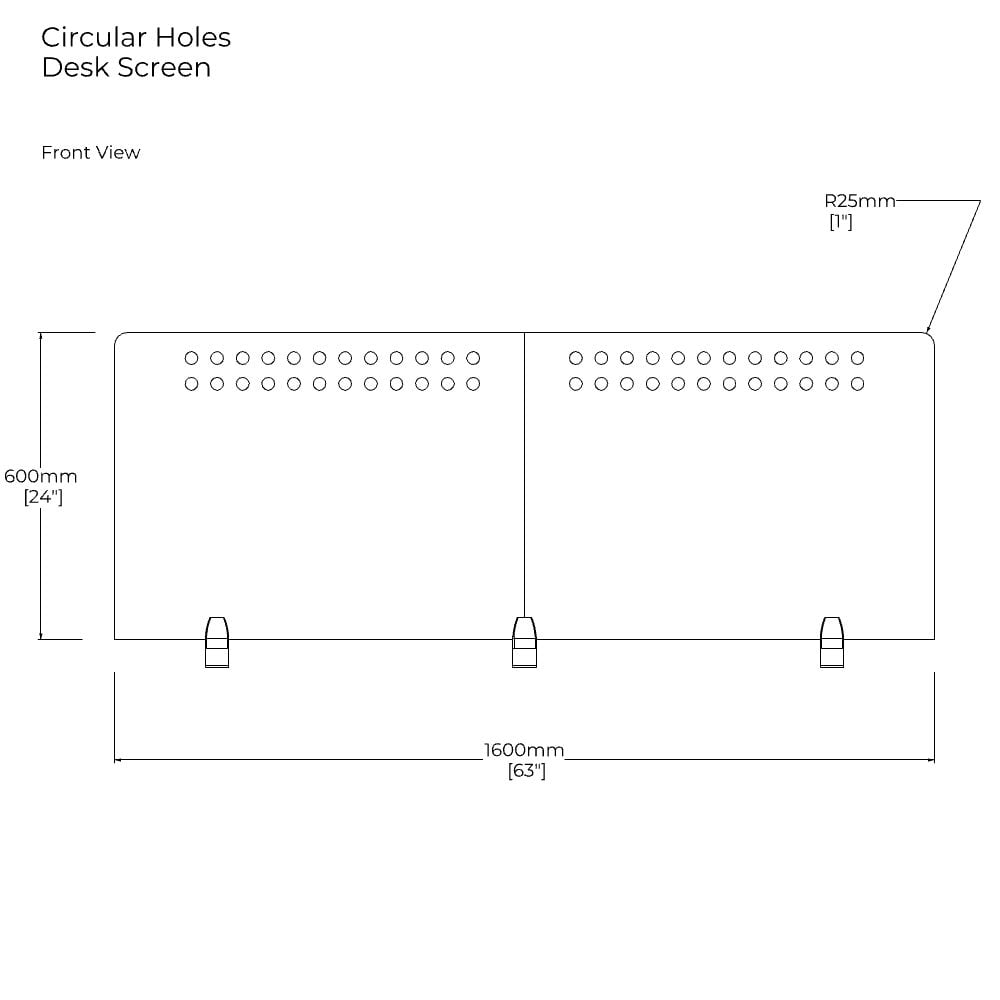

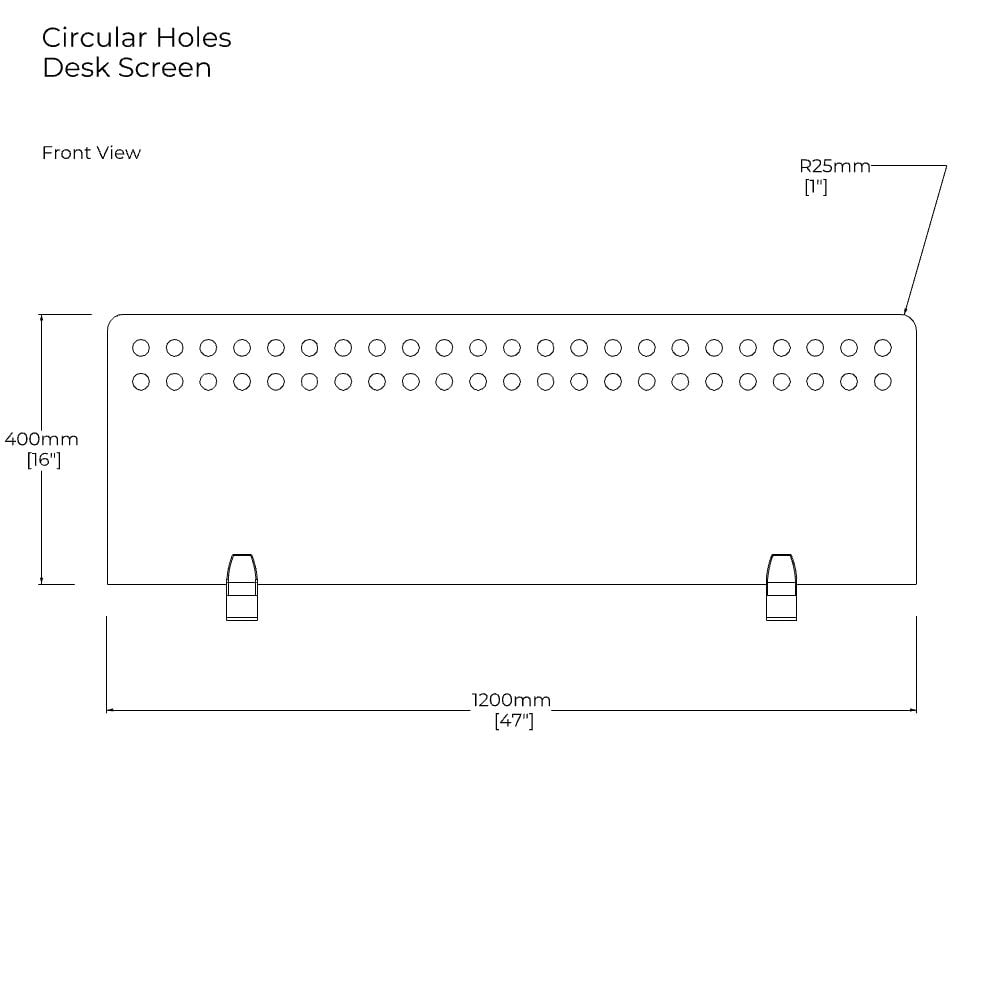

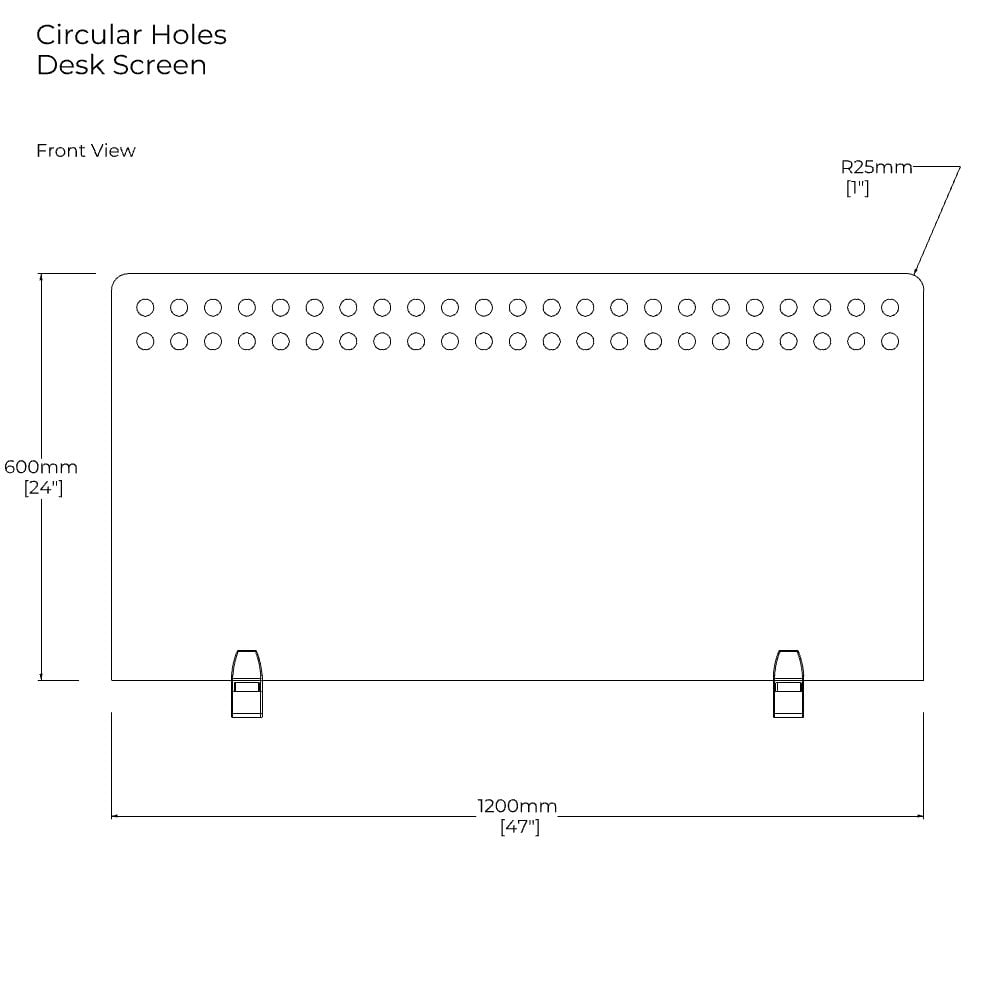

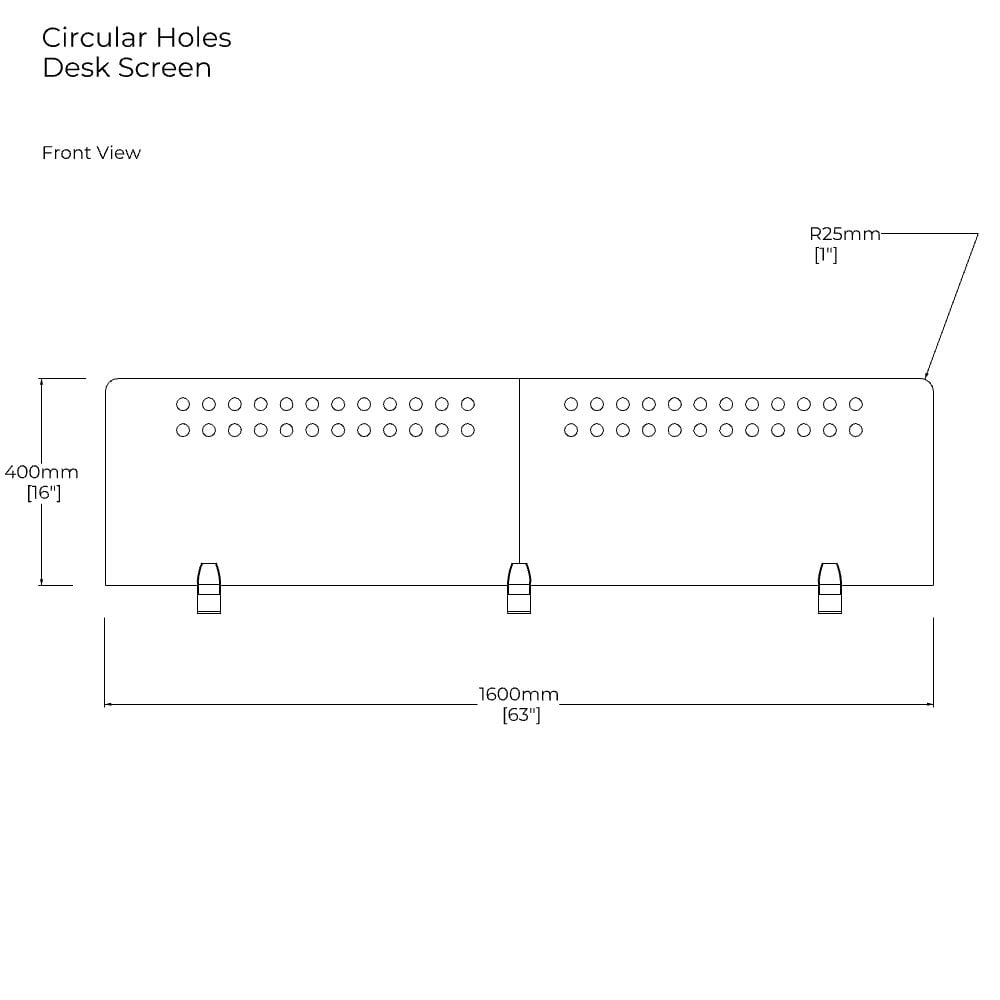

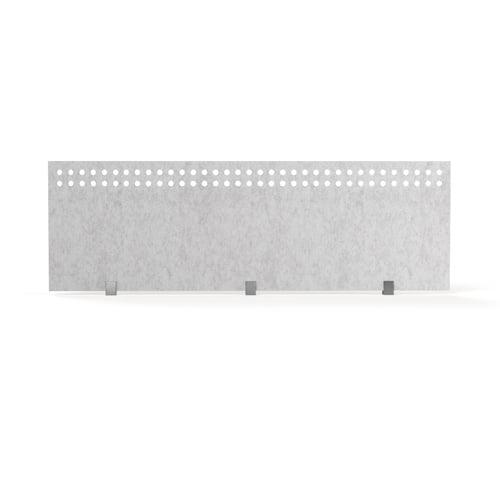

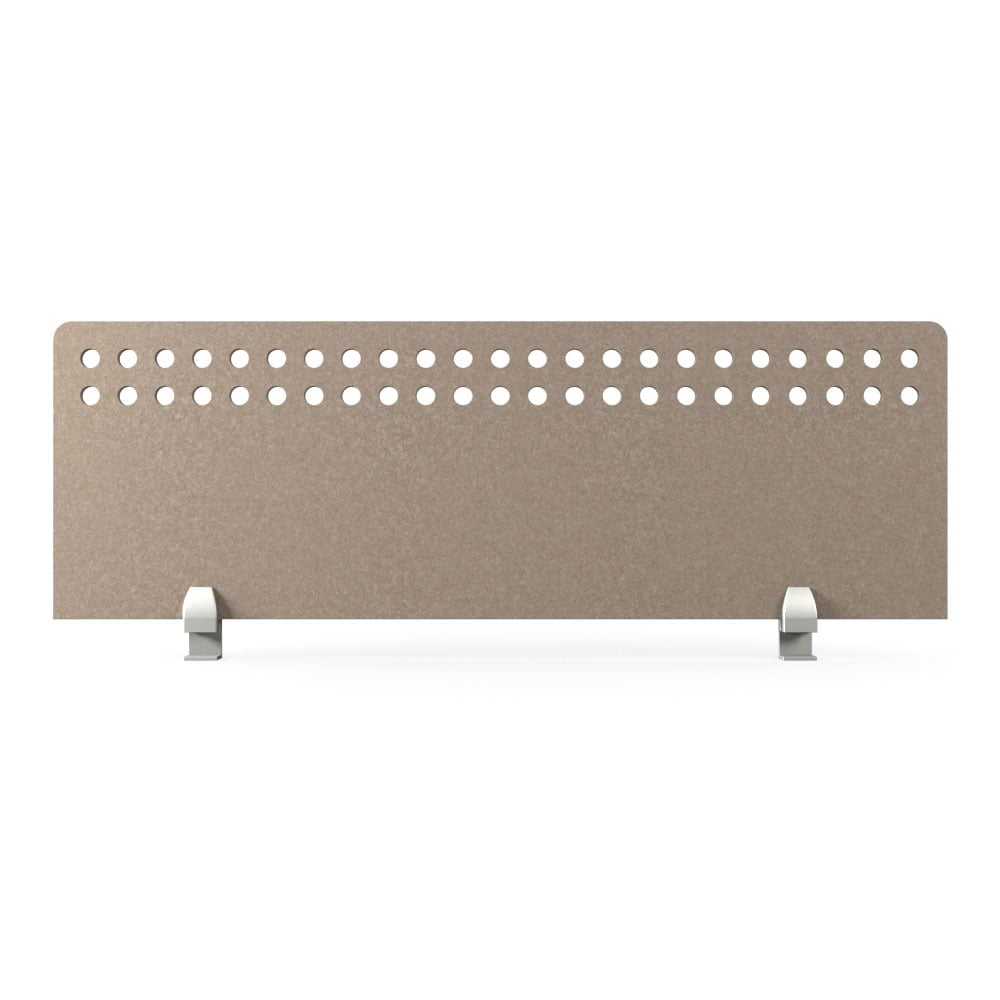

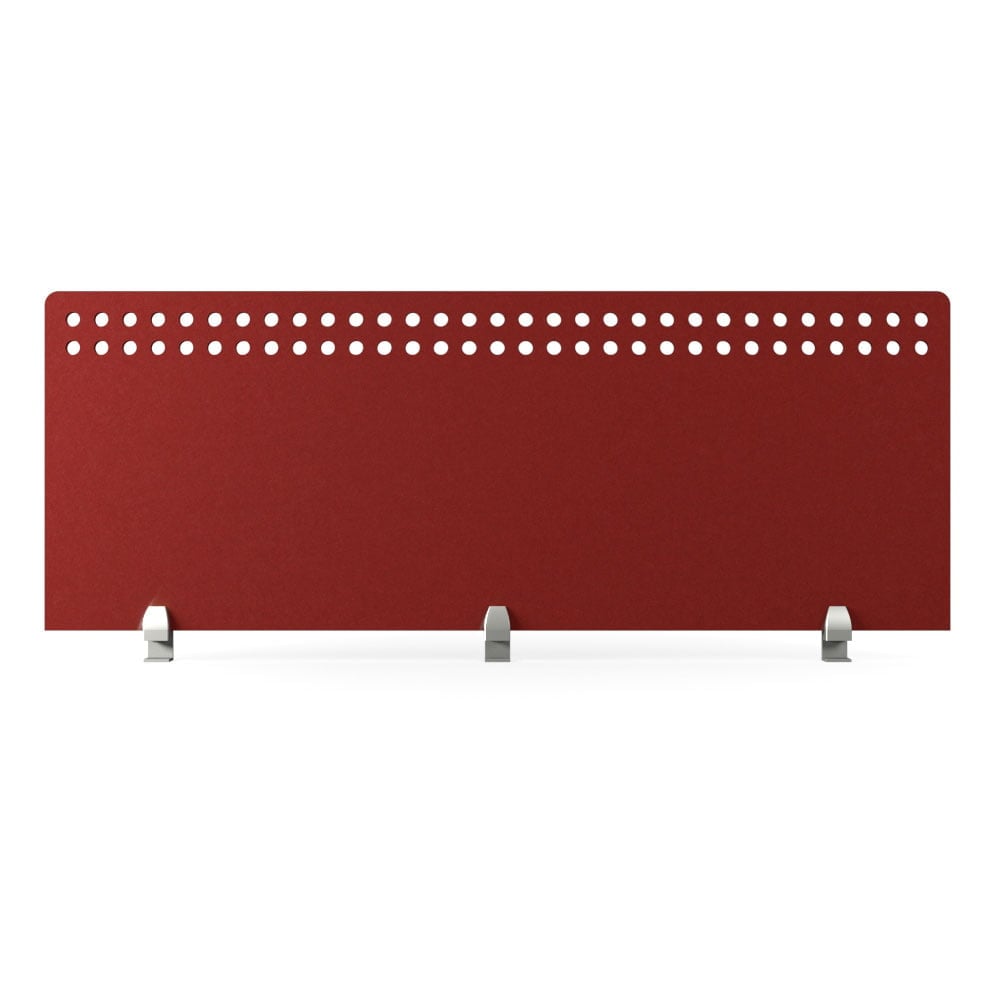

DESK SCREEN – CIRCULAR HOLES

DESK SCREEN – CAMELBACK

DESK SCREEN – SQUARE HOLES

RETURN SCREEN

STUDY CARREL – SQUARE CORNERS

STUDY CARREL – ROUND CORNERS

MODESTY PANEL – CRESCENT

MODESTY PANEL – ELLIPTICAL

MODESTY PANEL – SQUARE

MODESTY SCREEN – CRESCENT

MODESTY SCREEN – ELLIPTICAL

MODESTY SCREEN – SQUARE

Standard Sizes

DESK SCREENS –  STRAIGHT | CAMELBACK | ELLIPTICAL | SQUARE HOLES | CIRCULAR HOLES
WIDTH LENGTH THICKNESS LAYER COUNT MATERIAL THICKNESS
48" (1219mm) 12" (305mm) 3/4" (18mm) 2 3/8" (9mm)
54" (1372mm) 12" (305mm) 3/4" (18mm) 2 3/8" (9mm)
60" (1524mm) 12" (305mm) 3/4" (18mm) 2 3/8" (9mm)
66" (1676mm) 12" (305mm) 3/4" (18mm) 2 3/8" (9mm)
72" (1829mm) 12" (305mm) 3/4" (18mm) 2 3/8" (9mm)
48" (1219mm) 16" (406mm) 3/4" (18mm) 2 3/8" (9mm)
54" (1372mm) 16" (406mm) 3/4" (18mm) 2 3/8" (9mm)
60" (1524mm) 16" (406mm) 3/4" (18mm) 2 3/8" (9mm)
66" (1676mm) 16" (406mm) 3/4" (18mm) 2 3/8" (9mm)
72" (1829mm) 16" (406mm) 3/4" (18mm) 2 3/8" (9mm)
48" (1219mm) 24" (610mm) 3/4" (18mm) 2 3/8" (9mm)
54" (1372mm) 24" (610mm) 3/4" (18mm) 2 3/8" (9mm)
60" (1524mm) 24" (610mm) 3/4" (18mm) 2 3/8" (9mm)
66" (1676mm) 24" (610mm) 3/4" (18mm) 2 3/8" (9mm)
72" (1829mm) 24" (610mm) 3/4" (18mm) 2 3/8" (9mm)
48" (1219mm) 12" (305mm) 1/2" (12mm) 1 1/2" (12mm)
54" (1372mm) 12" (305mm) 1/2" (12mm) 1 1/2" (12mm)
60" (1524mm) 12" (305mm) 1/2" (12mm) 1 1/2" (12mm)
66" (1676mm) 12" (305mm) 1/2" (12mm) 1 1/2" (12mm)
72" (1829mm) 12" (305mm) 1/2" (12mm) 1 1/2" (12mm)
48" (1219mm) 16" (406mm) 1/2" (12mm) 1 1/2" (12mm)
54" (1372mm) 16" (406mm) 1/2" (12mm) 1 1/2" (12mm)
60" (1524mm) 16" (406mm) 1/2" (12mm) 1 1/2" (12mm)
66" (1676mm) 16" (406mm) 1/2" (12mm) 1 1/2" (12mm)
72" (1829mm) 16" (406mm) 1/2" (12mm) 1 1/2" (12mm)
48" (1219mm) 24" (610mm) 1/2" (12mm) 1 1/2" (12mm)
54" (1372mm) 24" (610mm) 1/2" (12mm) 1 1/2" (12mm)
60" (1524mm) 24" (610mm) 1/2" (12mm) 1 1/2" (12mm)
66" (1676mm) 24" (610mm) 1/2" (12mm) 1 1/2" (12mm)
72" (1829mm) 24" (610mm) 1/2" (12mm) 1 1/2" (12mm)
MODESTY SCREEN – RECTANGULAR | CRESCENT | ELLIPTICAL
WIDTH LENGTH THICKNESS LAYER COUNT MATERIAL THICKNESS
48" (1219mm) 40" (1219mm) 3/4" (18mm) 2 3/8" (9mm)
54" (1372mm) 40" (1219mm) 3/4" (18mm) 2 3/8" (9mm)
60" (1524mm) 40" (1219mm) 3/4" (18mm) 2 3/8" (9mm)
66" (1676mm) 40" (1219mm) 3/4" (18mm) 2 3/8" (9mm)
72" (1829mm) 40" (1219mm) 3/4" (18mm) 2 3/8" (9mm)
MODESTY PANEL – RECTANGULAR | CRESCENT | ELLIPTICAL
WIDTH LENGTH THICKNESS LAYER COUNT MATERIAL THICKNESS
48" (1219mm) 24" (610mm) 3/8" (9mm) 1 3/8" (9mm)
54" (1372mm) 24" (610mm) 3/8" (9mm) 1 3/8" (9mm)
60" (1524mm) 24" (610mm) 3/8" (9mm) 1 3/8" (9mm)
66" (1676mm) 24" (610mm) 3/8" (9mm) 1 3/8" (9mm)
72" (1829mm) 24" (610mm) 3/8" (9mm) 1 3/8" (9mm)
STUDY CARRELS – ROUND EDGES | SQUARE EDGES
WIDTH LENGTH DEPTH SIDE THICKNESS BACK THICKNESS
48" (1219mm) 24" (610mm) 24" (610mm) 3/8" (9mm) 3/4" (18mm)
60" (1524mm) 24" (610mm) 24" (610mm) 3/8" (9mm) 3/4" (18mm)
72" (1829mm) 24" (610mm) 24" (610mm) 3/8" (9mm) 3/4" (18mm)
RETURN SCREEN – QUARTER ROUND
WIDTH LENGTH THICKNESS
24" (610mm) 16" (406mm) 3/8" (9mm)
30" (762mm) 16" (406mm) 3/8" (9mm)
24" (610mm) 24" (610mm) 3/4" (18mm)
30" (762mm) 24" (610mm) 3/4" (18mm)

Specifications

  • Available in 30 standard colors
  • 3/4″ (18mm) and 1/2″ (9mm) thick
  • Fully tackable surface
  • Made from 100% polyester, approximately 50% of which is recycled water/soda bottles
  • Manufactured without use of formaldehydes, adhesives or other bonding agents
  • No volatile organic compounds (VOCs)
  • Flame spread and smoke development test data available: ASTM E84 (Class A or Class 1) CAN/ULC S102 (FSR:20, SDC:325), EN ISO 13501-1 (b-s1, d0). EN ISO 11925-2 and EN 13823 compliant

Sound Absorption Performance

SAMPLE DESCRIPTION: Ezobord D50 Mount Wall Panel 3/8" (9mm) | NRC: 0.75 | SAA: 0.76801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)

FREQUENCY (HZ) ABSORPTION COEFFICIENT
80 0.06
100 0.12
125 0.08
160 0.19
200 0.22
250 0.33
315 0.44
400 0.58
500 0.71
630 0.81
800 0.91
1000 1
1250 1.04
1600 1.06
2000 1.03
2500 0.99
3150 0.87
4000 0.93
5000 0.98

SAMPLE DESCRIPTION: Ezobord Direct Mount Wall Panel 3/8" (9mm) | NRC: 0.31 | SAA: 0.30801001251602002503154005006308001000125016002000250031504000500001Frequency (Hz)Absorption Coefficients (ASTM C423-17)

FREQUENCY (HZ) ABSORPTION COEFFICIENT
80 -0.02
100 0
125 0.16
160 0.09
200 0.04
250 0.06
315 0.08
400 0.1
500 0.17
630 0.22
800 0.29
1000 0.4
1250 0.47
1600 0.56
2000 0.62
2500 0.67
3150 0.73
4000 0.79
5000 0.86

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
